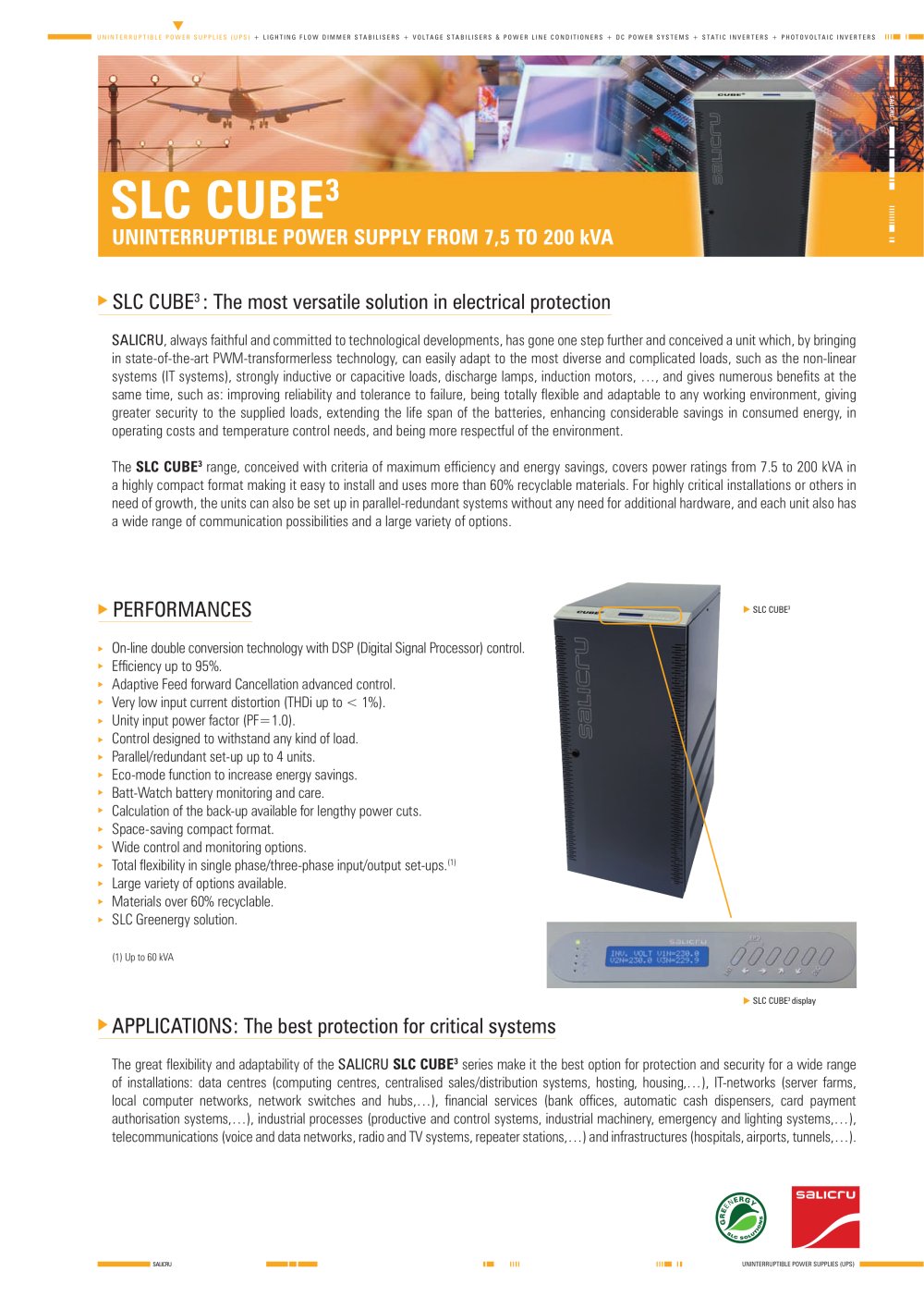

Brochure SLC CUBE3

Product catalog summary

Overview: The document provides a detailed description of the SLC CUBE3 series of Uninterruptible Power Supplies (UPS) by SALICRU. These units are designed with advanced PWM-transformerless technology to handle diverse and complex loads, offering benefits such as improved reliability, energy savings, and environmental friendliness.

Specifications: The SLC CUBE3 series covers power ratings from 7.5 to 200 kVA. It features on-line double conversion technology with DSP control, efficiency up to 95%, and very low input current distortion (THDi up to <1%). The units have a unity input power factor and are designed to withstand various load types. They can be set up in parallel-redundant systems and offer eco-mode for increased energy savings.

Applications: These UPS systems are suitable for critical installations such as data centers, IT networks, financial services, industrial processes, telecommunications, and infrastructure facilities like hospitals and airports.

Performance: The SLC CUBE3 series offers high efficiency (>95%) and a wide range of communication options, including RS-232/485 ports, MODBUS/SEC protocol, and Ethernet/SNMP adapters. It also includes features like Batt-Watch battery monitoring, space-saving design, and a variety of options for customization.

Technical Specifications: The UPS units support single-phase and three-phase inputs and outputs, with a nominal voltage range and frequency of 50/60 Hz. They have a high power factor (>0.99) and low total harmonic distortion (THDv). The systems are equipped with solid-state static bypass and manual bypass options, and they use lead-acid, sealed, maintenance-free batteries.

Standards and Compliance: The SLC CUBE3 series complies with safety standards EN-62040-1-2 and EN-60950-1, electromagnetic compatibility standard EN-62040-2, and operating standard VFI-SS-111 according to EN-62040-3. The units are CE marked and adhere to ISO 9001 and ISO 14001 quality and environmental management standards.

Service and Support: SALICRU offers comprehensive service and technical support, including advisory services, start-up assistance, technical support, preventive and corrective maintenance, telemaintenance contracts, and training courses.
