Product catalog summary
Features and Benefits
  • Resistant to highly aggressive chemicals.
  • Meets USP Class VI criteria.
  • Low sorption maintains fluid integrity.
Product Overview

Tygon® 2075 Ultra Chemical Resistant Tubing offers a unique combination of chemical resistance, clarity, and flexibility. It is unaffected by acids, bases, ketones, salts, and alcohols, making it suitable for applications ranging from battery acid filling to hazardous material handling. The tubing is plasticizer-free, preventing fluid contamination and premature embrittlement. Its smooth inner surface inhibits particulate buildup, reducing contamination risks.

Specifications
  • Hardness: Shore A, 15 sec - 72
  • Tensile Strength: 2000 psi (13.8 MPa)
  • Ultimate Elongation: 700%
  • Tear Resistance: 220 lb.-f/in (39 kN/m)
  • Specific Gravity: 0.9
  • Water Absorption: <0.01% (24 hrs @23°C)
  • Compression Set: 84% (at 70°C during 22 hours)
  • Brittle Temperature: -78°C
  • Maximum Operating Temperature: 52°C
  • Dielectric Strength: 23.1 kV/mm
  • Tensile Modulus @100% Elongation: 350 psi (2.4 MPa)
  • Tensile Set: 187%
  • Low Temperature Flexibility: -70°C
Sterilization Methods
  • Autoclavable: Yes (Steam 30 minutes at 1 bar, 141°C)
  • Gas: Ethylene oxide
  • Radiation: Up to 2.5 MRad
Important Notes

Users must ensure the suitability and safety of the tubing for all intended uses. Laboratory and clinical tests should be conducted according to regulatory requirements to determine safety and effectiveness. Saint-Gobain Performance Plastics Corporation provides a warranty for six months from the date of first sale, covering defects in materials and workmanship. The company assumes no liability for advice furnished or results obtained with respect to the products.

See more

Catalog excerpts

Saint-Gobain Performance Plastics - Tygon® Ultra-chemical resistant-1

Tygonή Ultra Chemical ResistantTubing offers an unequaled combination of chemicalresistance,clarity and flexibility.Tygon 2075 is virtually unaffected by acids,bases,ketones,salts and alcohols,fitting the requirements of many applications from battery acid filling to hazardous material handling.It's entirely plasticizer-free,eliminating fluid contamination and the premature embrittlementand cracking common with many flexible tubings.Itsexceptionally smooth inner surface inhibits particulate buildup and reduces the potential forcontamination. Ε Resistantto highly aggressive chemicals Meets USP Class VI criteria Օ Low sorption maintains fluidintegrity > Le Tygon 2075 offre une combinaison in鮩gale de rsistance chimique,de transparence etde souplesse.Recommand驩 dans de nombreuses applications,du remplissage des batteries lacide jusquҒla manipulation de produits dangereux.Il conserve son intgrit੩ aux acides,bases,ctones,(Mthyl-Ethyl-C驩tone) sels etalcools. Grce sa surface int⠩rieure lisse (proche du verre) qui vite les dp驴ts de particules,le Tygon2075,sans plastifiant,Ωlimine toutrisque de contamination. Rթsiste aux produits chimiquesles plus agressifs Conforme aux critըres USPClasse VI La faible sorption prթservel'intgrit du fluide > Tygon 2075 Schl쮤uche bieten eine einzigartige Kombination aus chemischer Bestndigkeit, Transparenz und Biegsamkeit.Sie eignen sich fr zahlreiche Anwendungen von der Bef似llung von Surebatterien bis hin zumTransportvon Gefahrgtern und sind dabei gegen似ber Suren,Laugen,Ketonen (Methylethylketon),Salzen und Alkoholen bestndig.Die besonders glatte Innenwand verhindertdie Ablagerung von Partikeln und schlie䤟tdamitdas Risiko von Verunreinigungen aus. Bestդndig gegen stark tzendeChemikalien Erf䕼lltdie Anforderungen der US- Pharmakopia Klasse VI Aufgrund geringer Aufnahmefդhigkeit bleibtdie Flssigkeitunverndert >

 Open the catalog to page 1

All Saint-Gobain Performance Plastics - Process System catalogs and technical brochures

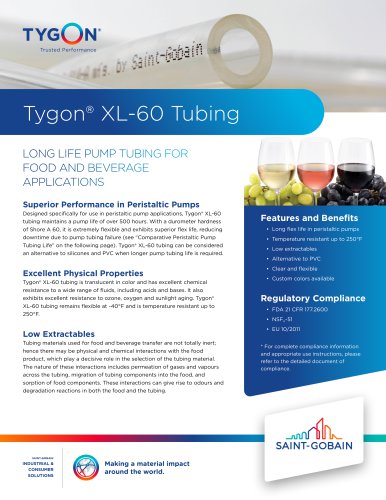

  1. Tygon® XL-60
