TB2-M

Product catalog summary

Introduction
This document provides comprehensive technical specifications and operational guidelines for pressure groups equipped with horizontal electric pumps. These systems are specifically designed for water pressurization and distribution across civil, agricultural, and industrial installations.

Applications
The systems are utilized in heating, cooling, air-conditioning, and irrigation systems. They operate in a sequential cascade to accommodate increasing water demand, ensuring continuous operation even if one pump fails.

Specifications

Fluid Compatibility: Suitable for non-aggressive fluids both chemically and mechanically.
Temperature Range: Operates with pumped liquids between -15°C and 50°C.
Maximum Operating Pressure: 8 bar.
Maximum Starts per Hour: 20.
Installation Conditions: Indoor installation with ambient temperatures from 0°C to 40°C, humidity up to 50%, and altitude up to 1000 meters.
Noise Level: Maximum 81 dBA.
Performance: At 2900 rpm, maximum flow (Qmax) is 20, and maximum head (Hmax) is 92 m (Q=0).

Performance Tolerances
The pumps comply with UNI EN ISO 9906 Appendix A, and motors comply with IEC 60034-1 standards.

Group Composition
The system includes two self-priming centrifugal electric pumps, a base with adjustable anti-vibration feet, a control panel, suction and delivery manifolds, pressure switches, gate valves, check valves, and other components.

Pump Features
The pumps are self-priming with a cast iron body, brass or thermoplastic resin impeller, and a mechanical seal in carbon/ceramic. They feature a totally enclosed fan-cooled motor, protection class IP44 (IP55 available on request), and insulation class F.

Control Panel Features
The electro-mechanical control panel supports both three-phase and single-phase power supplies, with protective and operational components such as magnetothermal switches, relays, transformers, and pilot lamps.

Optional Accessories
Accessories include diaphragm tanks, float switches, minimum pressure switches, and level relays with water shortage signals.

Special Versions
Special versions with electronic control panels are available upon request.

Materials and Components
The document details materials used in the hydraulic system, including galvanized and stainless steel (AISI304) and nickel-plated brass for various components like control panel columns, manifolds, and valves.

Hydraulic Features
Hydraulic characteristics for different pump models (TB2-M series) are provided, including performance curves and dimensions, based on a kinematic viscosity of 1 mm²/s and a density of 1000 kg/m³.

Dimensions and Weights
Standard dimensions and weights for various pump models are provided, with optional configurations for check valves and control boxes.

Performance Curves
Performance curves for pumps running individually and in pairs are included, with specifications for different models. The curves are based on standard conditions and include a safety factor for NPSH.

Operating Conditions
The system is designed for non-aggressive fluids, with a liquid temperature range of -15°C to 50°C and a maximum operating pressure of 7 bar. It should be installed indoors, with ambient temperatures between 0°C and 40°C, and a maximum altitude of 1000 meters.

Electrical and Mechanical Features
The system includes two self-priming centrifugal pumps, a cataphoresis-coated base with adjustable feet, an electrical control panel, and various valves and fittings. The pumps are made from stainless steel (AISI304) with optional thermoplastic or stainless steel impellers.

Control Panel Features
The electromechanical control panel is designed for two-pump pressurization systems, with options for direct start or star-delta configurations. It includes protective switches, alternation relays, and a transformer for auxiliary services.

Procedures
The operation is described as a sequential cascade following increased water demand, with automatic alternation between the main and secondary pumps. In case of a pump failure, the second pump ensures continued operation.

Recommendations
Optional accessories such as diaphragm tanks, float switches, and pressure switches are recommended for enhanced functionality. Special versions with electronic control panels are available upon request.

Catalog excerpts

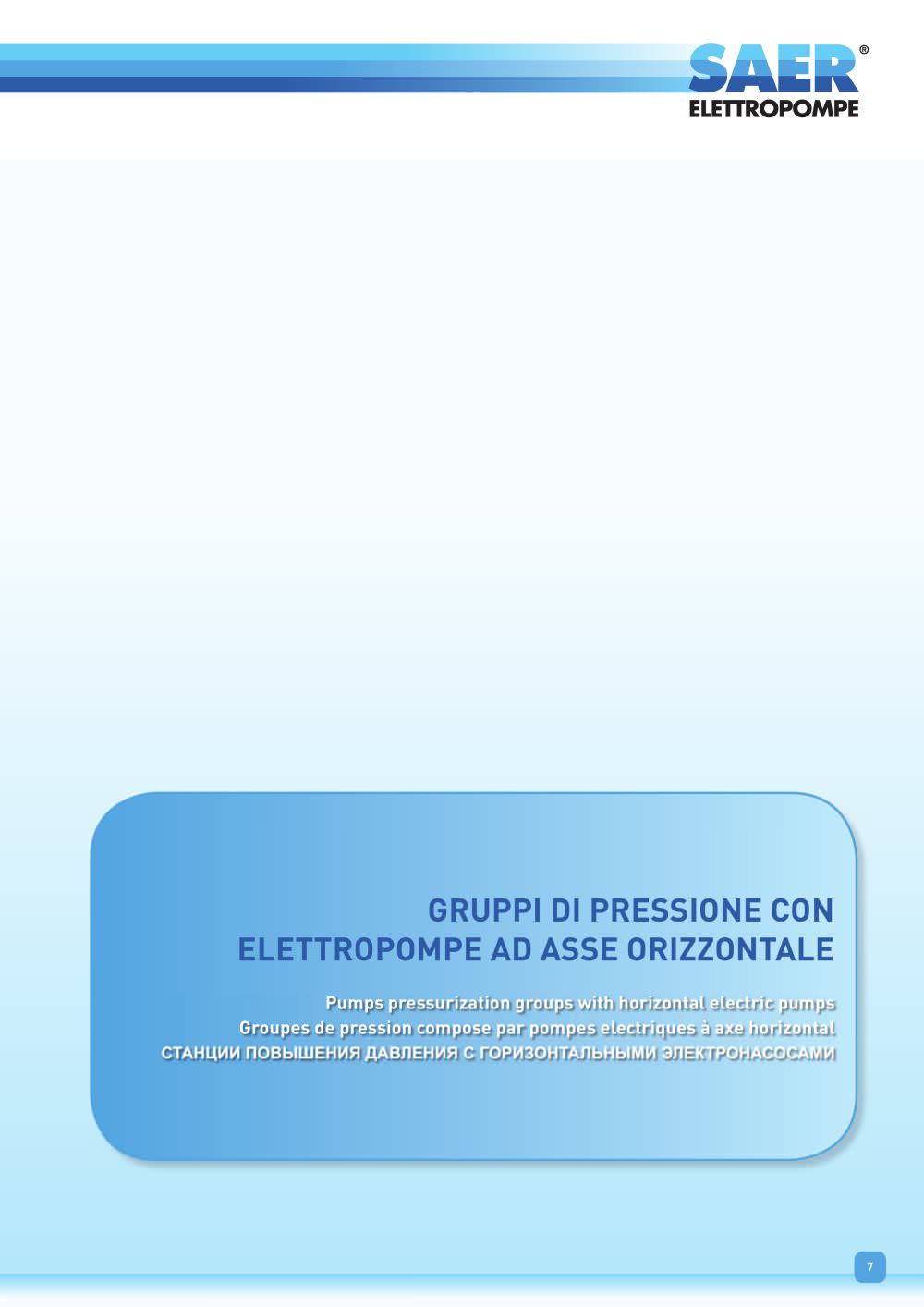

GRUPPI DI PRESSIONE CON ELETTROPOMPE AD ASSE ORIZZONTALE 7 Pumps pressurization groups with horizontal electric pumps Groupes de pression compose par pompes electriques à axe horizontal !"#$%% &'()*+#%, -"(.+#%, /'0%1'#!".2#)3% 4.+5!0'#" ' "3%

Open the catalog to page 1

8 IMPIEGHI Pressurizzazione e distribuzione di acqua in impianti civili, agricoli ed industriali, impianti di riscaldamento, raffreddamento, condizionamento e sistemi di irrigazione. FUNZIONAMENTO: in cascata sequenziale al crescere della domanda d’acqua. Ad ogni avvio, vengono alternate automaticamente pompa principale e pompa secondaria. Nel caso di avaria di una pompa è comunque garantito il funzionamento della seconda. DATI CARATTERISTICI – VERSIONI STANDARD Fluido: chimicamente e meccanicamente non aggressivo. Temperatura del liquido pompato: min -15°C max 50°C Pressione massima d’esercizio...

Open the catalog to page 2

9 UTILISATIONS Pressurisation et distribution d’eau dans installations civiles, agricoles, industrielles, installations de chauffage, refroidissement, climatisation et systèmes d’irrigation. FONCTIONNEMENT: en cascade séquentielle quand la demande d’eau augmente. À chaque démarrage, la pompe principale et la pompe secondaire s’alternent. En cas de panne d’une pompe le fonctionnement de la deuxième pompe est quand même garanti. DONNEES CARACTERISTIQUES – VERSIONI STANDARD Fluide: chimiquement et mécaniquement pas agressif Température du liquide pompé: min -15°C max 50°C Pression maximale d’ exercice...

Open the catalog to page 3

10 Componente Component Composants Êîìïîíåíò Versione Version Version Èñïîëíåíèå Standard - Ñòàíäàðòíîå TB-I TB-X 1 Pompa Pump Pompe Íàñîñ M 2 Basamento Base Châssis Ïëèòà Acciaio rivestito in cataforesi Steel coated in cataphoresis Acier traité avec cataphoresis Ñòàëü ñ ïîêðûòèåì èç êàòàôîðåçà 3 Quadro elettrico Control panel Coffret Ýëåêòðè÷åñêèé ïóëüò Cassa metallica IP54 / Cassa in PVC IP54 IP54 box in epoxy painted sheet / IP 54 box in PVC Caisse métallique IP54 / Caisse en PVC IP54 Ìåòàëëè÷åñêåñêàÿ êîðîáêà IP54 / Êîðîáêà èç ÏÂÕ 4 Colonna porta quadro Column for control panel Colonne pour...

Open the catalog to page 4

12 CARATTERISTICHE IDRAULICHE HYDRAULIC FEATURES CARACTERISTIQUES HYDRAULIQUES Ãèäðàâëè÷åñêèå õàðàêòåðèñòèêè TB2-M Caratteristiche idrauliche con due pompe in funzionamento • Hydraulic features with two pumps working • Caractéristiques hydrauliques avec deux pompes en marche • Ãèäðàâëè÷åñêèå õàðàêòåðèñòèêè ñ äâóìÿ ðàáî÷èìè íàñîñàìè DIMENSIONI E PESI – VERSIONI STANDARD DIMENSIONS AND WEIGHT – STANDARD VERSIONS DIMENSIONS ET POIDS – VERSION STANDARD ÐÀÇÌÅÐÛ È ÂÅÑ – ÈÑÏÎËÍÅÍÈÅ ÑÒÀÍÄÀÐÒÍÎÅ Tipo Type Òèï Pompe Pumps Pompes Íàñîñû P2 230V 400V USgpm 0 5,2 13,2 17,6 21 23,6 26,4 1~ 3~ Q m3/h 0 1,2...

Open the catalog to page 6

13 CURVE CARATTERISTICHE PERFORMANCES CURVES COURBES DE PERFORMANCES ÊÐÈÂÛÅ ÕÀÐÀÊÒÅÐÈÑÒÈÊ TB2-M50/60/70/80 Prestazioni con una pompa in funzionamento Performances with one pump running Performances avec un pompe en marche Ïàðàìåòðû ñ îäíèì ðàáî÷èì íàñîñîì Prestazioni con due pompe in funzionamento Performances with two pumps running Performances avec deux pompes en marche Ïàðàìåòðû ñ äâóìÿ ðàáî÷èìè íàñîñàìè Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s e densità pari a 1000 kg/m3. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves...

Open the catalog to page 7

15 CURVE CARATTERISTICHE PERFORMANCES CURVES COURBES DE PERFORMANCES ÊÐÈÂÛÅ ÕÀÐÀÊÒÅÐÈÑÒÈÊ TB2-M300 Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s e densità pari a 1000 kg/m3. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves are based on the kinematic viscosity values = 1 mm2 /s and density equal to 1000 kg/m3 . Tolerance and curves according to UNI EN ISO 9906 - Attachment A. For NPSH, consider a safety factor of 0,5 m • Les courbes de performances sont basées sur des valeurs de viscosité cinématique égale à 1 mm2/s, une densité...

Open the catalog to page 9
