NCB - 6NCBZ 4P

Product catalog summary

Overview

This technical document presents detailed performance data for hydraulic pumps of types 6IR4P, 6NCBZ4P, and NCB, covering a wide range of pump sizes operating at 1800 rpm. It serves as a comprehensive reference for pump selection and performance evaluation under standardized conditions.

Standardized Test Conditions and Compliance

Kinematic viscosity fixed at 1 mm²/s
Fluid density set at 1000 kg/m³
Water temperature maintained at 15°C
Hydraulic components manufactured from standard materials
Performance curves and tolerances conform to UNI EN ISO 9906 – Appendix A, ensuring standardized testing and reliable data accuracy

Key Parameters and Definitions

P: Absorbed power by the pump, indicating energy consumption
η: Hydraulic efficiency of the pump, reflecting performance effectiveness

Pump Types and Sizes Covered

The document includes performance data tables for numerous pump sizes ranging approximately from 32-125 up to 150-400, with various subtypes indicated by suffixes such as A, B, C, and N. Examples include:

32-125, 32-160, 32-200N, 32-250
40-125, 40-160N, 40-200, 40-250N, 40-315
50-125, 50-160, 50-160N, 50-200, 50-200N, 50-250N
100-250, 100-315, 100-400N
125-250, 125-315, 125-400
150-315, 150-400

Each size and subtype is linked to specific performance tables (e.g., TAB. 03368 to TAB. 03415) detailing operational characteristics.

Performance Curves and Data Presentation

For each pump model and size, performance curves illustrate the relationship between absorbed power and hydraulic efficiency at the standardized operating conditions. These curves facilitate informed pump selection based on energy consumption and efficiency requirements.

Critical Information and Recommendations

Performance data validity depends on adherence to the specified standard conditions (viscosity, density, temperature, and material composition).
UNI EN ISO 9906 – Appendix A defines tolerance limits and testing methodologies, ensuring data reliability.
Use the provided efficiency values to estimate energy consumption and optimize system performance.
Consult the specific performance tables for detailed data corresponding to each pump size and type.

Multilingual Presentation

The document is presented in Italian, English, and Spanish, supporting international usability and comprehension.

Summary

This document is a vital technical resource for hydraulic pump performance evaluation, emphasizing compliance with international standards and providing essential parameters such as absorbed power and efficiency. It supports engineers and designers in selecting appropriate pump models and verifying operational performance within hydraulic systems.

Catalog excerpts

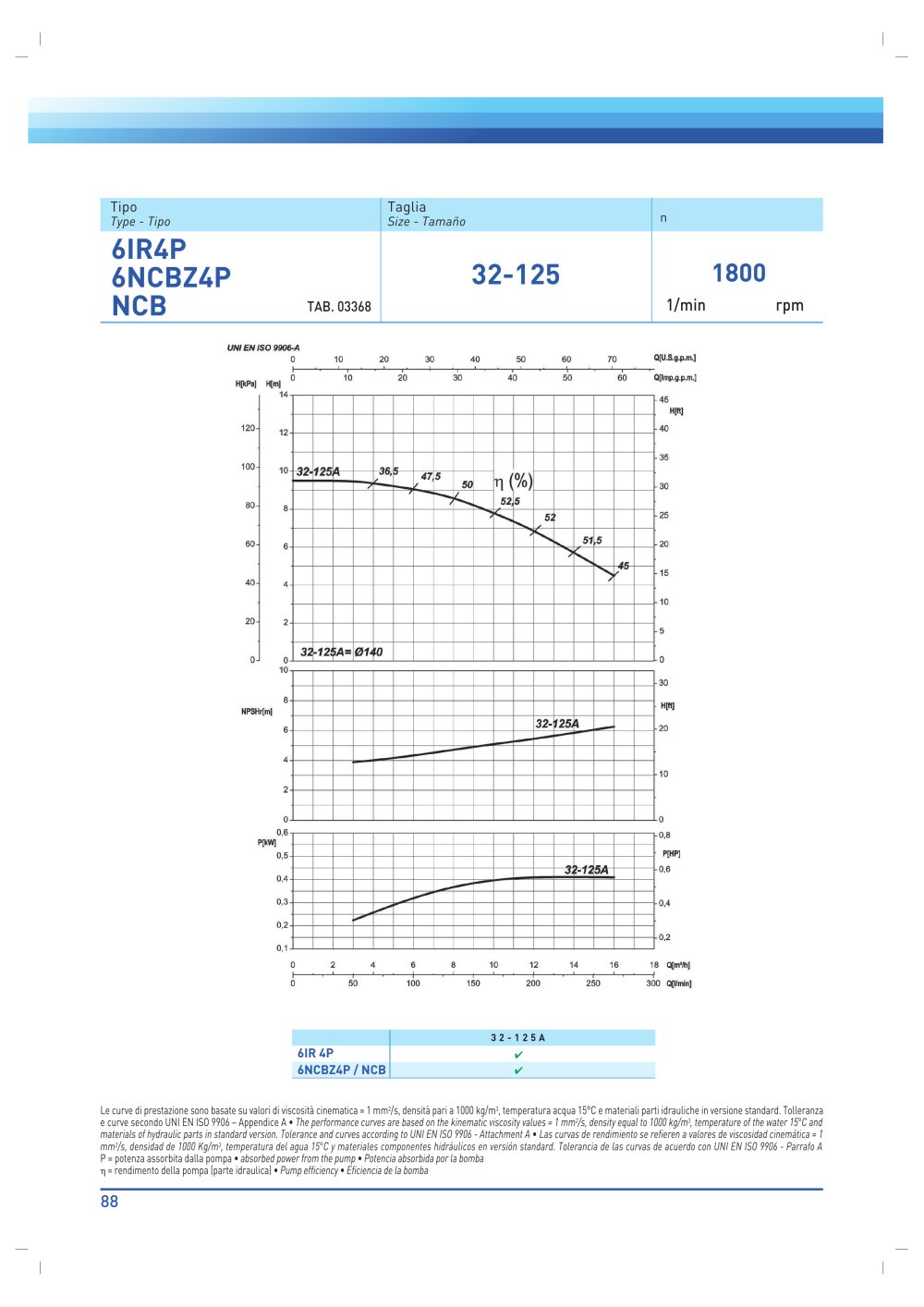

88 1/min rpm 6IR4P 6NCBZ4P NCB Tipo Type - Tipo 32-125 Taglia Size - Tamaño 1800 n TAB. 03368 Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s, densità pari a 1000 kg/m3, temperatura acqua 15°C e materiali parti idrauliche in versione standard. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves are based on the kinematic viscosity values = 1 mm2/s, density equal to 1000 kg/m3, temperature of the water 15°C and materials of hydraulic parts in standard version. Tolerance and curves according to UNI EN ISO 9906 - Attachment A • Las curvas de rendimiento se refieren a valores de viscosidad cinemática = 1 mm2/s, densidad de 1000 Kg/m3, temperatura del agua 15°C y materiales componentes hidráulicos en versión standard. Tolerancia de las curvas de acuerdo con UNI EN ISO 9906 - Parrafo A P = potenza assorbita dalla pompa • absorbed power from the pump • Potencia absorbida por la bomba = rendimento della pompa (parte idraulica) • Pump efficiency • Eficiencia de la bomba 6IR 4P 6NCBZ4P / NCB 3 2 - 1 2 5 A
