SAER
6MG1 - 6MG2

6MG1 - 6MG2

Product catalog summary

Performance Curves Overview
The document provides performance curves for various hydraulic pump models. These curves are based on a kinematic viscosity of 1 mm²/s, a density of 1000 kg/m³, and a water temperature of 15°C. The materials used in the hydraulic parts are in their standard version. The performance data adheres to the UNI EN ISO 9906 standard, specifically Appendix A.

Specifications

Models: 6IR, 6MG, 6NCBZ, NCB
Sizes: Ranges from 32-200N to 80-160F
Operating Speed: 3600 rpm

Key Parameters

Absorbed Power (P): The power absorbed by the pump during operation.
Pump Efficiency (η): Efficiency of the hydraulic part of the pump.

Model Specifics

32-200N, 32-250, 40-160N, 40-200N, 40-250N, 50-160, 50-160N, 50-200, 50-250N, 65-160, 80-160: Each model has specific performance characteristics and efficiency ratings.

Standards and Tolerances
The performance curves and tolerances are in accordance with UNI EN ISO 9906, ensuring reliability and consistency in pump performance measurements.

Catalog excerpts

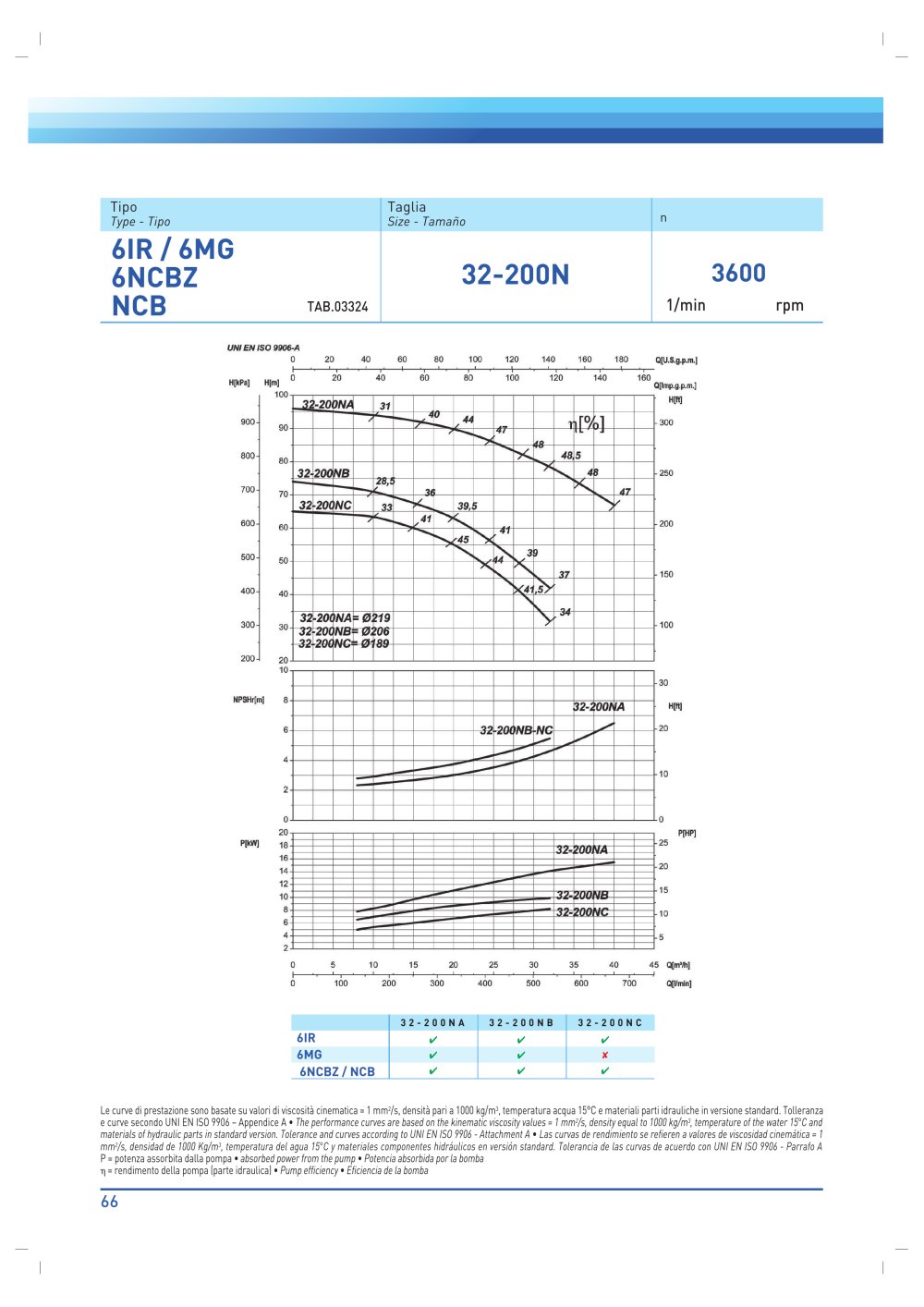

66 1/min rpm 6IR / 6MG 6NCBZ NCB Tipo Type - Tipo 32-200N Taglia Size - Tamaño 3600 n TAB.03324 Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s, densità pari a 1000 kg/m3, temperatura acqua 15°C e materiali parti idrauliche in versione standard. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves are based on the kinematic viscosity values = 1 mm2/s, density equal to 1000 kg/m3, temperature of the water 15°C and materials of hydraulic parts in standard version. Tolerance and curves according to UNI EN ISO 9906 - Attachment A • Las curvas de rendimiento se refieren a valores de viscosidad cinemática = 1 mm2/s, densidad de 1000 Kg/m3, temperatura del agua 15°C y materiales componentes hidráulicos en versión standard. Tolerancia de las curvas de acuerdo con UNI EN ISO 9906 - Parrafo A P = potenza assorbita dalla pompa • absorbed power from the pump • Potencia absorbida por la bomba = rendimento della pompa (parte idraulica) • Pump efficiency • Eficiencia de la bomba 6IR 6MG 6NCBZ / NCB 3 2 - 2 0 0 N A 3 2 - 2 0 0 N B 3 2 - 2 0 0 N C

Open the catalog to page 1

67 1/min rpm 6IR / 6MG 6NCBZ NCB Tipo Type - Tipo 32-250 Taglia Size - Tamaño 3600 n TAB. 03327 Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s, densità pari a 1000 kg/m3, temperatura acqua 15°C e materiali parti idrauliche in versione standard. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves are based on the kinematic viscosity values = 1 mm2/s, density equal to 1000 kg/m3, temperature of the water 15°C and materials of hydraulic parts in standard version. Tolerance and curves according to UNI EN ISO 9906 - Attachment A • Las...

Open the catalog to page 2

69 1/min rpm 6IR / 6MG 6NCBZ NCB Tipo Type - Tipo 40-160N Taglia Size - Tamaño 3600 n TAB. 03329 Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s, densità pari a 1000 kg/m3, temperatura acqua 15°C e materiali parti idrauliche in versione standard. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves are based on the kinematic viscosity values = 1 mm2/s, density equal to 1000 kg/m3, temperature of the water 15°C and materials of hydraulic parts in standard version. Tolerance and curves according to UNI EN ISO 9906 - Attachment A • Las...

Open the catalog to page 3

70 1/min rpm 6IR / 6MG 6NCBZ NCB Tipo Type - Tipo 40-200N Taglia Size - Tamaño 3600 n TAB.03330 Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s, densità pari a 1000 kg/m3, temperatura acqua 15°C e materiali parti idrauliche in versione standard. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves are based on the kinematic viscosity values = 1 mm2/s, density equal to 1000 kg/m3, temperature of the water 15°C and materials of hydraulic parts in standard version. Tolerance and curves according to UNI EN ISO 9906 - Attachment A • Las...

Open the catalog to page 4

71 1/min rpm 6IR / 6MG 6NCBZ NCB Tipo Type - Tipo 40-250N Taglia Size - Tamaño 3600 n TAB.03331 Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s, densità pari a 1000 kg/m3, temperatura acqua 15°C e materiali parti idrauliche in versione standard. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves are based on the kinematic viscosity values = 1 mm2/s, density equal to 1000 kg/m3, temperature of the water 15°C and materials of hydraulic parts in standard version. Tolerance and curves according to UNI EN ISO 9906 - Attachment A • Las...

Open the catalog to page 5

73 1/min rpm 6IR / 6MG 6NCBZ NCB Tipo Type - Tipo 50-160 Taglia Size - Tamaño 3600 n TAB.03333 Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s, densità pari a 1000 kg/m3, temperatura acqua 15°C e materiali parti idrauliche in versione standard. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves are based on the kinematic viscosity values = 1 mm2/s, density equal to 1000 kg/m3, temperature of the water 15°C and materials of hydraulic parts in standard version. Tolerance and curves according to UNI EN ISO 9906 - Attachment A • Las curvas...

Open the catalog to page 6

74 1/min rpm 6IR / 6MG 6NCBZ NCB Tipo Type - Tipo 50-160N Taglia Size - Tamaño 3600 n TAB. 03334 Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s, densità pari a 1000 kg/m3, temperatura acqua 15°C e materiali parti idrauliche in versione standard. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves are based on the kinematic viscosity values = 1 mm2/s, density equal to 1000 kg/m3, temperature of the water 15°C and materials of hydraulic parts in standard version. Tolerance and curves according to UNI EN ISO 9906 - Attachment A • Las...

Open the catalog to page 7

75 1/min rpm 6IR / 6MG 6NCBZ NCB Tipo Type - Tipo 50-200 Taglia Size - Tamaño 3600 n TAB. 03335 Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s, densità pari a 1000 kg/m3, temperatura acqua 15°C e materiali parti idrauliche in versione standard. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves are based on the kinematic viscosity values = 1 mm2/s, density equal to 1000 kg/m3, temperature of the water 15°C and materials of hydraulic parts in standard version. Tolerance and curves according to UNI EN ISO 9906 - Attachment A • Las...

Open the catalog to page 8

77 1/min rpm 6IR / 6MG 6NCBZ NCB Tipo Type - Tipo 50-250N Taglia Size - Tamaño 3600 n TAB. 03337 Le curve di prestazione sono basate su valori di viscosità cinematica = 1 mm2/s, densità pari a 1000 kg/m3, temperatura acqua 15°C e materiali parti idrauliche in versione standard. Tolleranza e curve secondo UNI EN ISO 9906 – Appendice A • The performance curves are based on the kinematic viscosity values = 1 mm2/s, density equal to 1000 kg/m3, temperature of the water 15°C and materials of hydraulic parts in standard version. Tolerance and curves according to UNI EN ISO 9906 - Attachment A • Las...

Open the catalog to page 9
