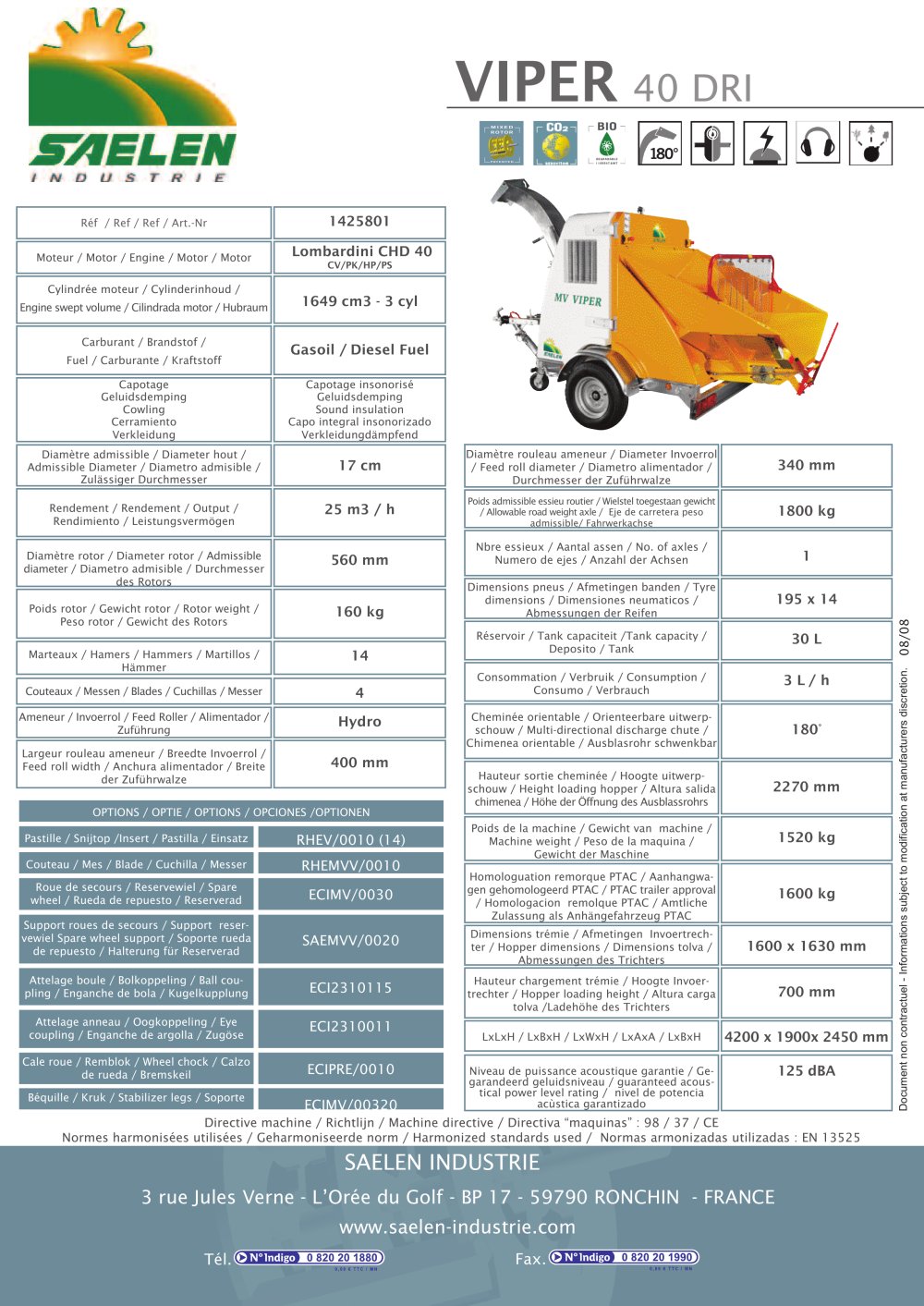

Specifications:
The VIPER 40 DRI is equipped with a Lombardini CHD 40 engine with a displacement of 1649 cm³ and 3 cylinders. It uses diesel fuel and features sound-insulated cowling. The machine can handle a maximum diameter of 17 cm and has an output capacity of 25 m³/h. The rotor diameter is 560 mm, weighing 160 kg, and includes 14 hammers and 4 blades. The feed roller is hydro-powered, with a width of 400 mm and a diameter of 340 mm. The allowable road weight axle is 1800 kg, with a single axle and tire dimensions of 195 x 14. The fuel tank capacity is 30 L, with a consumption rate of 3 L/h. The discharge chute is multi-directional with a 180° rotation and a height of 2270 mm. The machine weighs 1520 kg and has a trailer approval of 1600 kg. The hopper dimensions are 1600 x 1630 mm with a loading height of 700 mm. Overall dimensions are 4200 x 1900 x 2450 mm, and the guaranteed acoustical power level is 125 dBA.

Options:
Available options include inserts (RHEV/0010), blades (RHEMVV/0010), spare wheel (ECIMV/0030), spare wheel support (SAEMVV/0020), ball coupling (ECI2310115), eye coupling (ECI2310011), wheel chock (ECIPRE/0010), and stabilizer legs (ECIMV/00320).

Standards and Compliance:
The machine complies with the Machine Directive 98/37/CE and uses harmonized standard EN 13525.
