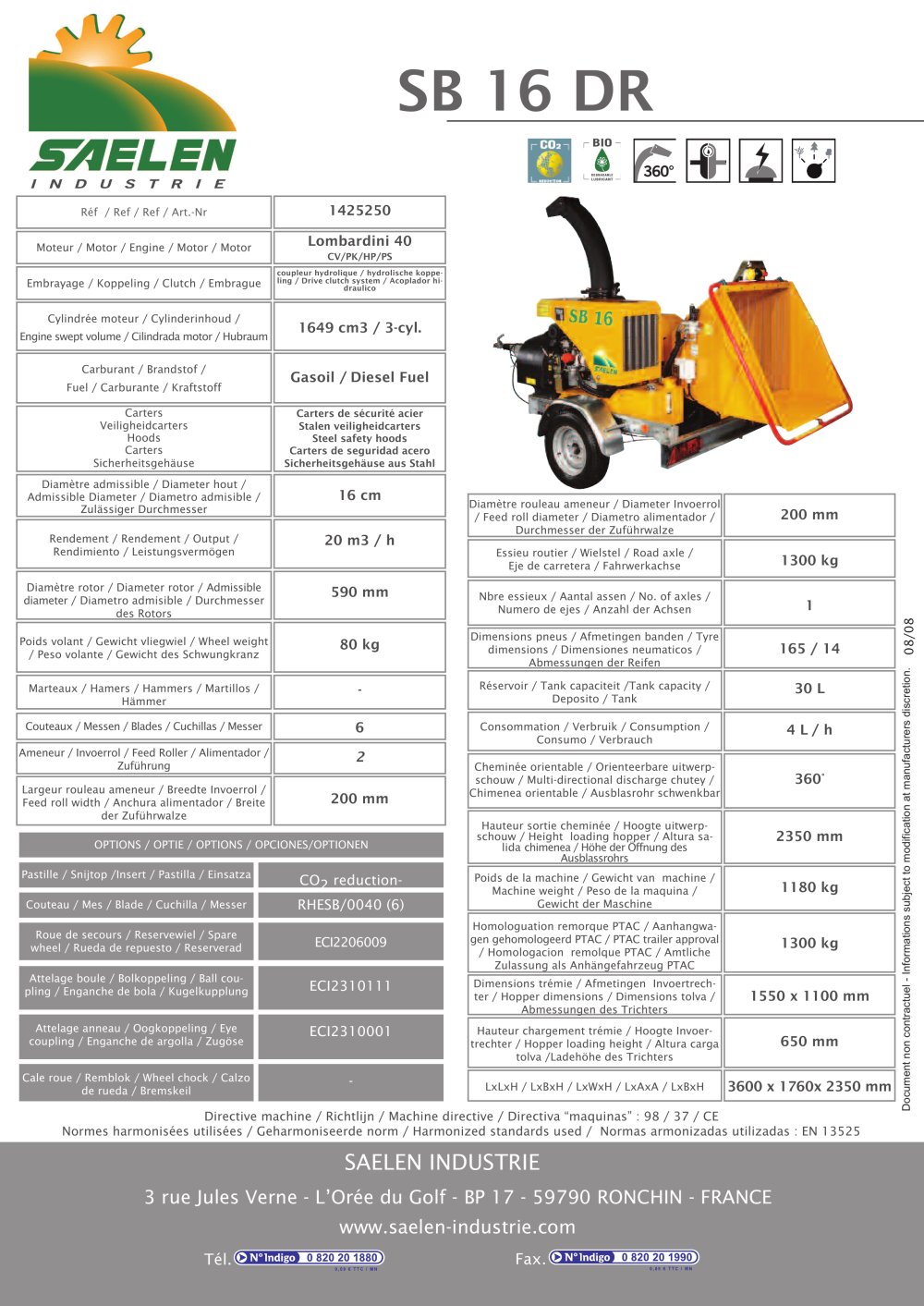

SB16
1 / 1 PageView full catalog
SB16
Product catalog summary
Specifications:
- Engine: Lombardini 40, 3-cylinder, 1649 cm3
- Fuel: Diesel
- Clutch System: Hydraulic drive clutch
- Admissible Diameter: 16 cm
- Output: 20 m3/h
- Rotor Diameter: 590 mm
- Flywheel Weight: 80 kg
- Blades: 6
- Feed Rollers: 2, each 200 mm in diameter and width
- Road Axle Capacity: 1300 kg
- Tyre Dimensions: 165/14
- Fuel Tank Capacity: 30 L
- Fuel Consumption: 4 L/h
- Discharge Chute: 360° rotatable, 2350 mm height
- Machine Weight: 1180 kg
- Trailer Approval: PTAC 1300 kg
- Hopper Dimensions: 1550 x 1100 mm, loading height 650 mm
- Overall Dimensions (LxWxH): 3600 x 1760 x 2350 mm
Options:
- CO2 Reduction Insert
- Spare Wheel
- Ball Coupling
- Eye Coupling
Standards and Compliance:
- Machine Directive: 98/37/CE
- Harmonized Standards: EN 13525
Additional Information:
Non-contractual document. Information subject to change at manufacturer's discretion.
Contact: SAELEN INDUSTRIE, 3 rue Jules Verne, L’Orée du Golf, BP 17, 59790 RONCHIN, FRANCE. Website: www.saelen-industrie.com
