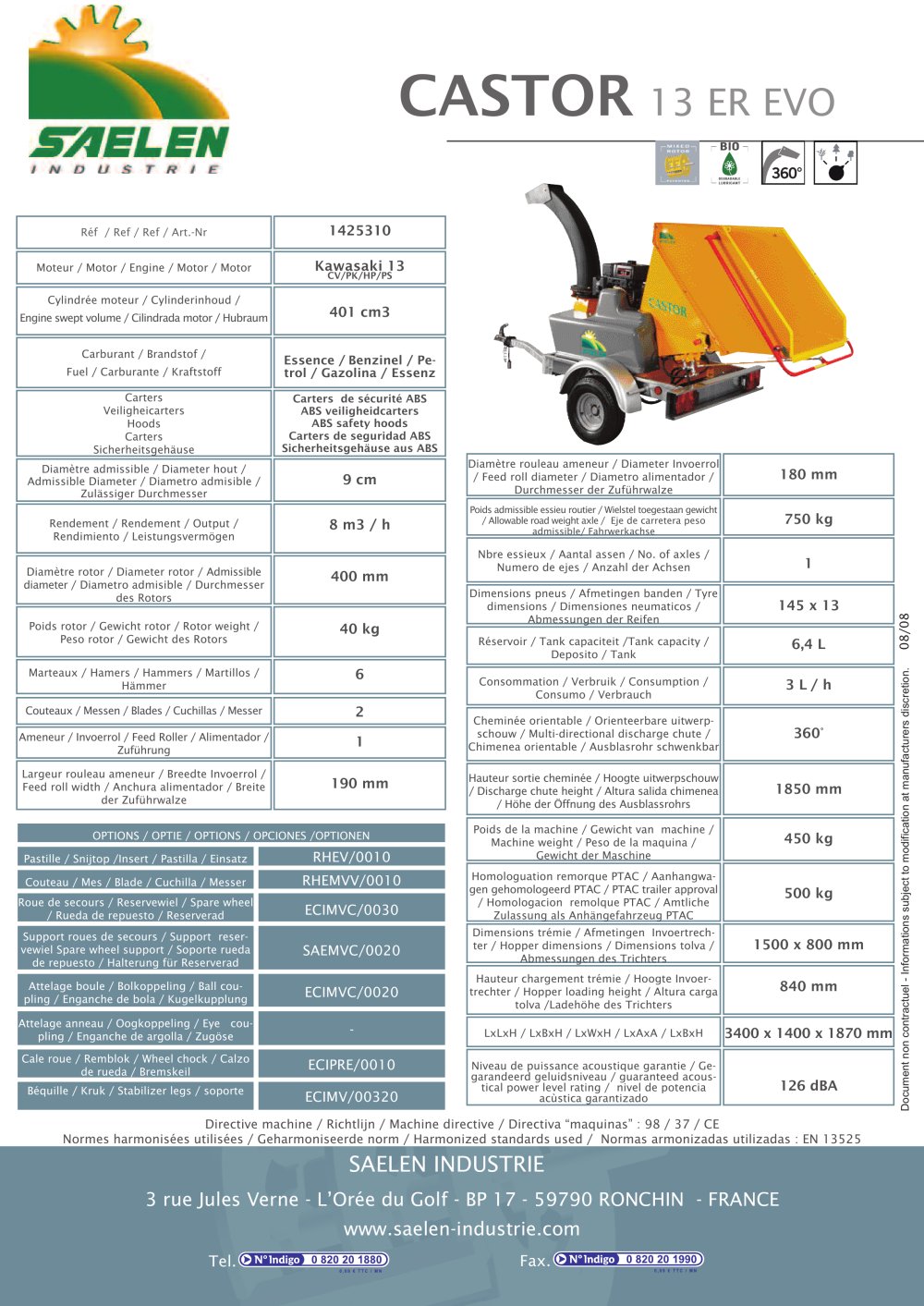

Castor 13ER
Product catalog summary
Technical Specifications:
- Engine: Kawasaki 13 HP, 401 cm3 engine displacement
- Fuel: Petrol
- Safety Hoods: ABS material
- Admissible Diameter: 9 cm
- Output: 8 m3/h
- Rotor: 400 mm diameter, 40 kg weight
- Hammers: 6
- Blades: 2
- Feed Roller: 1 roller, 190 mm width, 180 mm diameter
- Allowable Road Weight Axle: 750 kg
- Number of Axles: 1
- Tyre Dimensions: 145 x 13
- Tank Capacity: 6.4 L
- Fuel Consumption: 3 L/h
- Discharge Chute: 360° orientation, 1850 mm height
- Machine Weight: 450 kg
- Trailer Approval: 500 kg PTAC
- Hopper Dimensions: 1500 x 800 mm
- Hopper Loading Height: 840 mm
- Overall Dimensions (LxWxH): 3400 x 1400 x 1870 mm
- Acoustical Power Level: 126 dBA
- Insert: RHEV/0010
- Blade: RHEMVV/0010
- Spare Wheel: ECIMVC/0030
- Spare Wheel Support: SAEMVC/0020
- Ball Coupling: ECIMVC/0020
- Eye Coupling
- Wheel Chock: ECIPRE/0010
- Stabilizer Legs: ECIMV/00320
- Machine Directive: 98/37/CE
- Harmonized Standards: EN 13525
