Materials and Surface Finish: Belflex™ couplings are made with AISI 321 stainless steel bellows and hubs from 2024 T351 or 7075 T651 aluminum, finished with Type II sulfuric anodizing.

Hardware Specifications: The couplings use heat-treated alloy steel socket head cap screws and forged socket set screws, compliant with ASA and ASTM standards. They operate between -40°F and 200°F, with a maximum speed of 10,000 rpm.

Torque Ratings: Detailed torque ratings are provided for clamp and set screws in both inch and metric units, including seating torque for alloy and stainless steel variants.

Installation Instructions: Key steps include checking shaft misalignment, aligning hubs, tightening screws to recommended torque, and ensuring the coupling is axially relaxed.

Product Features: Belflex™ bellows couplings offer low inertia and high torsional rigidity, suitable for high-performance applications requiring precision and repeatability. They accommodate various misalignments while maintaining low bearing loads.

Warranty and Liability: Ruland guarantees products meet size and material specifications, offering replacement or refund options. Other warranties are disclaimed, and liability is limited to the purchase price.

Product Variants: Various part numbers are listed for clamp and set screw styles, with specifications for bore sizes, outer diameters, lengths, and torque ratings in both inch and metric dimensions.

Overview of Bellows Couplings: Designed for motion control applications, bellows couplings allow flexibility under misalignments while maintaining torsional rigidity, ensuring accurate motion transfer.

Additional Products: Ruland offers other coupling styles like beam, oldham, curved jaw, and disc couplings, along with shaft collars and clamping devices.

Contact Information: Ruland Manufacturing Co., Inc. is based in Marlborough, MA, and can be contacted via phone or their website for further information or custom design requests.

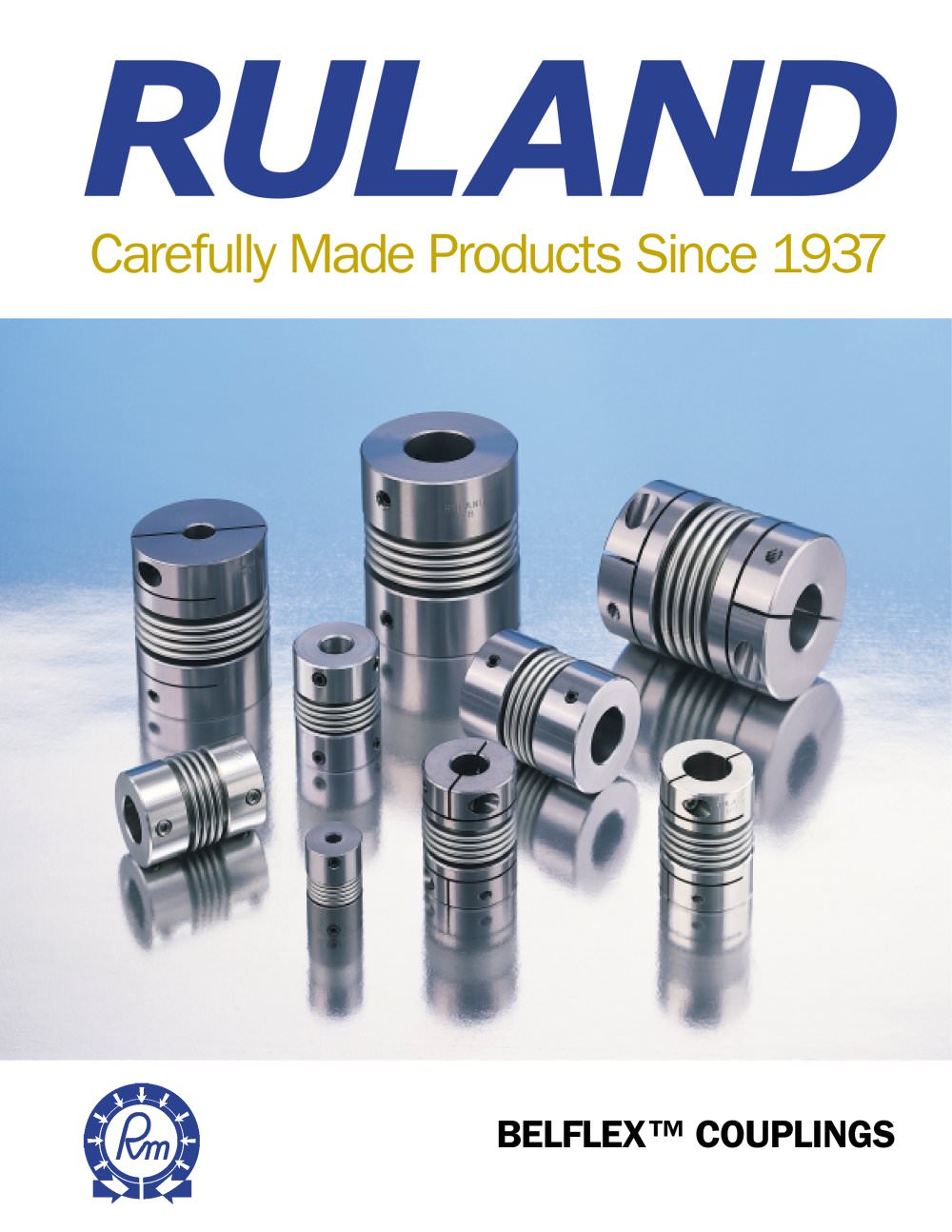

Catalog excerpts

Warranty. Ruland warranties that the products sold hereunder meet RulandҒs size and materials specifications as setforth in this catalog. Products not meeting Rulands size and material specifications will, at RulandҒs option, be replaced or the purchase price refunded. Disclaimer of unstated warranties. THE WARRANTY PRINTED ABOVE IS THE ONL Y W ARRANTY APPLICABLE TO THESEPRODUCTS. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. It is theresponsibility of the user to determine...

Open the catalog to page 2

PART NUMBER SPECIFICATIONS OUTERDIAM. HUBWIDTH STATICTORQUE TORSIONALSTIFFNESS ANGULARMISALIGNMENT PARALLELMISALIGNMENT AXIALMOTION CLAMP SET SCREW LENGTH CLAMP SET STYLE STYLE BORE 1 (in) BORE 2 (in) OD (in) L (in) SCREW SCREW L1 (in) (lb-in) (lb-in/Deg) (Deg) (in) (in) >

Open the catalog to page 3
