Rudolph Research Analytical
ECS - Easy Clean Sampling System

ECS - Easy Clean Sampling System

Product catalog summary

Overview: The ECS - Easy Clean Sampling System by Rudolph Research Analytical is designed to automate the process of sample loading and cleaning in laboratory and industrial environments. It simplifies operations by automating sample introduction, waste disposal, and programmable cleaning and drying processes.

Specifications:

Minimal sample volume required: 3-4 ml.
Max sample viscosity: 3000 mPa.s.
Filling mode: Piston Pump.
Number of rinse solutions: 2 separate rinses standard.
Rinse and drying times are programmable and method-specific.
System can pump samples through up to 5 separate instruments.
Operating dimensions: 24 x 33 x 27 cm; Weight: 5 kg.
Power requirements: 100 - 240V / 50 - 60Hz.

Procedures: The operator places the sample in front of the instrument and presses start. The system automatically measures the sample, records the data, and can print, save, or transfer it to a LIMS system. After measurement, the sample is disposed of, and the system is cleaned and dried using programmable solvent rinses and air drying.

Features:

Automatic detection for fill, rinse, and waste levels.
Sample recovery option available.
Data management options include printing, saving as Excel, or LIMS transfer.

Calibration and Method Information: The system includes calibration information and method settings for specific samples, such as HCL, with detailed parameters like temperature settings and sample identification.

Catalog excerpts

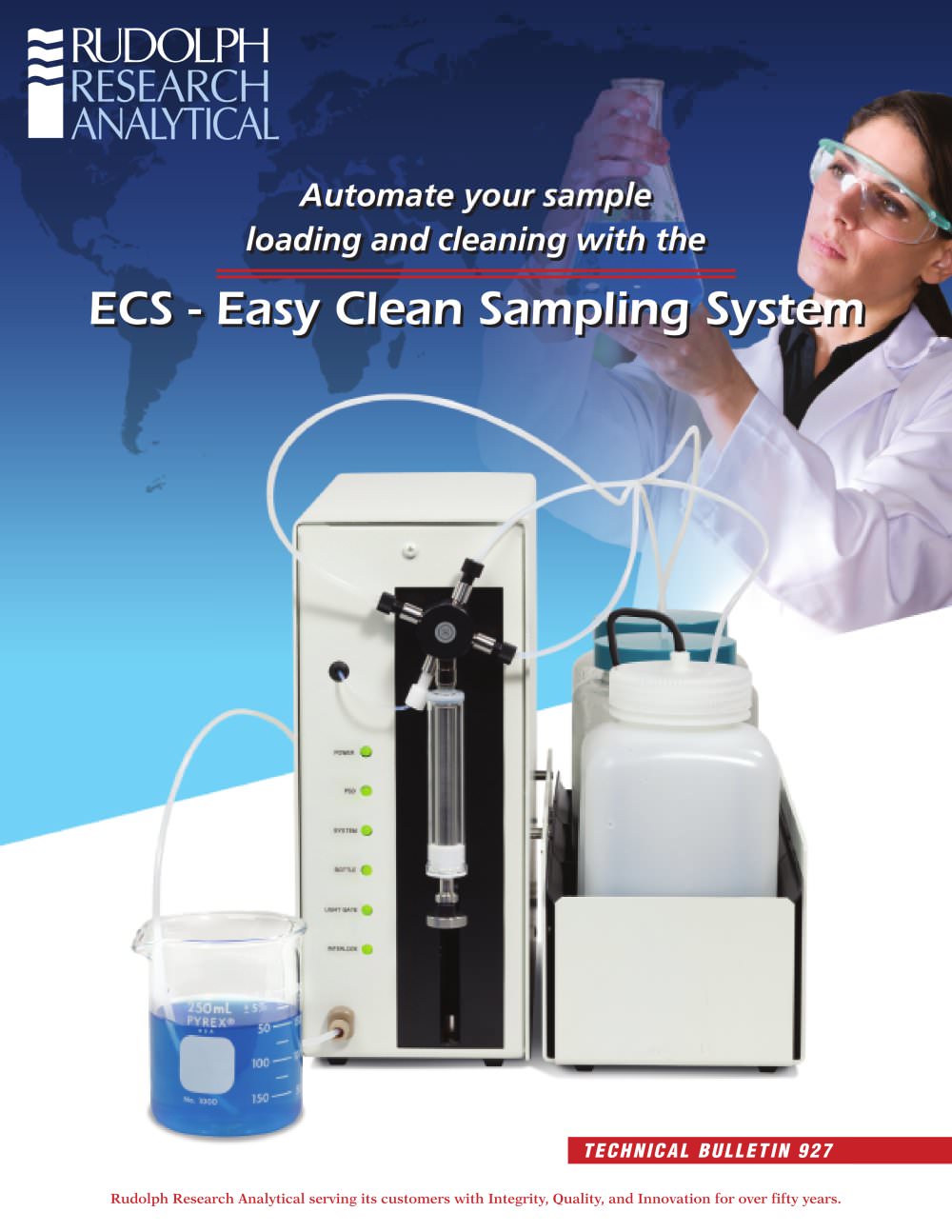

Automate your sample loading and cleaning with the ECS - Easy Clean Sampling System TECHNICAL BUL LETIN 927 Rudolph Research Analytical serving its customers with Integrity, Quality, and Innovation for over fifty years.

Open the catalog to page 1

Rudolph Research Analytical 55 Newburgh Road, Hackettstown, NJ 07840 USA • Phone: 973-584-1558 • Fax: 973-584-5440 • E-mail: [email protected] • Internet: www.rudolphresearch.com ECS - Easy Clean Sampling System Specifications 05/09 The Rudolph ECS - Easy Clean Sampling System is designed to automate sample loading and cleaning SIMPLIFY WITH ECS • Automated sample introduction • Waste disposal • Programmable cleaning and drying • Minimal sample volume: 3-4 ml • Just place your sample in front of the instrument and press start Built in pump for auto drying Rinse 1 Rinse 2 Waste storage...
