Rudolph Research Analytical
AUTOPOL III Polarimeter

AUTOPOL III Polarimeter

Product catalog summary

Overview: The document is a technical bulletin for the Autopol® III Automatic Polarimeter by Rudolph Research Analytical, designed for GLP/GMP laboratories. It highlights the instrument's features, specifications, and available accessory packages.

Instrument Features: The Autopol III is a dual-wavelength polarimeter offering high accuracy with a user-friendly interface. It provides results in less than 25 seconds and includes a thermo probe with a glass coating for durability against high molar hydrochloric acids. The device is cGLP/GMP compliant, providing printouts with sample temperature.

Accessory Packages:

Package A: Includes a 100mm, 6ml glass center fill cell and a stainless steel jacketed cell, both compatible with acids.
Package B: Offers a 50mm glass jacketed fixed end cell and a 100mm glass center fill cell with removable windows, also acid-compatible.
Package C: Designed for small volume and durability, popular with universities, with cells available in various lengths and volumes.

Specifications:

Measuring Modes: Optical Rotation, Specific Rotation, Concentration, °Z (ISS) Sugar Degrees.
Measuring Range: ±89° Arc Optical Rotation.
Resolution and Reproducibility: 0.001° and 0.002° Arc Optical Rotation, respectively.
Accuracy: 0.002° Arc up to 1°, 0.2% above 1°.
Optical Wavelengths: 589nm, 546nm.
Temperature Probe Range: 10° - 40°C with ±0.1°C accuracy.
Measurement Time: 5 measurements in less than 25 seconds.
Light Source: Tungsten-halogen lamp with 2,000-hour life.
Sample Chamber: Accepts tubes up to 200mm.
Communication: Two RS232 serial ports, one parallel printer port.
Display: 7.5cm x 10cm Graphics LCD with touchscreen interface.
Power: 100 - 240 V, 50/60 Hz.
Dimensions and Weight: Operating dimensions are 24.3"W x 12.7"H x 17.5"D, with a weight of 42 lbs.

Data and Statistics: The document includes sample measurement data for sucrose, showing consistent results with minimal standard deviation, demonstrating the instrument's precision.

Catalog excerpts

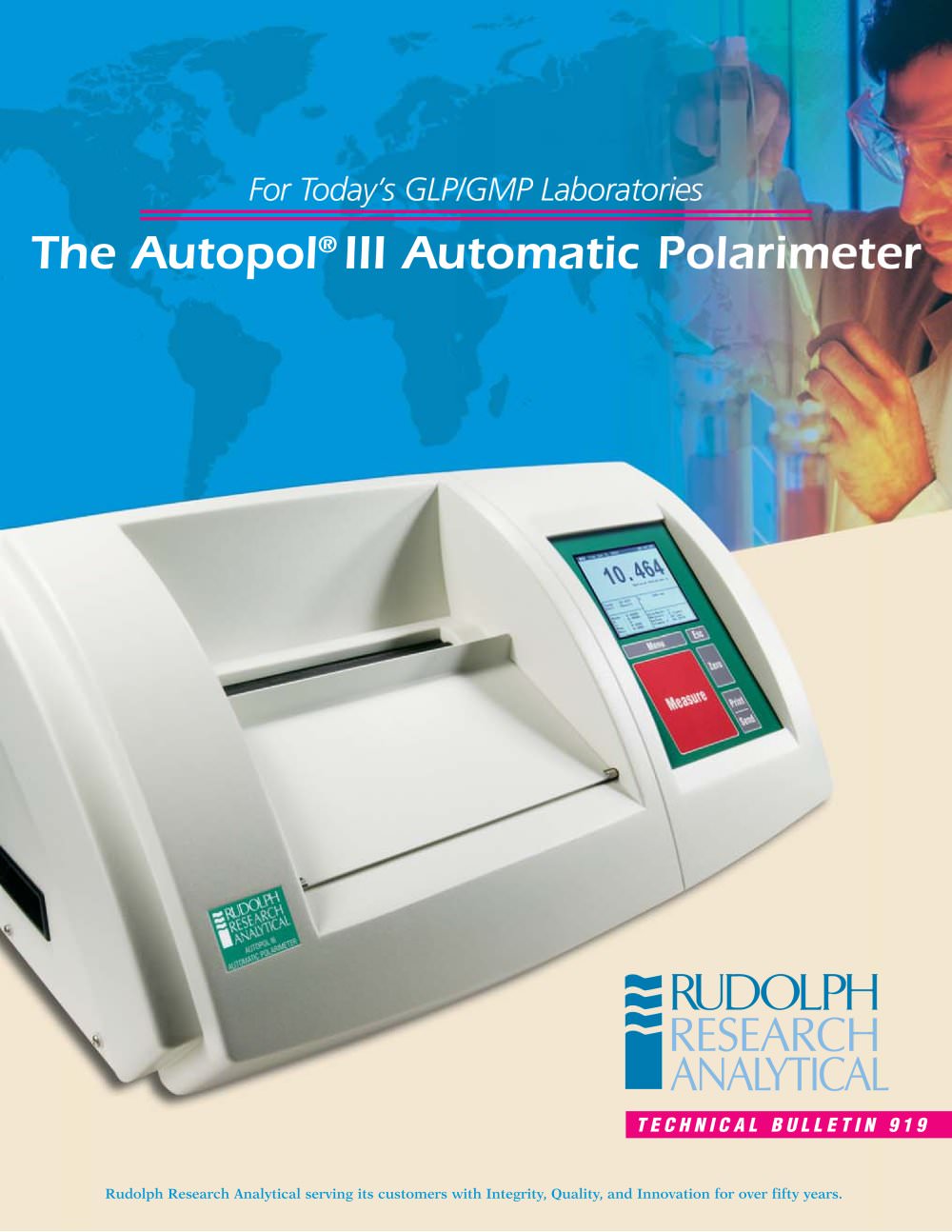

Rudolph Research Analytical serving its customers with Integrity, Quality, and Innovation for over fifty years. T E C H N I C A L B U L L E T I N 9 1 9 For Today’s GLP/GMP Laboratories The Autopol® III Automatic Polarimeter

Open the catalog to page 1

The Autopol III is Rudolph’s entry level Dual Wavelength Pharmaceutical and Research grade polarimeter offering accuracy similar to Rudolph’s more advanced models, but with a simplified interface. Just place your cell in the sample chamber, press the large red Measure Key and get 5 results in less than 25 seconds. It’s that easy. The Autopol III’s thermo probe is covered with a micron thick glass coating to stand up to high molar Hydrochloric Acids used by some pharmaceutical labs. A cGLP/GMP compliant printout, which includes the temperature of the sample is generated by pressing the Print/Send...

Open the catalog to page 2

AUTOPOL III Polarimeter

AUTOPOL III Polarimeter
