AUTOPOL II Polarimeter

AUTOPOL II Polarimeter

AUTOPOL II Polarimeter

Product catalog summary
Overview: The Autopol® II Automatic Polarimeter is designed for general-purpose applications in budget-focused contract laboratories, food labs, and college chemistry laboratories. It emphasizes quality, using high-grade optical components typically found in more expensive models.
Quality: Unlike competitors, Rudolph uses Glan Thompson Calcite Quartz Polarizers instead of Polaroid Plastic Dichroic Sheet Polarizers. These high-quality prisms are crucial for accurate optical measurements and are guaranteed for the polarimeter's lifetime.
Temperature: The Autopol II includes a temperature probe for displaying and printing sample temperatures. However, it may not be suitable for applications requiring precise temperature control, such as most pharmaceutical analyses.
Wavelengths and Accessories: The device features two selectable wavelengths (589nm and 546nm) and comes with a standard accessories package, with an option to upgrade to a calibration package.
Specifications: The Autopol II measures optical rotation, specific rotation, concentration, and sugar degrees with a measuring range of ±89° Arc Optical Rotation and a resolution of 0.01° Arc Optical Rotation. It includes a tungsten-halogen light source, a sample chamber for tubes up to 200mm, and a touchscreen interface.
Additional Features: The polarimeter offers automatic calibration, data storage on higher models, and various communication interfaces. It operates on 100-240V power and includes a battery-backed clock for time and date functions.
See more

Catalog excerpts

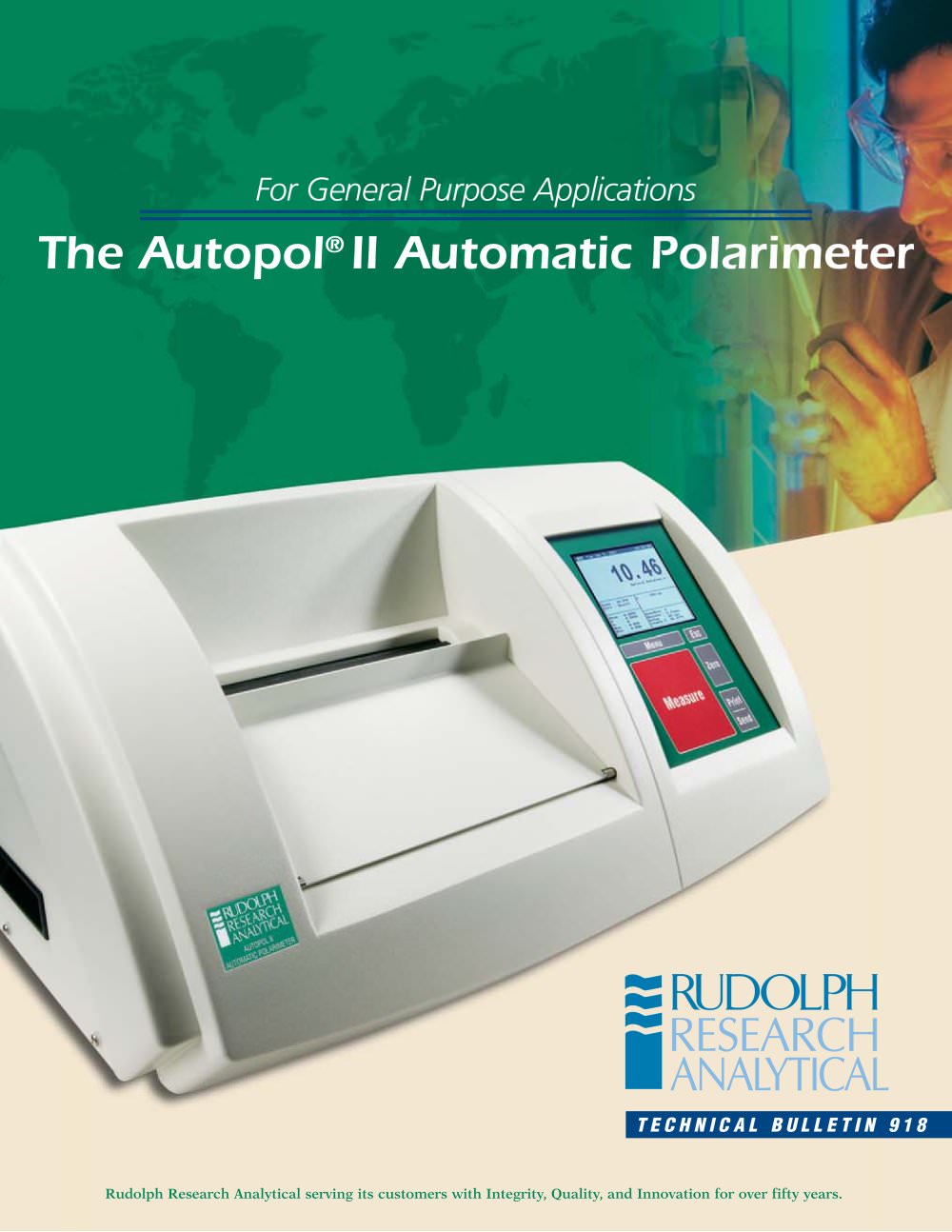

AUTOPOL II Polarimeter-1

Rudolph Research Analytical serving its customers with Integrity, Quality, and Innovation for over fifty years. T E C H N I C A L B U L L E T I N 9 1 8 For General Purpose Applications The Autopol® II Automatic Polarimeter

 Open the catalog to page 1
AUTOPOL II Polarimeter-2

The Autopol II is designed as a general purpose automatic polarimeter for budget focused Contract Laboratories, Food Labs and College Chemistry Laboratories. QUALITY Rudolph manufactures its entry-level polarimeter with the same high quality optics as its more expensive instruments. While other manufacturers in this price range use Polaroid Plastic Dichroic Sheet Polarizers, Rudolph does not. Instead, Rudolph uses the same high quality Glan Thompson Calcite Quartz Polarizers used in its high accuracy models. (Figure A) Why are high quality polarizing prisms important? Because prisms are two of...

 Open the catalog to page 2
