UC625 Compact Alarm Annunciator

UC625 Compact Alarm Annunciator
1 / 4Pages

Catalog excerpts

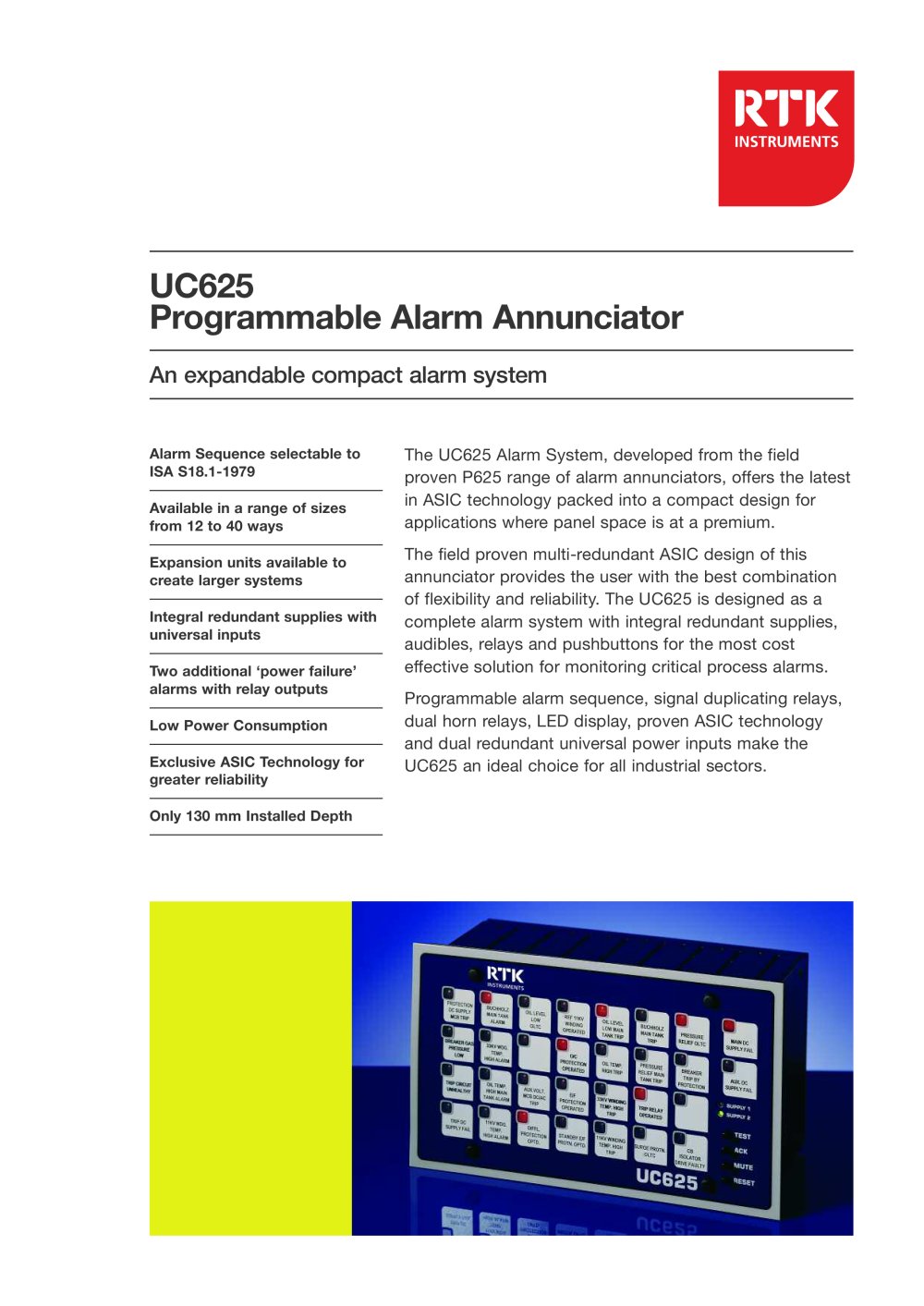

Alarm Sequence selectable to > ISA S18.1-1979Available in a range of sizes from 12 to 40 ways Expansion units available to create larger systems Integral redundant supplies with universal inputs Two additional power failureђ alarms with relay outputs Low Power Consumption Exclusive ASIC Technology for greater reliability Only 130 mm Installed Depth >

Open the catalog to page 1

Input Response As standard, the input response is set to 22ms for optimum performance, however this delay is user programmable and can be reduced or extended to suit the exact site conditions. Sleep Mode All units are equipped with Sleepђ mode which is typically used in substation applications where the visual and audible outputs are disabled during unmanned periods to reduce drain on the station batteries. Whilst in Sleepђ mode, the alarm logic will continue to react in the normal way including the operation of the group alarm relays and individual repeat and common alarm relays ONLYthe...

Open the catalog to page 2

LVDCompliance Designed and manufactured to EN61010-1:1993. Environment Protection > Operating Temp0 to +60C Storage TempЖ20 to +80C Humidity0Ж95% RH, non-condensing Front IP51, Rear ֖ IP20. Alarm Contacts Supply 1 Voltage range 85-264VAC or 88-360VDC. Pushbuttons All inputs are optically coupled and canbe used for volt free Normally Open orNormally Closed contact inputs. Voltage inputs can also be used, these can be 24, 48, 125 or 250VAC/DC. Integrally mounted Functional Test, Acknowledge, Mute and Reset pushbuttons for all standard alarms. One set of terminals for the two power failureӔ...

Open the catalog to page 4
