P866 signal bisolator/trisolator
Product catalog summary
Overview: The P866 range of Signal Bisolators and Trisolators are compact instruments designed for industrial control applications. They provide dual and triple isolated outputs from a single input, ensuring total isolation between input, outputs, and supply.
Key Features:
- Total isolation between input, outputs, and supply.
- Compact DIN-rail and surface mounting enclosure.
- Operates on standard process control signals including voltage, current, resistance, RTD, and AC signals.
- Optional 24VDC isolated transmitter supply for powering two-wire transmitters.
- User-selectable current or voltage output with span and zero controls accessible from the front.
Technical Specifications:
- Inputs: DC and AC voltage and current ranges, temperature ranges for Platinum RTD, and resistance ranges.
- Outputs: User-selectable between 0-10V and 4-20mA with adjustment via multiturn potentiometers.
- Supply: 85-264VAC or 88-360VDC with approximately 6VA power consumption.
- General: Linearity better than 0.05% of span, supply voltage rejection, common mode rejection, and maximum isolation of 500VAC or 700VDC.
- Environment: Operating temperature from 0°C to +60°C, storage temperature from –20°C to +80°C, and humidity 0-95% RH, non-condensing.
- Compliance: Meets standards for immunity, emissions, and low voltage directive.
Ordering Information: Available as P866/2 Signal Bisolator or P866/3 Signal Trisolator with customizable input and output ranges and optional excitation voltage.
Contact Information: RTK Instruments Limited, St James Business Park, Knaresborough, North Yorkshire, England. Telephone: +44 (0)1423 580500, Email: [email protected]
See more
Catalog excerpts

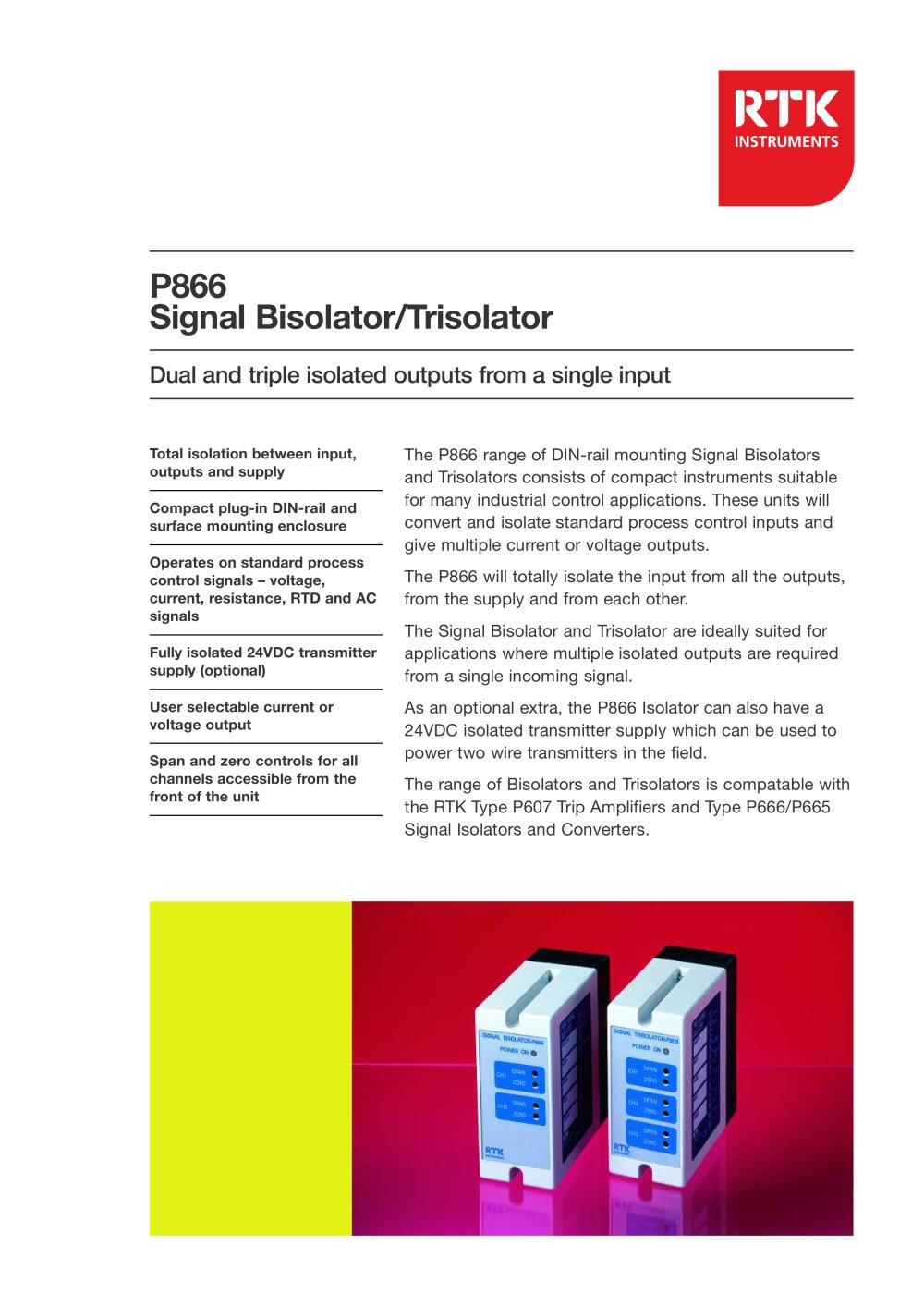

Total isolation between input, > outputs and supplyCompact plug-in DIN-rail and surface mounting enclosure Operates on standard processcontrol signals voltage, current, resistance, RTD and AC signalsFully isolated 24VDC transmitter supply (optional) User selectable current or voltage output Span and zero controls for allchannels accessible from the front of the unit >
