Overview: The P766 Signal Isolator is a compact device designed for industrial control applications, providing signal isolation and conversion. It features a 3-port isolation up to 1500VDC and is available in mains or 24VDC powered versions.

Specifications:

Dimensions: 22mm wide, DIN-rail mounting.
Power Supply: Selectable 110/230VAC or 24VDC.
Isolation: 3-port isolation to 1500VDC.
Input Impedance: Low input impedance with high drive capability.
Controls: Span and zero controls accessible from the front.
Indication: 'Power On' indication available.

Inputs:

DC Ranges: Voltage (0–100mV to 0–100V), Current (0–1mA to 0–100mA).
Temperature Ranges: Platinum RTD (Pt100), 0–100°C to 0–200°C.
Resistance Ranges: Potentiometer input (1K, 2K, 5K).

Outputs:

Voltage: 0–10VDC into 10k minimum.
Current: 4–20mA into 600 maximum (mains version), 1200 maximum (DC version).
Adjustment: Approximately ±10% of the span via multiturn potentiometers.

Supply:

Mains Version: 110VAC ±10%, 50/60Hz or 230VAC ±10%, 50/60Hz, Power consumption ~2VA.
DC Version: Nominally 24VDC (19-28VDC) at ~80mA.

Performance:

Linearity: Better than 0.1% of span.
Offset Error: Better than 0.1% of span.
Load Stability: Better than 0.01% of span per 10Ω.
Output Ripple: Better than 0.1% RMS of span.
Supply Voltage Rejection: Output change < 0.01% of span/% change in supply voltage.

Environmental Conditions:

Operating Temperature: 0°C to +50°C.
Storage Temperature: –20°C to +80°C.
Humidity: 0–95% RH, non-condensing.
Protection: IP40.

Compliance:

Immunity: EN61000-6-2:2001.
Emissions: EN61000-6-4:2001.
LVD: EN61010-1:1993.

Ordering Information: Specify P766 Signal Isolator, supply voltage, input range, and output range.

Catalog excerpts

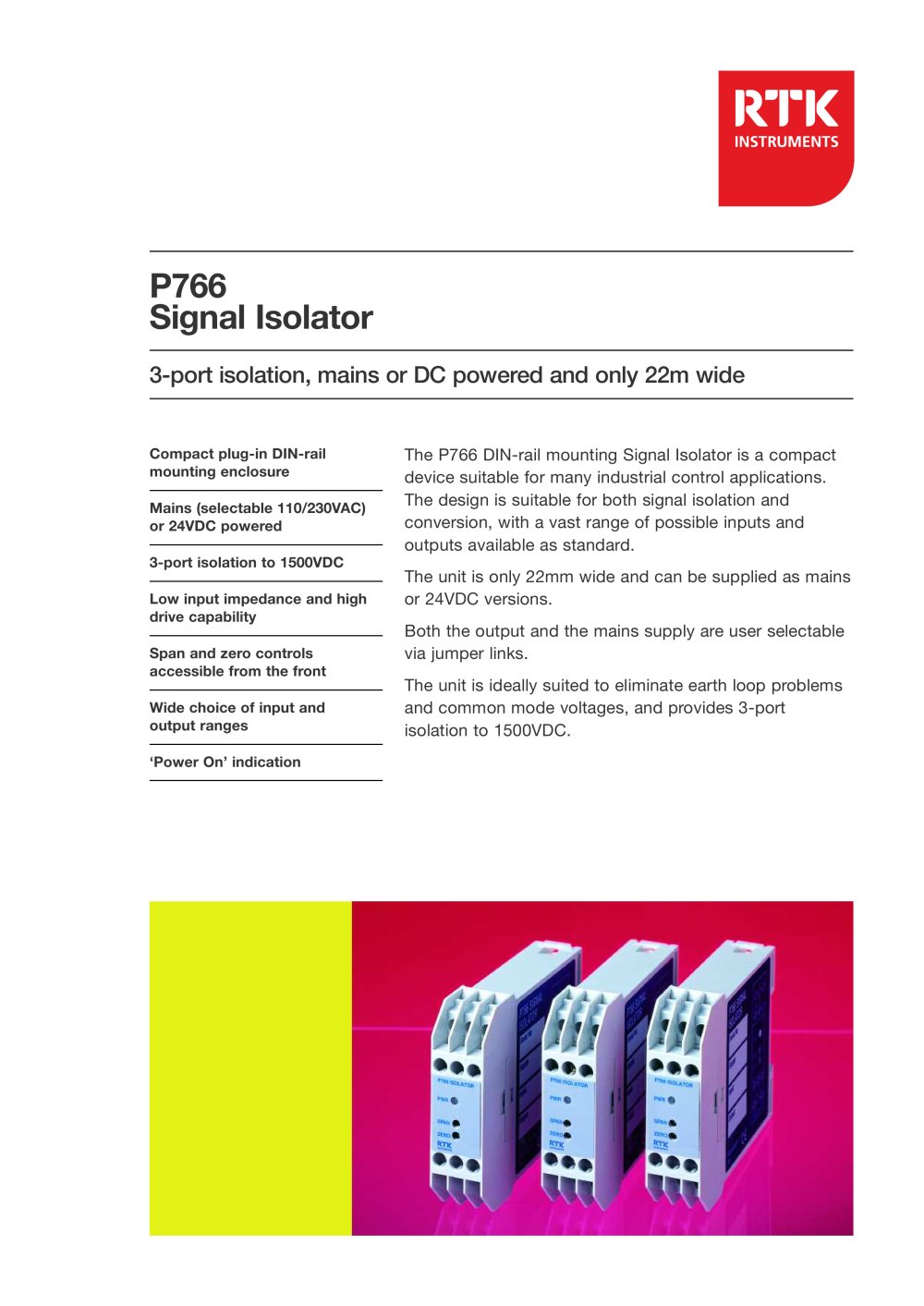

Compact plug-in DIN-rail > mounting enclosureMains (selectable 110/230VAC) or 24VDC powered 3-port isolation to 1500VDC Low input impedance and high drive capability Span and zerocontrols accessible from the front Wide choice of input and output ranges Power Onђ indication >
