LN1000 Intrinsically Safe Alarm Annunciator

LN1000 Intrinsically Safe Alarm Annunciator

Product catalog summary

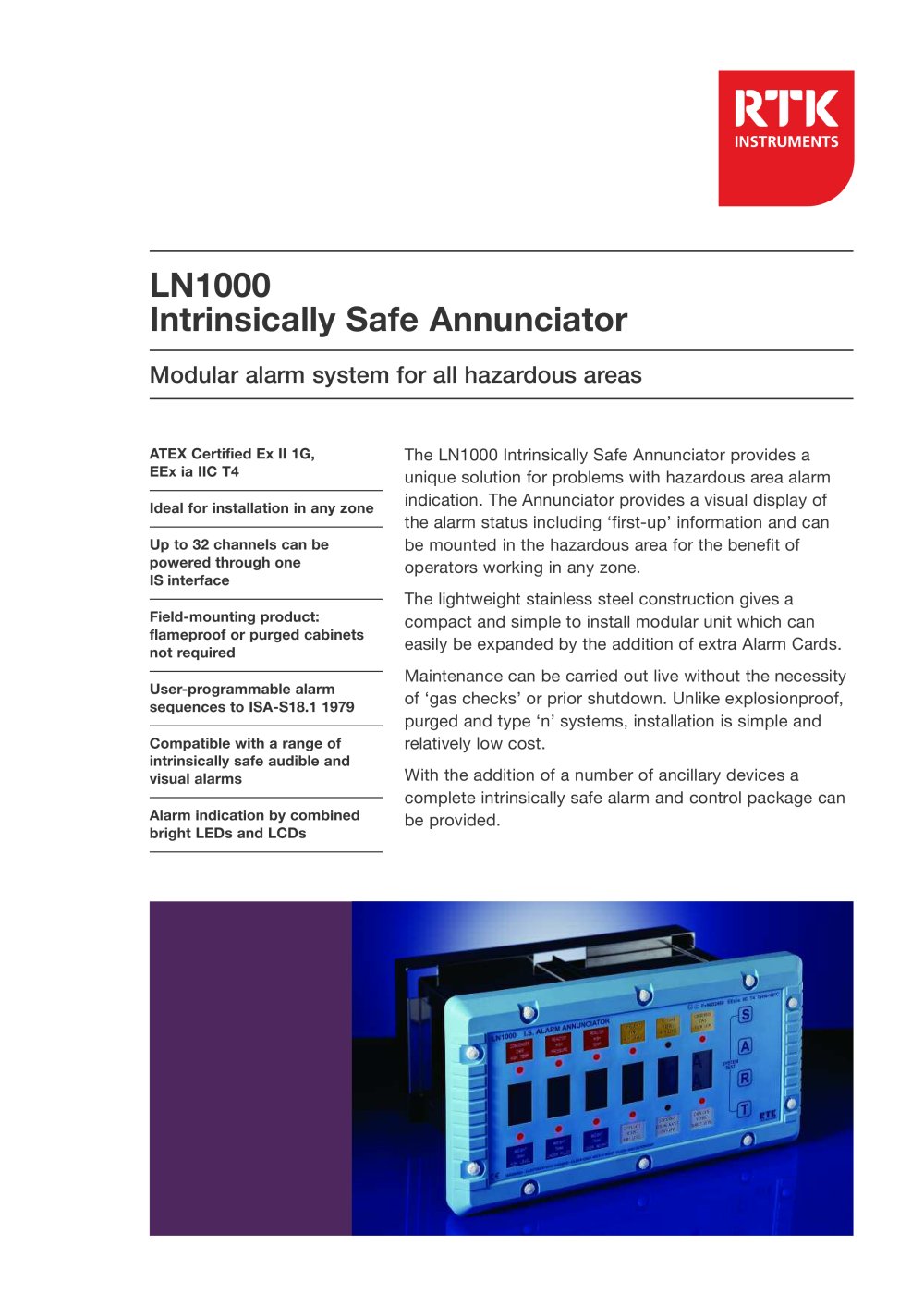

Overview: The LN1000 Intrinsically Safe Annunciator is a modular alarm system designed for hazardous areas, certified under ATEX standards. It supports up to 32 channels powered through a single IS interface and is compatible with various intrinsically safe alarms.

Specifications: The system is lightweight, constructed from stainless steel and polyurethane, and does not require flameproof or purged cabinets. It is field-mountable and sealed to IP65, suitable for harsh environments.

Features: The LN1000 is fully field programmable, allowing for different alarm sequences and functionalities. It includes adjustable time delays to prevent false alarms and supports a 'first-up' feature to identify the initial alarm in a sequence.

Installation: Installation is straightforward, with no need for explosionproof conduits. The system can be panel-mounted or supplied in a pre-wired IP65 cabinet for wall mounting.

Operation: The annunciator uses high brightness LEDs and LCDs for alarm indication. It supports various ISA alarm sequences and can be programmed for automatic or manual reset. The system includes controls for silencing, acknowledging, and resetting alarms.

Ancillary Equipment: The system can be expanded with additional devices like sounders and beacons for enhanced alarm notification. It uses IS relays for signal transfer between safe and hazardous areas.

Applications: Suitable for both large and small systems, the LN1000 can be integrated with other RTK products to form a complete alarm package, ensuring clear and effective alarm management in hazardous environments.

Technical Specification: The device is certified under ATEX standards for use in hazardous areas (Zones 0, 1, or 2) and complies with various safety and environmental standards. It is ATEX certified to EN50014:1997, EN50020:2002, and EN50284:1999, classified as Group II, Category 1G, EEx ia IIC T4, with a temperature range of -20ºC to +60ºC. The certificate number is Baseefa02ATEX0184.

Safety Parameters: Key safety parameters include Ui = 30V, Ii = 165mW, Pi = 1.2W, Ci = 47nF, and Li = 0.44mH. The device should be powered from an EEx ia IIC certified interface with output parameters lower than these.

Recommended Interfaces: IS Isolators such as WIS1212 are recommended for use with this device.

Inputs: The device supports up to 12 or 32 alarm inputs, which must be isolated. Alarm inputs can be configured as normally open or closed. Inhibit inputs allow individual alarm channels to be disabled. Four membrane pushbuttons are standard, with options for remote wiring.

Outputs: Sequence card outputs include external sound control and group outputs for DA-149 IS Relays. Alarm card outputs provide two group outputs per channel, configurable to follow alarm logic or input.

General Specifications: The device requires a power supply of 18-35VDC at 75mA max. It complies with EMC standards EN61000-6-2:2001 and EN61000-6-4:2001. Operating temperature is 0 to 60ºC, with storage from -20 to 80ºC. Humidity tolerance is 0-95% RH, non-condensing.

Protection and Construction: Panel mount protection is IP65, with rear enclosure protection at IP20. Wall mount protection is IP65. The case is stainless steel, with a high-impact resistant polyurethane front facia and polyester membrane.

Weight and Dimensions: The 12-way panel mount weighs 3.8kg, and the 32-way panel mount weighs 8.0kg. Wall mounts weigh 20.0kg and 44.0kg, respectively. Additional weight for each alarm card is 120g.

Order Code: The order code specifies chassis size (12 or 32 way), number of alarm channels, and mounting type (panel or wall mount).
