DF30 Display Facia
DF30 Display Facia
The P725LO and DF30 Series Display Facias are designed for alarm and status indication, offering a variety of display formats, sizes, and configurations. They feature lamp or LED illumination and modular construction, allowing customization to meet specific requirements. These displays are compatible with RTK Instruments' Alarm Annunciators and are available in six window colors, ready for panel mounting with low installed depth.
P725LO Display Facia
This lamp-only version of the 725 Series Alarm Annunciator uses modular construction for exact matching with the full annunciator system. It offers three window sizes: small (30x30mm), medium (60x30mm), and large (60x60mm). The display can be configured in various sizes using a basic cell structure, with a maximum of 30 cells vertically or horizontally. Window colors include red, amber, yellow, white, green, and blue. The standard supply voltage is 24VDC, with options for 12 or 48VDC. Integral components like pushbuttons and audibles can be included for alarm acknowledgment and reset.
Technical Specifications
- Lamp Version: 28V 50mA, 14,000-hour design life
- LED Version: Ultra-bright removable LED assemblies
- Operating Temperature: -20 to 50ºC (lamp), -20 to 60ºC (LED)
- Protection: Front IP41, Rear IP20
- Compliance: EN61000-6-2:2001, EN61000-6-4:2001, EN61010-1:1993
DF30 Display Facia
The DF30 offers similar features with three window sizes and the ability to mix sizes in a single display. It supports up to 400 small windows, 200 medium, or 100 large windows. The display is available with incandescent or LED illumination and can be connected to various voltages, including 24VDC, 6, 12, or 48VDC, and AC voltages with an adapter. Integral components like pushbuttons and audibles are available, and window marking options include engraved or film legends.
Technical Specifications
- Lamp Version: 28V 40mA, 14,000-hour design life
- LED Version: Ultra-bright removable LED assemblies
- Operating Temperature: -20 to 50ºC (lamp), -20 to 60ºC (LED)
- Protection: Front IP41, Rear IP20
- Compliance: EN61000-6-2:2001, EN61000-6-4:2001, EN61010-1:1993
Special Versions
Several special versions of the DF30 are available, including the DFR30 with a larger frame, the DF30LC for direct connection to higher voltages, the DF40 with a 40mm grid structure, and the DFR30IS for intrinsically safe applications in hazardous areas.
Catalog excerpts

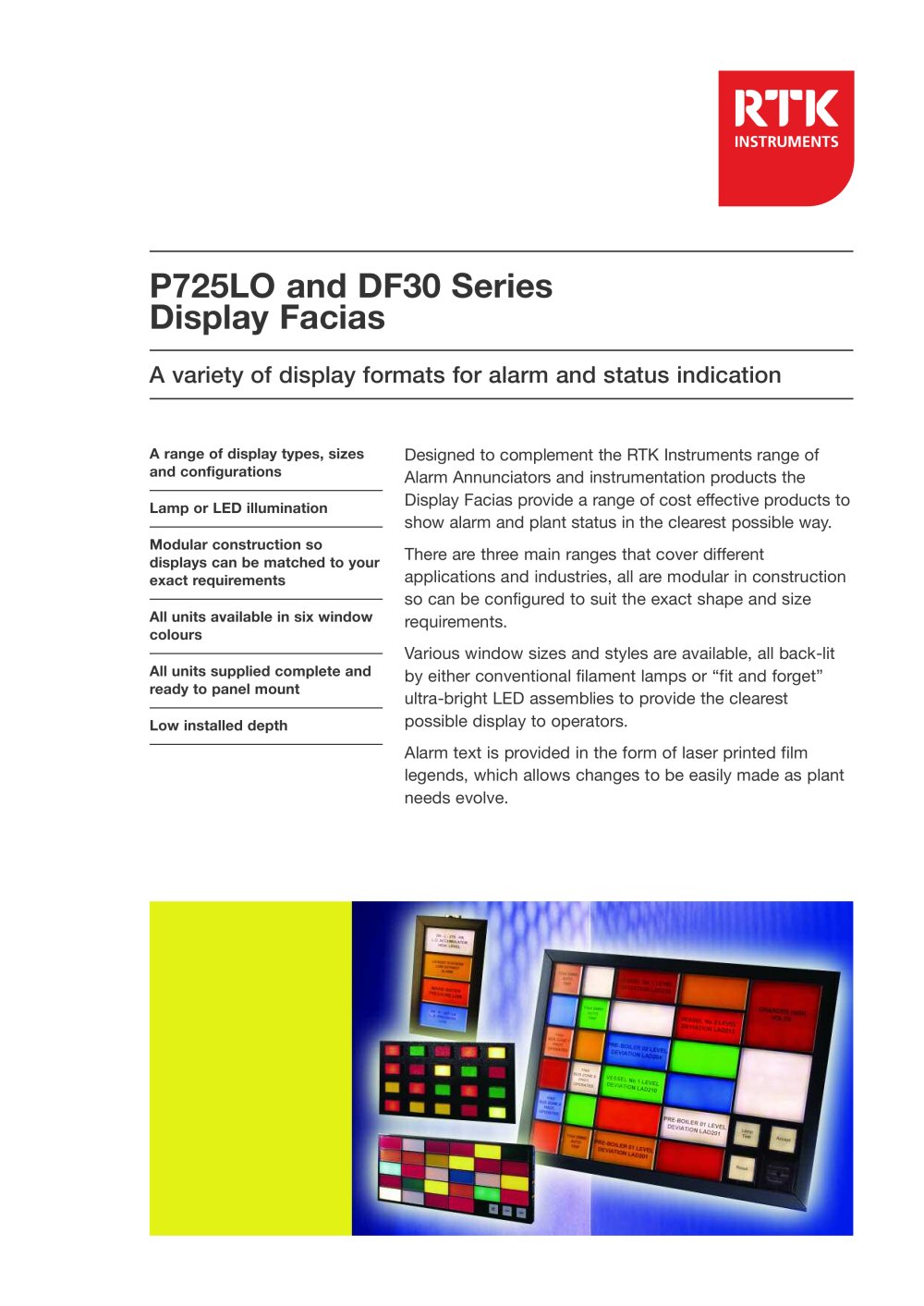

Arange of display types, sizes > and configurations Lamp or LED illuminationModular construction sodisplays can be matched to your exact requirementsAll units available in six window colours All units supplied complete and ready to panel mount Low installed depth >
Open the catalog to page 1
Red Amber Window Colours Yellow All three window sizes are available in the following six colours for both LED and filament lamp illumination Display Size Almost any size and format can be constructed using the basic cell structure, with a window size being selected from above or if required intermixed windows can be supplied. The maximum overall size either vertically or horizontally is 30 cells. Connections The standard display has rear mounted rising clamp terminals suitable for solid or stranded cable up to 2.5mm Window Marking Displays can be configured with the required filter colours and...
Open the catalog to page 2
Window Colours All three window sizes are available in the following six colours: Red Yellow Amber Green Connections Window Marking The standard display has rear mountedscrew terminals suitable for 2.5mm Display units can be supplied with allwindows engraved or fitted with film legends. In the standard display the colour and text is visible at all times but windows can be supplied which are visible only when lit or which have illuminated text only on a black background. > Window Details The DF30 is available in three different window sizes, small, medium and large as listed below. Small30 x 30mm...
Open the catalog to page 3
DF40 Version DFR30IS Version The same display type and features but based on a 40mm grid structure giving window sizes of 40 x 40mm, 80 x 40mm and 80 x 80mm. This unit is an Intrinsically Safe backlit display which can be mounted in any Zone 1 or Zone 2 hazardous area. See separate datasheet for full details. DF30LC Version > DFR30 Version This is a lower cost LED illuminated display that can be connected directly to 48 or 110VDC. The rear terminal board includes an efficient DC/DC converter to drive the LEDs from the higher voltage. Available in blocks of 4 wide by 2 high small windows. This...
