Overview
Reell's patented constant torque technology is available as a torque insert, known as the ReellTorq Insert. This product is designed to be over-molded with plastic, adding constant torque functionality to various applications. It provides a smooth quality feel and consistent torques ranging from 44.3 to 70.8 lb-in (5.0 to 8.0 Nm) with a 360° shaft rotation, allowing for infinite holding positions.

Function of Hinge
The ReellTorq Insert is engineered to deliver constant torque throughout its full range of motion, making it ideal for horizontal axis applications that require holding objects at various positions. It is specifically designed for enclosed environments.

Performance

Springback is typically less than 1°.
No backlash.
Minimum life of 10,000 cycles, with each cycle consisting of 180° open and 180° closed.
Operates within an ambient temperature range of 0°- 60°C.

Materials

Zinc Die Cast Housing
Zinc Die Cast Bushings
Hardened Steel Shaft
Hardened Steel Torque Clips
Mineral Oil Based Lubricant

Design Characteristics
The ReellTorq Insert is part of the TI200 1444 series, offering innovative torque solutions. It is designed to be inserted molded into glass-filled nylon.

Available Options

Torque options: 44.3, 53.1, 62.0, 70.8 lb-in (5.0, 6.0, 7.0, 8.0 Nm). Note: Low torque is 60% in the opposite direction.
Finish: Plain

Applications

Office Equipment
Medical Devices
Automotive Enclosures
Computer Peripherals
Flat Panel Monitors
Access Panels
Industrial Enclosures
Equipment Guards

Catalog excerpts

Performance ЕSpringback typically < 1 ЕNo backlash Life of 10,000 cycles min. 1 cycle consists of180հopen and 180closedЕAmbient temperature range 0- 60аC Materials Zinc Die Cast Housing Zinc Die Cast Bushings Hardened Steel Shaft Hardened Steel Torque Clips Mineral Oil Based Lubricant > Function of Hinge The ReellTorq Insert is designed to provide constant torque throughout its full range of motion. It is ideally suited to for horizontal axis applications requiring the ability to hold an object at various positions. This hinge is designed for enclosed environments. Innovative Torque Solutionswww.reell.com >

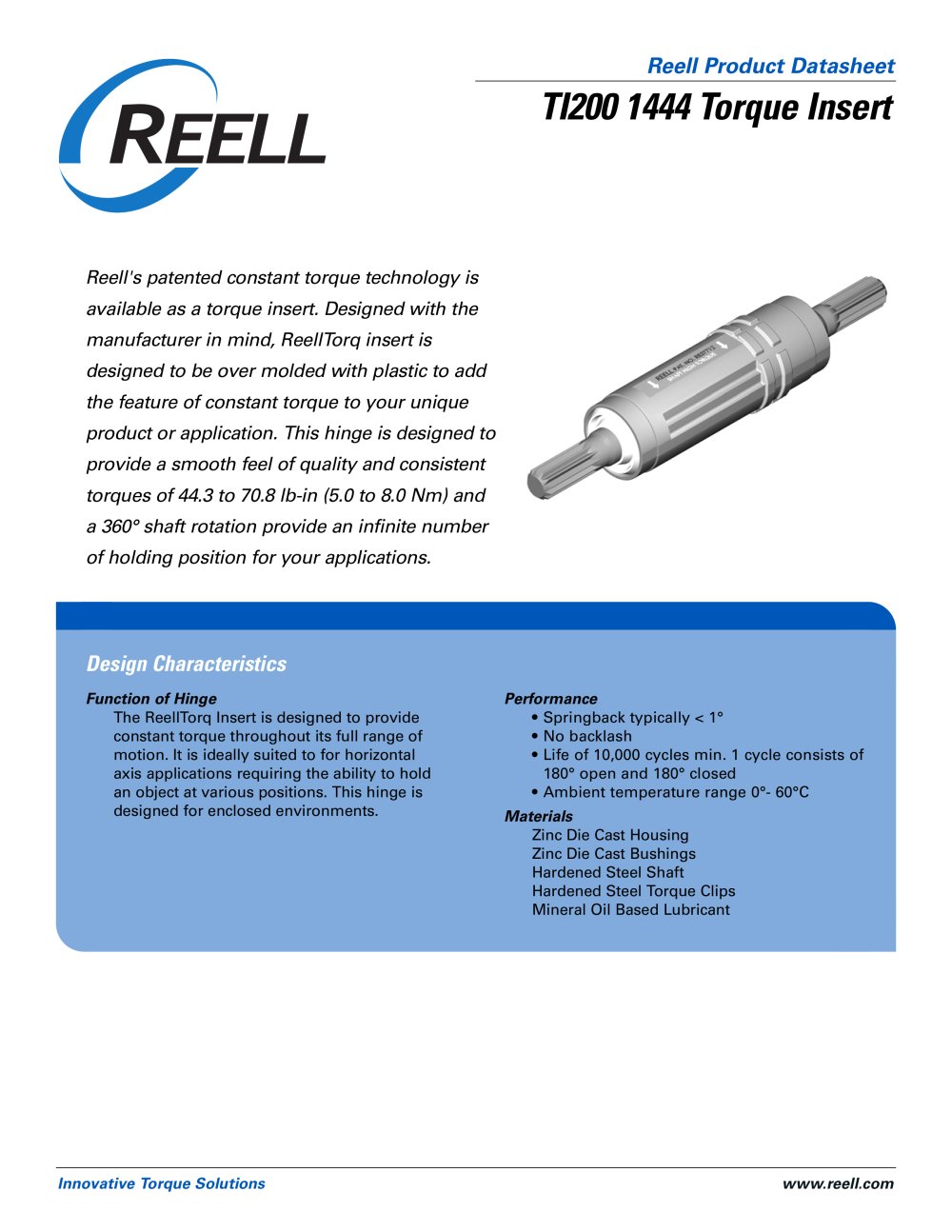

Open the catalog to page 1

Note: Low Torque is 60% in opposite direction > Torque Finish Office Equipment ՕMedical Devices Automotive Enclosures ՕComputer Peripherals Flat Panel Monitors ՕAccess Panels Industrial Enclosures ՕEquipment Guards 44.3, 53.1, 62.0, 70.8 lb-in (5.0, 6.0, 7.0, 8.0 Nm) Plain Mounting Style Designed to be inserted molded into glass filled nylon > TI200 1444 12.07 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com >
