Torque Insert :: TI200 1417
2Pages

Add to favorites

{{requestButtons}}

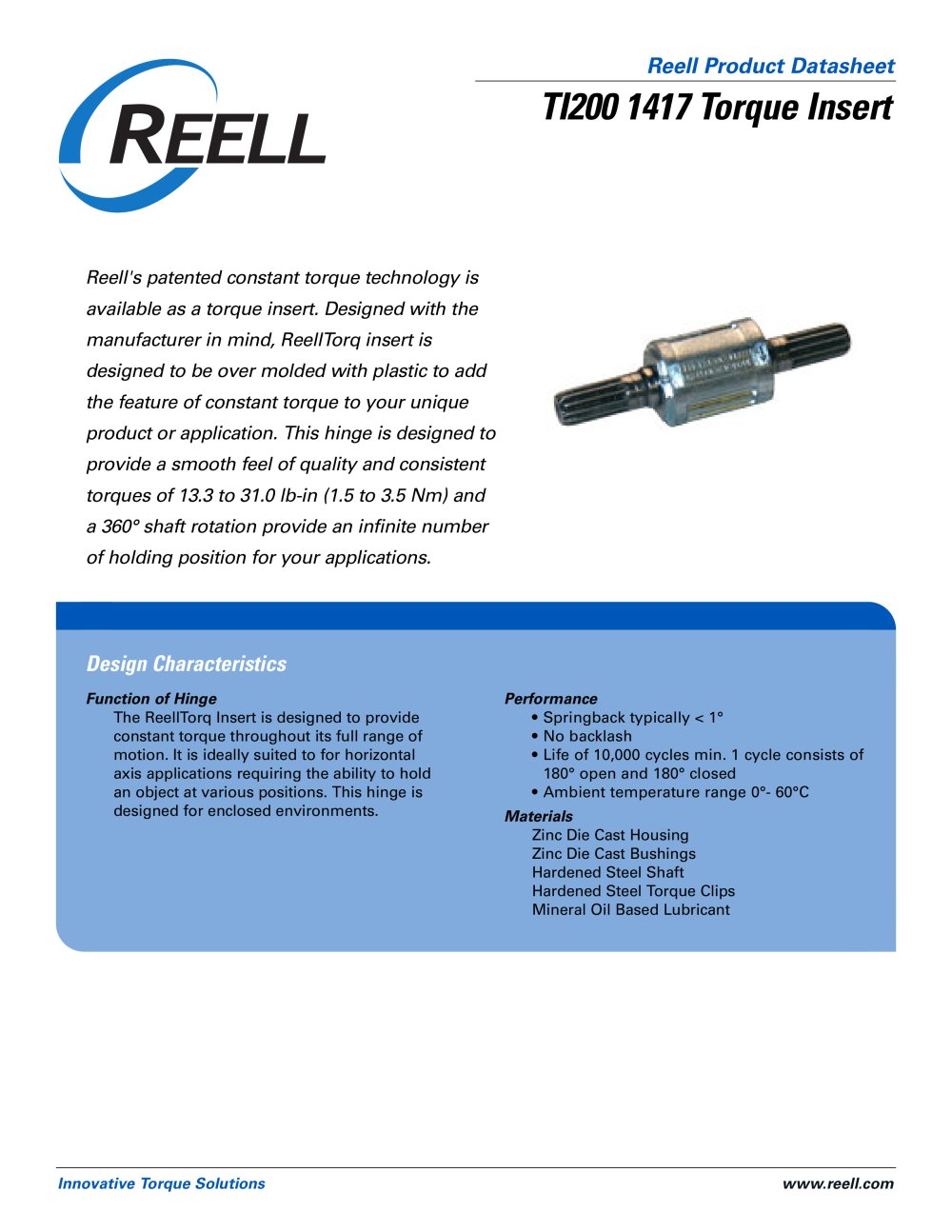

Catalog excerpts

Performance ЕSpringback typically < 1 ЕNo backlash Life of 10,000 cycles min. 1 cycle consists of180հopen and 180closedЕAmbient temperature range 0- 60аC Materials Zinc Die Cast Housing Zinc Die Cast Bushings Hardened Steel Shaft Hardened Steel Torque Clips Mineral Oil Based Lubricant > Function of Hinge The ReellTorq Insert is designed to provide constant torque throughout its full range of motion. It is ideally suited to for horizontal axis applications requiring the ability to hold an object at various positions. This hinge is designed for enclosed environments. Innovative Torque Solutionswww.reell.com >

Open the catalog to page 1

Note: Low Torque is 60% in opposite direction > Torque Finish Office Equipment ՕMedical Devices Automotive Enclosures ՕComputer Peripherals Flat Panel Monitors ՕAccess Panels Industrial Enclosures ՕEquipment Guards 13.3, 17.7, 22.1, 26.6, 31.0 lb-in (1.5, 2.0, 2.5, 3.0, 3.5 Nm) Plain Mounting Style Designed to be inserted molded into glass filled nylon > TI200 1417 12.07 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com >

Open the catalog to page 2
