Torque Insert :: TI100 1523

Product catalog summary

Specifications
The Reell Model TI100 1523 hinge features a plastic package configuration with 360° rotation. It offers consistent torques ranging from 12.4 to 37.2 lb-in (1.4 to 4.2 Nm) to suit various application needs. The hinge is designed to provide constant torque throughout its full range of motion, making it ideal for applications requiring the ability to hold an object at various positions.

Function of Hinge
The TI100 1523 insert is engineered to maintain constant torque, ensuring smooth operation and the ability to hold objects in multiple positions.

Environment
The hinge is designed for corrosion resistance, reducing springback and enhancing appearance while protecting the clip/shaft from harsh environments.

Performance

Springback typically less than 1°
No backlash
Minimum life of 10,000 cycles (1 cycle = 180° open and 180° closed)
Ambient temperature range: 0°- 60°C

Materials

Engineered Plastic Housing
Hardened Steel Shaft
Hardened Steel Torque Clips
Mineral Oil Based Lubricant

Design Characteristics
The technology used in the TI100 1523 Hinge is patented under US Patent No. 5,697,125.

Available Options

Torque options: 12.4, 15.9, 19.5, 23.0, 26.6, 30.1, 33.6, 37.2 lb-in (1.4, 1.8, 2.2, 2.6, 3.0, 3.4, 3.8, 4.2 Nm)
Finish: Black
Mounting Style: Press fit on four tabs, Slip fit on two barrels

Applications

Office Equipment
Medical Devices
Computer Peripherals
Flat Panel Monitors
Access Panels
Industrial Enclosures
Equipment Guards

Catalog excerpts

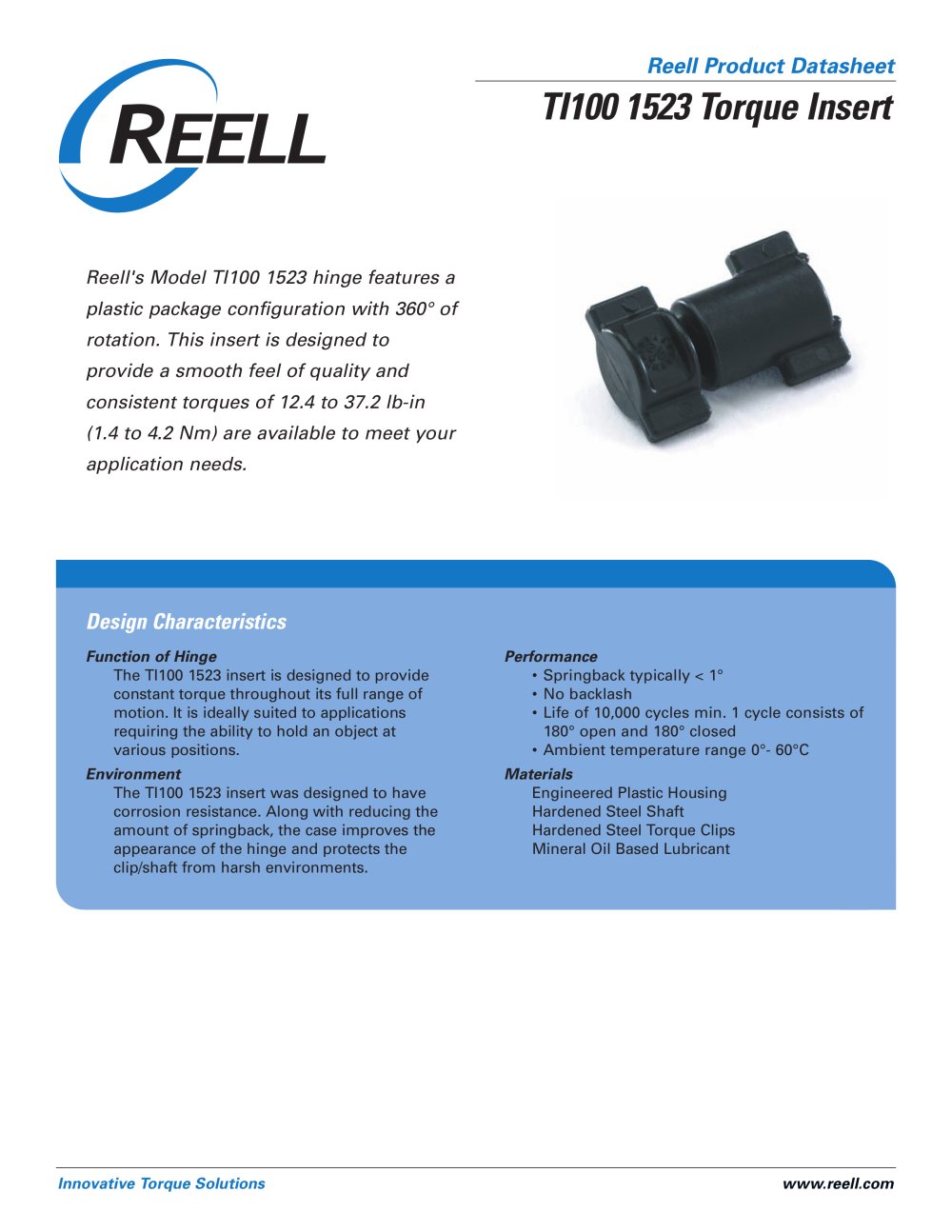

Performance ЕSpringback typically < 1 ЕNo backlash Life of 10,000 cycles min. 1 cycle consists of180հopen and 180closedЕAmbient temperature range 0- 60аC Materials Engineered Plastic Housing Hardened Steel Shaft Hardened Steel Torque Clips Mineral Oil Based Lubricant Environment > The TI100 1523 insert was designed to have corrosion resistance. Along with reducing the amount of springback, the case improves the appearance of the hinge and protects the clip/shaft from harsh environments. Function of Hinge The TI100 1523 insert is designed to provide constant torque throughout its full range of motion. It is ideally suited to applications requiring the ability to hold an object at various positions. Innovative Torque Solutionswww.reell.com >

Open the catalog to page 1

Torque Office Equipment ՕMedical Devices Computer Peripherals ՕFlat Panel Monitors Access Panels ՕIndustrial Enclosures Equipment Guards Finish 12.4, 15.9, 19.5, 23.0, 26.6, 30.1, 33.6, 37.2 lb-in (1.4, 1.8, 2.2, 2.6, 3.0, 3.4, 3.8, 4.2 Nm) Black Mounting Style Press fit on the four tabs Slip fit on the two barrels > The technology used in the TI100 1523 Hinge has been assigned US Patent No. 5,697,125 TI100 1523 05.06 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com...

Open the catalog to page 2
