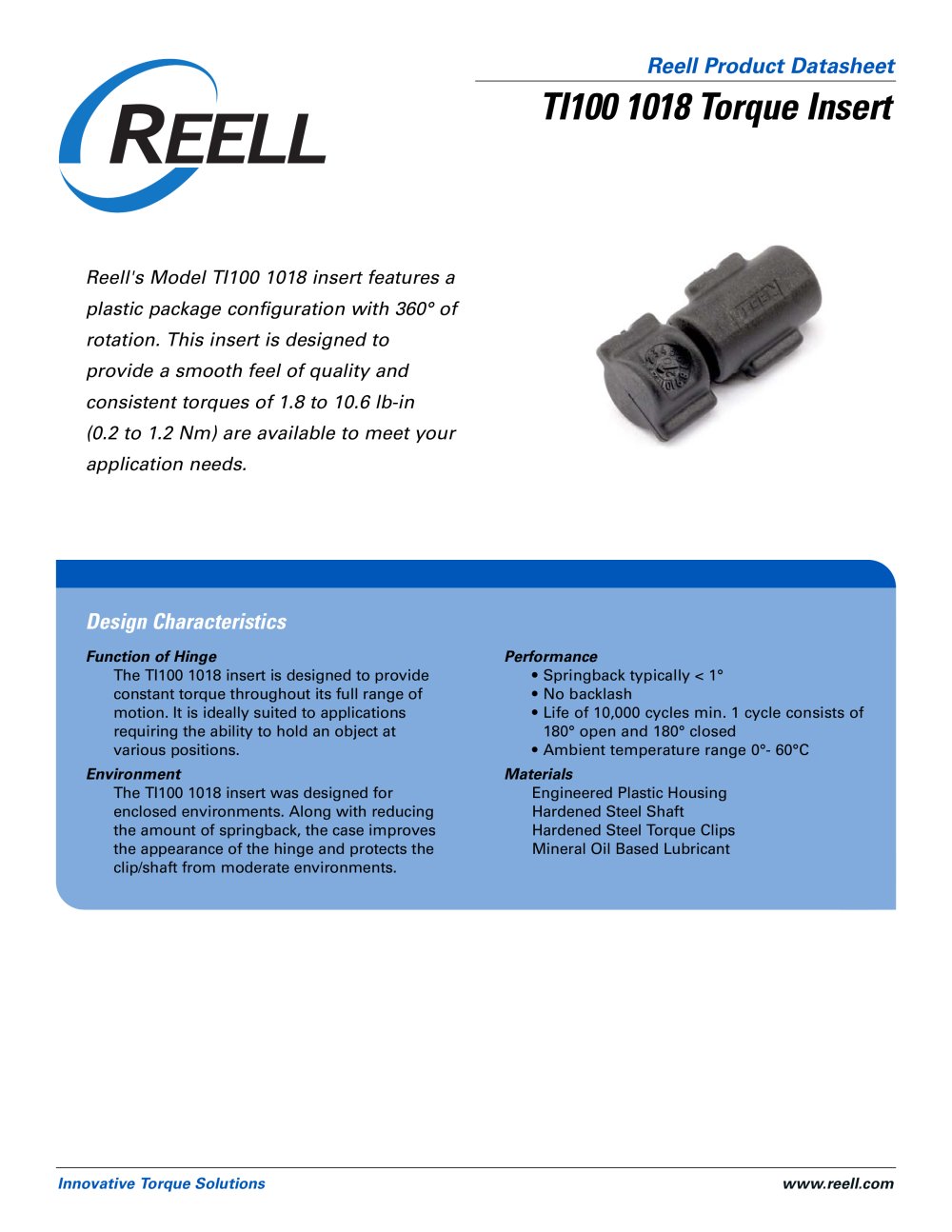

Torque Insert :: TI100 1018
2Pages

Performance ЕSpringback typically < 1 ЕNo backlash Life of 10,000 cycles min. 1 cycle consists of180հopen and 180closedЕAmbient temperature range 0- 60аC Materials Engineered Plastic Housing Hardened Steel Shaft Hardened Steel Torque Clips Mineral Oil Based Lubricant Environment > TheTI100 1018 insert was designed for enclosed environments. Along with reducing the amount of springback, the case improves the appearance of the hinge and protects the clip/shaft from moderate environments. Function of Hinge The TI100 1018 insert is designed to provide constant torque throughout its full range of motion. It is ideally suited to applications requiring the ability to hold an object at various positions. Innovative Torque Solutionswww.reell.com >

Torque Office Equipment ՕMedical Devices Computer Peripherals ՕFlat Panel Displays Access Panels ՕIndustrial Enclosures Equipment Guards Finish 1.8, 3.5, 5.3, 7.1, 8.9, 10.6 lb-in (0.2, 0.4, 0.6, 0.8, 1.0, 1.2 Nm) Black Mounting Style Press fit on the four tabs Slip fit on the two barrels > The technology used in the TI100 1018 Insert has been assigned US Patent No. 5,697,125 TI100 1018 01.08 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com >
