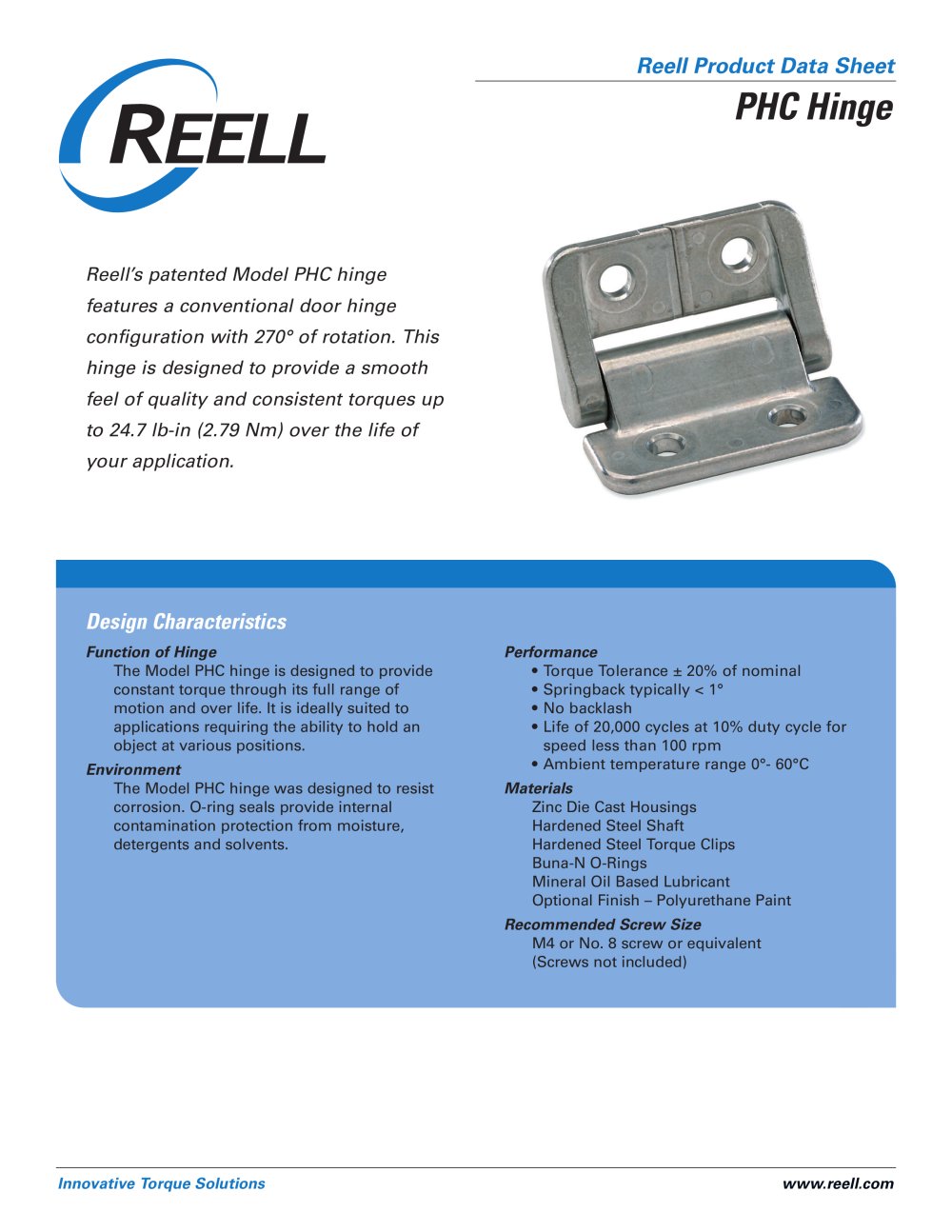

Recommended Screw Size Performance M4 or No. 8 screw or equivalent (Screws not included) Materials Torque Tolerance ձ20% of nominal Springback typically < 1հ No backlash ՕLife of 20,000 cycles at 10% duty cycle forspeed less than 100 rpmAmbient temperature range 0հ- 60C Zinc Die Cast Housings Hardened Steel Shaft Hardened Steel Torque Clips Buna-N O-Rings Mineral Oil Based Lubricant Optional Finish Ж Polyurethane Paint Environment > The Model PHC hinge was designed to resist corrosion. O-ring seals provide internal contamination protection from moisture, detergents and solvents. Function of Hinge The Model PHC hinge is designed to provide constant torque through its full range of motion and over life. It is ideally suited to applications requiring the ability to hold an object at various positions. Innovative Torque Solutionswww.reell.com >

Torque Office Equipment ՕMedical Devices Computer Peripherals ՕFlat Panel Monitors Access Panels ՕIndustrial Enclosures Equipment Guards Finish 3.9, 6.9, 10.8, 13.9, 17.8, 20.8, 24.7 lb-in (0.44, 0.78, 1.22, 1.57, 2.01, 2.35, 2.79 Nm) Plain, Black, White, Silver, Beige Mounting Style Standard Mounting Holes, Counter Sunk Mounting Holes > Thetechnology used in the PHC Hinge has been assigned US Patent No. RE37712 PHC 01.08 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque...
