Hinge :: PHB
2Pages

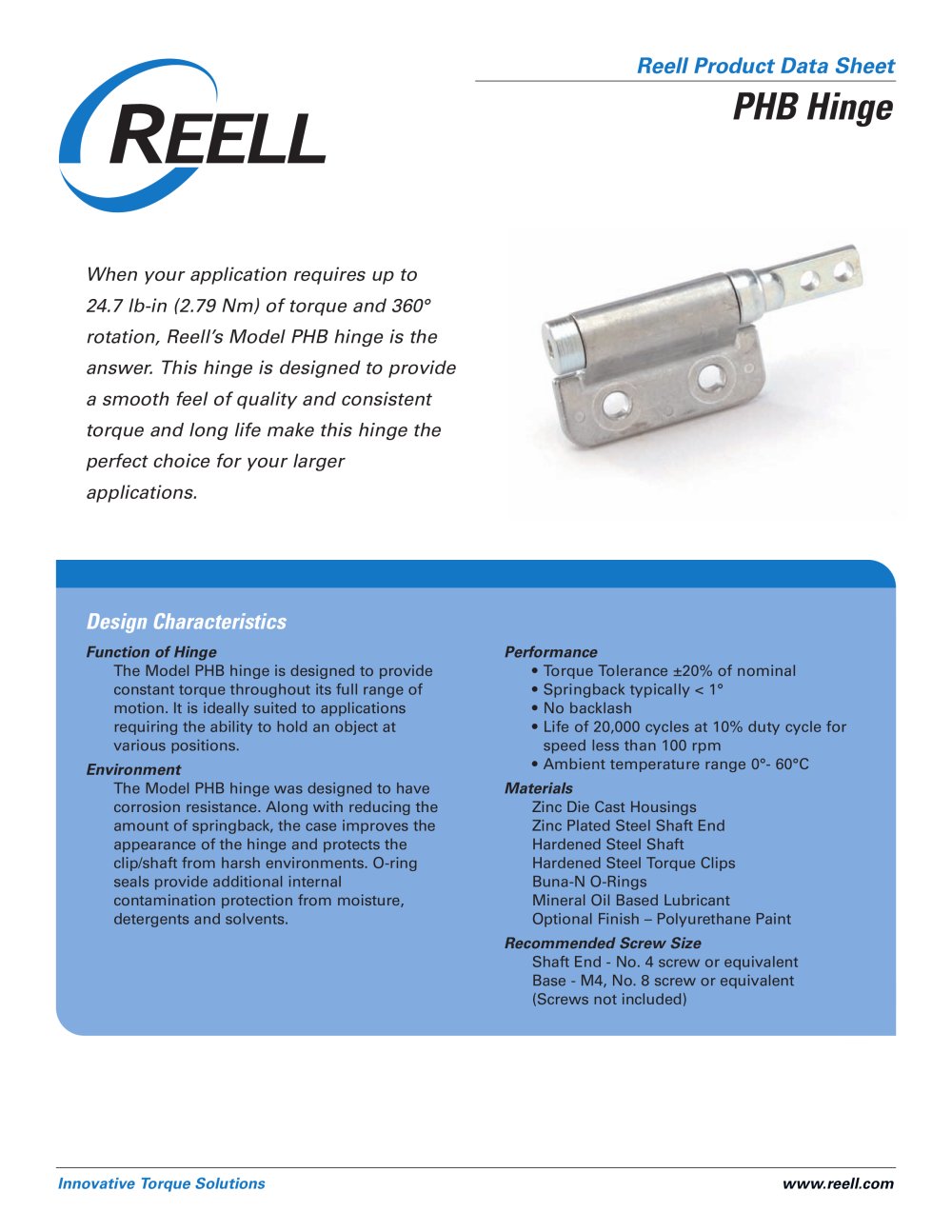

Recommended Screw Size Shaft End - No. 4 screw or equivalent Base - M4, No. 8 screw or equivalent (Screws not included) Performance Materials Torque Tolerance ձ20% of nominal Springback typically < 1հ No backlash ՕLife of 20,000 cycles at 10% duty cycle forspeed less than 100 rpmAmbient temperature range 0հ- 60C > Zinc Die Cast Housings Zinc Plated Steel Shaft End Hardened Steel Shaft Hardened Steel Torque Clips Buna-N O-Rings Mineral Oil Based Lubricant Optional Finish Җ Polyurethane Paint Environment > The Model PHB hinge was designed to have corrosion resistance. Along with reducing the amount of springback, the case improves the appearance of the hinge and protects the clip/shaft from harsh environments. O-ring seals provide additional internal contamination protection from moisture, detergents and solvents. Function of Hinge The Model PHB hinge is designed to provide constant torque throughout its full range of motion. It is ideally suited to applications requiring the ability to hold an object at various positions. Innovative Torque Solutionswww.reell.com >

Torque Office Equipment ՕMedical Cabinets Laptop/Notebook Computers ՕComputer Peripherals Access Panels ՕIndustrial Enclosures Equipment Guards Finish 3.9, 6.9, 10.8, 13.9, 17.8, 20.8, 24.7 lb-in (0.44, 0.78, 1.22, 1.57, 2.01, 2.35, 2.79 Nm) Plain, Black, White, Silver, Beige Mounting Style Mounting Orientation Standard Mounting Holes, Counter Sunk Mounting Holes On Housing Left, Right, Dual Ended > Mounting hinge out of axial alignment may cause premature hinge failure. > The technology used in the PHB Hinge has been assigned US Patent No. RE37712 Other configuration prints available on...
