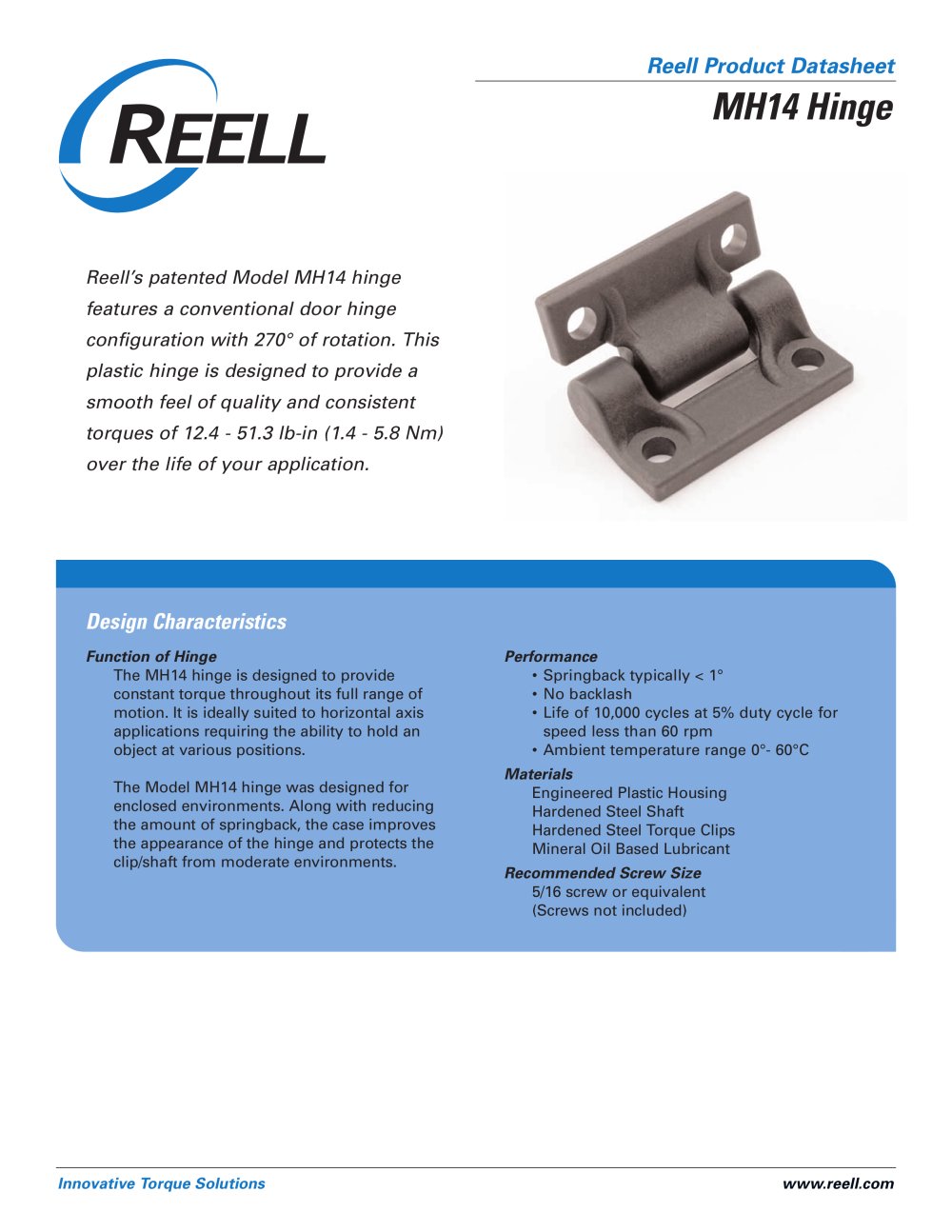

Hinge :: MH14
2Pages

Performance Recommended Screw Size Springback typically < 1հ No backlash ՕLife of 10,000 cycles at 5% duty cycle forspeed less than 60 rpmAmbient temperature range 0հ- 60C Materials 5/16 screw or equivalent (Screws not included) Engineered Plastic Housing Hardened Steel Shaft Hardened Steel Torque Clips Mineral Oil Based Lubricant > Function of Hinge The MH14 hinge is designed to provide constant torque throughout its full range of motion. It is ideally suited to horizontal axis applications requiring the ability to hold an object at various positions.The Model MH14 hinge was designed forenclosed environments. Along with reducing the amount of springback, the case improves the appearance of the hinge and protects the clip/shaft from moderate environments. Innovative Torque Solutionswww.reell.com >

Torque Black Office Equipment ՕMedical Devices Computer Peripherals ՕFlat Panel Monitors Access Panels ՕIndustrial Enclosures Equipment Guards Mounting Style 12.4, 15.9, 19.5, 23.0, 26.6, 30.1, 33.6, 37.2, 40.7, 44.3, 47.8, 51.3 lb-in (1.4, 1.8, 2.2, 2.6, 3.0, 3.4, 3.8, 4.2, 4.6, 5.0, 5.4, 5.8 Nm) Standard Mounting Holes > The technology used in the MH14 Hinge is Patented. MH14 02.06 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com >
