Hinge :: 5mm

Product catalog summary

Function of Hinge
The 5mm hinge is engineered to deliver constant torque across its full range of motion, making it ideal for applications that require holding an object in various positions.

Environment
This hinge is intended for indoor use and offers minimal corrosion protection.

Performance

Springback is typically less than 1°.
No backlash is present.
It has a lifespan of 25,000 cycles at a 10% duty cycle for speeds under 100 rpm.
Operates within an ambient temperature range of 0° - 60°C.

Materials

Zinc Die Cast Housings
Hardened Steel Shaft
Hardened Steel Torque Clips
Mineral Oil Based Lubricant

Design Characteristics
The Reell 5mm hinge is designed for portable computer and enclosure applications, offering a diameter of only 5mm for added design flexibility. It provides a smooth quality feel and consistent torques ranging from 1.8 to 5.3 lb-in (0.2 to 0.6 Nm) with a 360° shaft rotation, allowing for an infinite number of holding positions.

Patent Information
The technology used in the 5mm Hinge is protected under US Patent No. RE37712.

Available Options

Torque: 1.8, 2.7, 3.5, 4.4, 5.3 lb-in (0.2, 0.3, 0.4, 0.5, 0.6 Nm)
Stops: No Stop
Finish: Plain Zinc
Mounting Style: Rivet Mount

Applications

Laptop/Notebook Computers
Flat Panel Display/Monitor Positioning
Office Equipment
Medical Cabinets
Computer Peripherals
Access Panels

Catalog excerpts

Performance ЕSpringback typically < 1 ЕNo backlash Life of 25,000 cycles at 10% duty cycle forspeed less than 100 rpmՕAmbient temperature range 0- 60аC Materials Zinc Die Cast Housings Hardened Steel Shaft Hardened Steel Torque Clips Mineral Oil Based Lubricant Environment > This hinge was designed for indoor use, and has minimal corrosion protection. Function of Hinge The 5mm hinge is designed to provide constant torque throughout its full range of motion. It is ideally suited to applications requiring the ability to hold an object at various positions. Innovative Torque Solutionswww.reell.com >

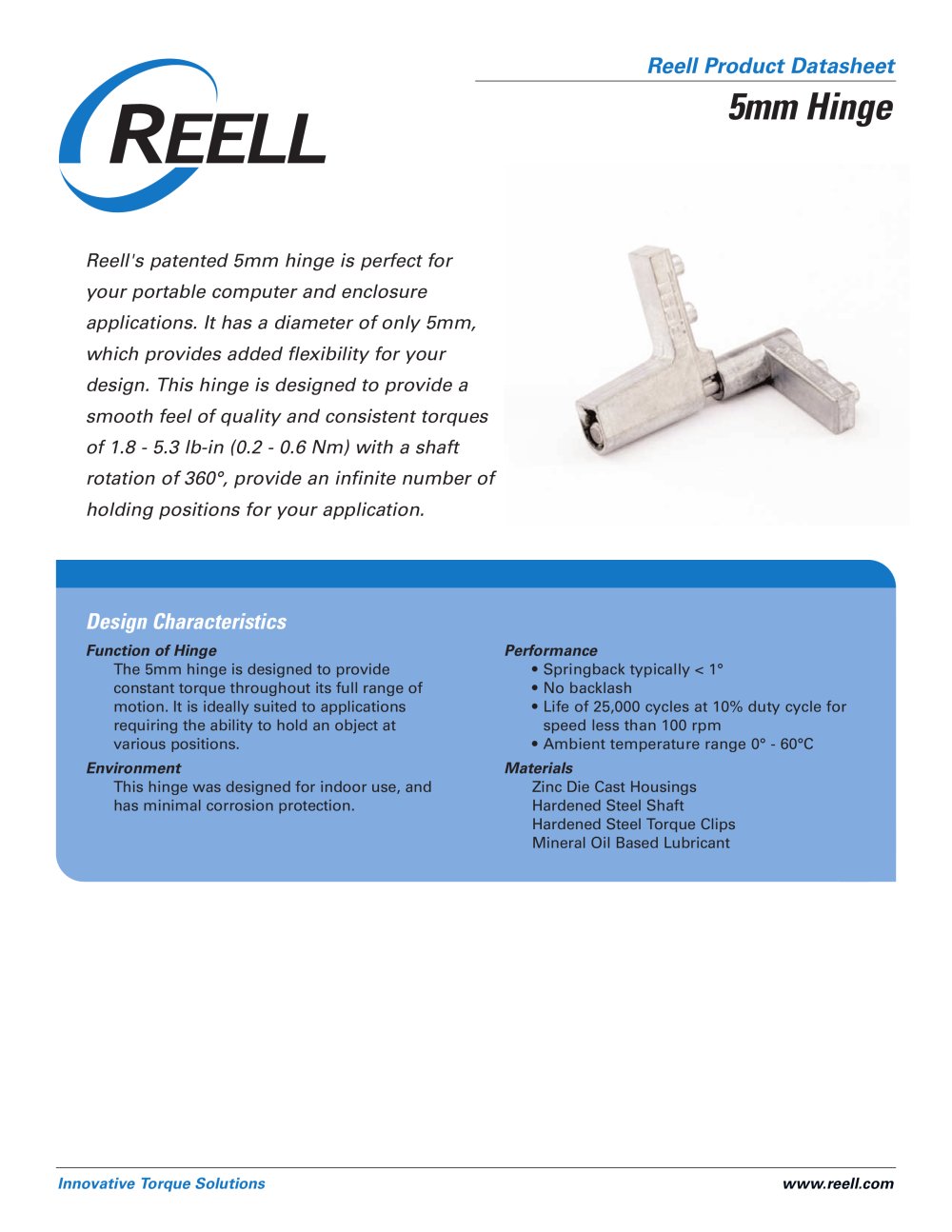

Open the catalog to page 1

Torque Laptop/Notebook Computers ՕFlat Panel Display/Monitor Positioning Office Equipment ՕMedical Cabinets Computer Peripherals ՕAccess Panels Stops 1.8, 2.7, 3.5, 4.4, 5.3 lb-in (0.2, 0.3, 0.4, 0.5, 0.6 Nm) No Stop Finish Plain Zinc Mounting Style Rivet Mount > The technology used in the 5mm Hinge has been assigned US Patent No. RE37712 5mm 01.08 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com >

Open the catalog to page 2
