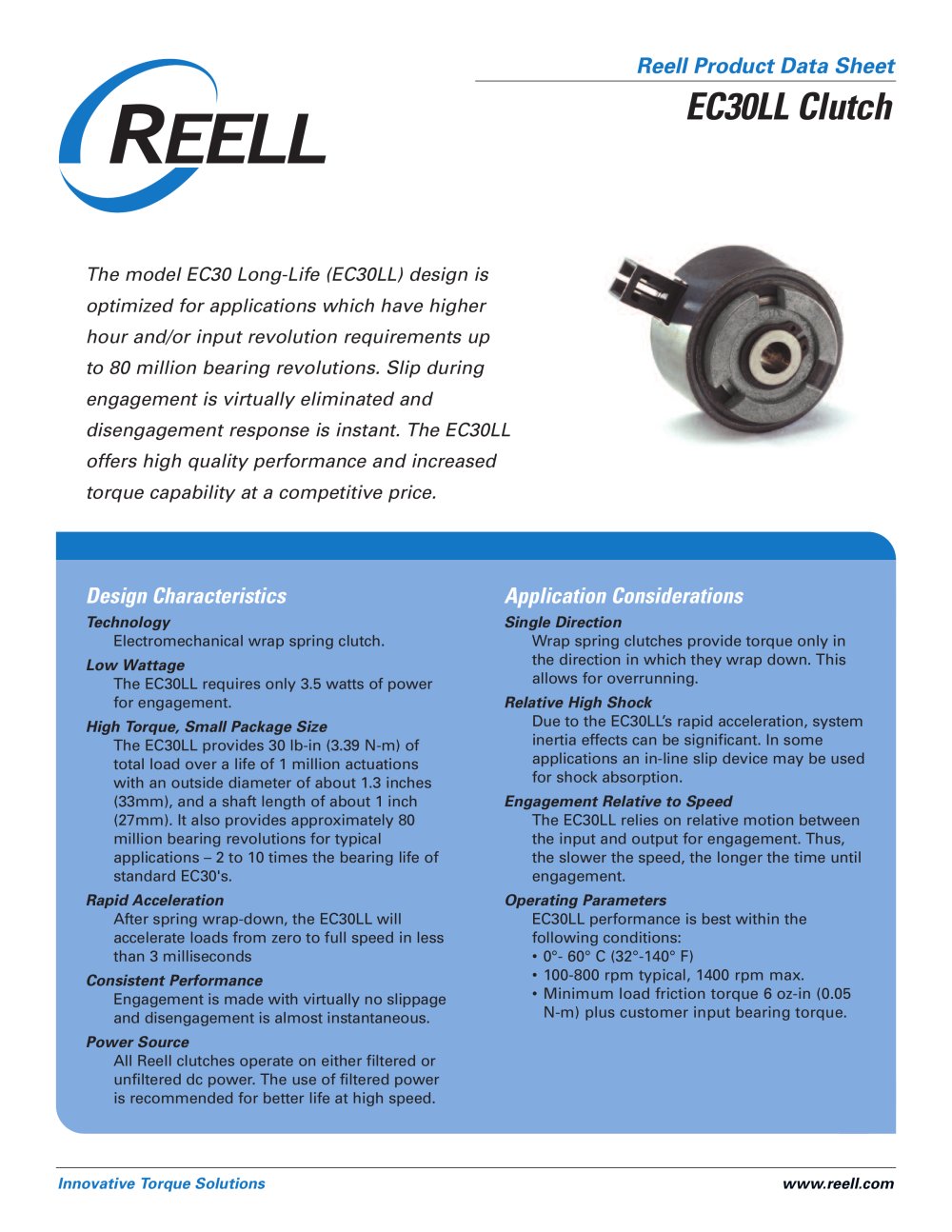

Operating Parameters Technology Single Direction Engagement Relative to Speed Relative High Shock EC30LL performance is best within the following conditions: 0հ- 60C (32а-140F) Е100-800 rpm typical, 1400 rpm max. Minimum load friction torque 6 oz-in (0.05N-m) plus customer input bearing torque. Electromechanical wrap spring clutch. Wrap spring clutches provide torque only in the direction in which they wrap down. This allows for overrunning. The EC30LL relies on relative motion between the input and output for engagement. Thus, the slower the speed, the longer the time until engagement. Due to the EC30LLՒsrapid acceleration, system inertia effects can be significant. In some applications an in-line slip device may be used for shock absorption. Low Wattage Rapid Acceleration High Torque, Small Package Size Consistent Performance The EC30LL requires only 3.5 watts of power for engagement. Power Source After spring wrap-down, the EC30LL will accelerate loads from zero to full speed in less than 3 milliseconds The EC30LL provides 30 lb-in (3.39 N-m) oftotal load over a life of 1 million actuationswith an outside diameter of about 1.3 inches (33mm), and a shaft length of about 1 inch (27mm). It also provides approximately 80 million bearing revolutions for typical applications 2 to 10 times the bearing life of standard EC30's. Engagement is made with virtually no slippage and disengagement is almost instantaneous. All Reell clutches operate on either filtered or unfiltered dc power. The use of filtered power is recommended for better life at high speed. Innovative Torque Solutionswww.reell.com >

Direction Paper Feed Systems ՕCopiers/Printers Finishing Equipment ՕCollators/Sorters Mailing Equipment ՕTicket and Receipt Dispensers Revolving Media Displays ՕPackaging Equipment CW, CCW Bore 1/4 inch, 5/16 inch, 6mm, 8mm Shaft Cross Pin Only Voltage 12 VDC, 24 VDC Electrical Connection Molded Connector Only > EC30LL 02.06 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com >
