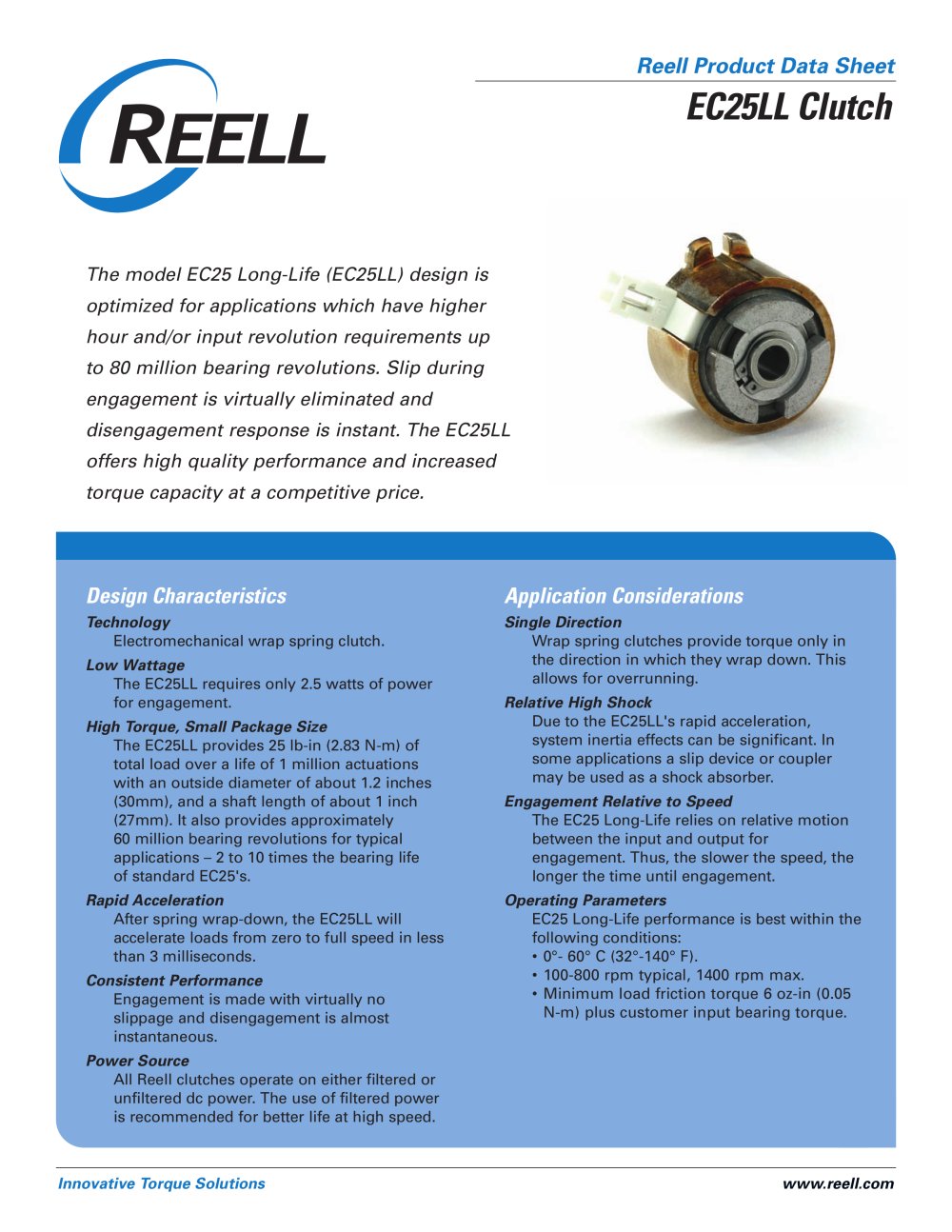

Operating Parameters Technology Single Direction Engagement Relative to Speed Relative High Shock EC25 Long-Life performance is best within the following conditions: 0հ- 60C (32а-140F). Е100-800 rpm typical, 1400 rpm max. Minimum load friction torque 6 oz-in (0.05N-m) plus customer input bearing torque. Electromechanical wrap spring clutch. Wrap spring clutches provide torque only in the direction in which they wrap down. This allows for overrunning. The EC25 Long-Life relies on relative motion between the input and output for engagement. Thus, the slower the speed, the longer the time until engagement. Due to the EC25LL's rapid acceleration, system inertia effects can be significant. In some applications a slip device or coupler may be used as a shock absorber. Low Wattage Rapid Acceleration High Torque, Small Package Size Consistent Performance Power Source The EC25LL requires only 2.5 watts of power for engagement. After spring wrap-down, the EC25LL will accelerate loads from zero to full speed in less than 3 milliseconds. The EC25LL provides 25 lb-in (2.83 N-m) oftotal load over a life of 1 million actuationswith an outside diameter of about 1.2 inches (30mm), and a shaft length of about 1 inch (27mm). It also provides approximately 60 million bearing revolutions for typical applications Ֆ 2 to 10 times the bearing life of standard EC25's. Engagement is made with virtually no slippage and disengagement is almost instantaneous. All Reell clutches operate on either filtered or unfiltered dc power.The use of filtered power is recommended for better life at high speed. Innovative Torque Solutionswww.reell.com >

Direction Paper Feed Systems ՕCopiers/Printers Finishing Equipment ՕCollators/Sorters Mailing Equipment ՕTicket and Receipt Dispensers Revolving Media Displays ՕPackaging Equipment CW, CCW Bore 1/4 inch, 6mm Shaft Cross Pin Only Voltage 12 VDC, 24 VDC Electrical Connection Molded Connector, 8" Leaded Coil > EC25LL 02.06 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com >
