Clutch :: EC20 CBLL
2Pages

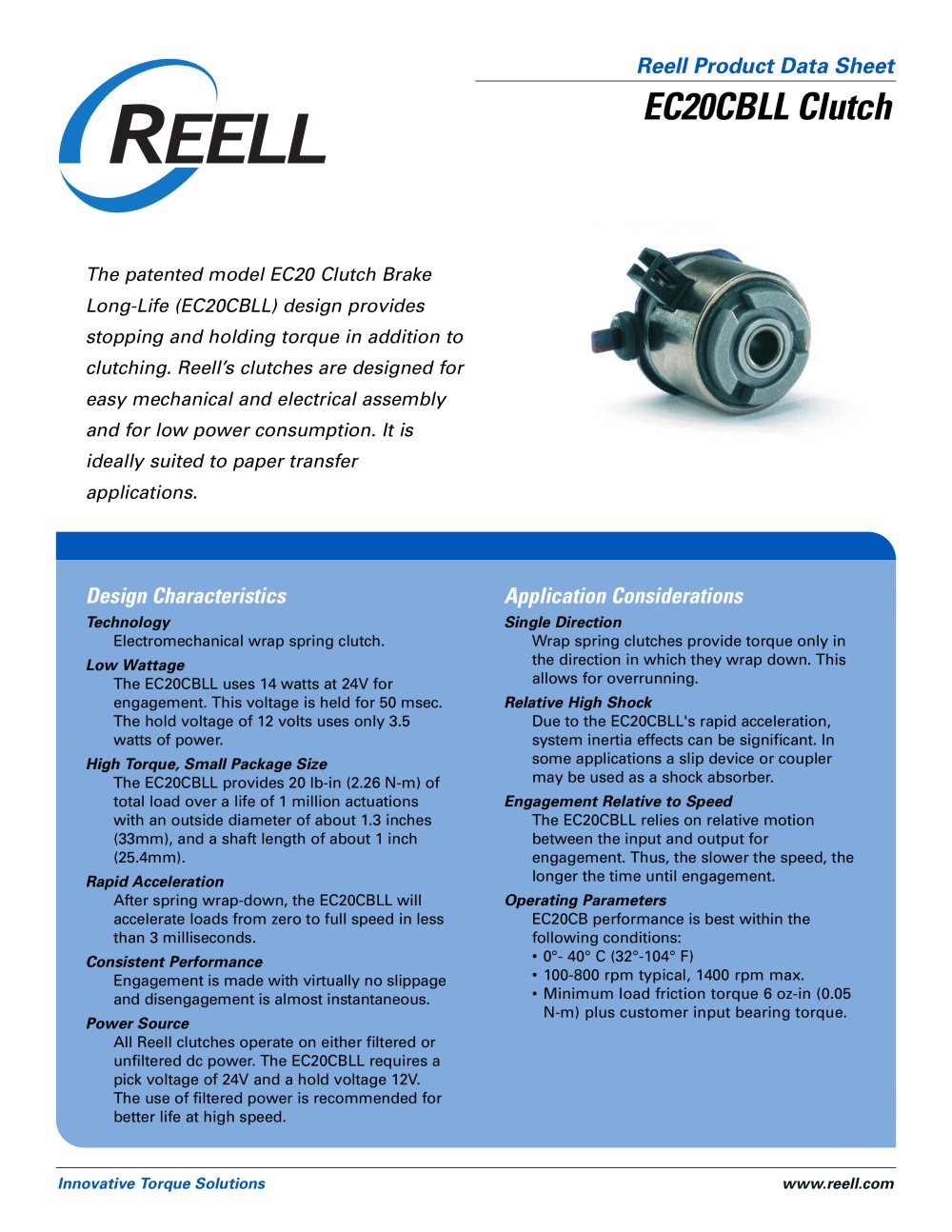

Operating Parameters Technology Rapid Acceleration Consistent Performance Single Direction Engagement Relative to Speed Relative High Shock EC20CB performance is best within the following conditions: ҕ0- 40аC (32-104аF) 100-800 rpm typical, 1400 rpm max. ՕMinimum load friction torque 6 oz-in (0.05N-m) plus customer input bearing torque. The EC20CBLL relies on relative motion between the input and output for engagement. Thus, the slower the speed, the longer the time until engagement. Power Source After spring wrap-down, the EC20CBLL will accelerate loads from zero to full speed in less than 3 milliseconds. High Torque, Small Package Size Electromechanical wrap spring clutch. Engagement is made with virtually no slippage and disengagement is almost instantaneous. Wrap spring clutches provide torque only in the direction in which they wrap down. This allows for overrunning. Due to the EC20CBLL's rapid acceleration, system inertia effects can be significant. In some applications a slip device or coupler may be used as a shock absorber. Low Wattage The EC20CBLL provides 20 lb-in (2.26 N-m) of total load over a life of 1 million actuations with an outside diameter of about 1.3 inches (33mm), and a shaft length of about 1 inch (25.4mm). All Reell clutches operate on either filtered or unfiltered dc power. The EC20CBLL requires a pick voltage of 24V and a hold voltage 12V. The use of filtered power is recommended for better life at high speed. The EC20CBLL uses 14 watts at 24V for engagement. This voltage is held for 50 msec. The hold voltage of 12 volts uses only 3.5 watts of power. Innovative Torque Solutionswww.reell.com >

Direction Paper Feed Systems ՕCopiers/Printers Finishing Equipment ՕCollators/Sorters Mailing Equipment ՕTicket and Receipt Dispensers Revolving Media Displays ՕPackaging Equipment CW, CCW Bore 6mm, 8mm, 1/4 inch, 5/16 inch Shaft Cross Pin Only Voltage 24 V pick / 12 V Hold Electrical Connection Molded Connector Only > EC20CBLL 02.06 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com >
