Overview
The Model EC15 is an electromechanical wrap spring clutch designed to transfer up to 15 lb-in (1.7 N-m) of total load with consistent performance over one million actuations. It is engineered for easy assembly and low power consumption, offering high torque capacity at a competitive price.

Design Characteristics

Technology: Electromechanical wrap spring clutch.
Low Wattage: Requires only 2.5 watts for engagement.
High Torque, Small Size: Provides 15 lb-in (1.7 N-m) of load with a compact size of 1.2 inches (30mm) in diameter and 1 inch (27mm) in shaft length.
Rapid Acceleration: Accelerates loads from zero to full speed in less than 3 milliseconds.
Consistent Performance: Engagement occurs with minimal slippage and disengagement is nearly instantaneous.
Power Source: Operates on filtered or unfiltered DC power, with filtered power recommended for better performance at high speeds.

Application Considerations

Single Direction: Provides torque only in the direction of wrap-down, allowing for overrunning.
Relative High Shock: Rapid acceleration can cause significant system inertia effects; a slip device or coupler may be used as a shock absorber.
Engagement Relative to Speed: Relies on relative motion between input and output for engagement; slower speeds result in longer engagement times.

Operating Parameters

Optimal performance within 0° - 40° C (32°-104° F).
Typical operating speed of 100-800 rpm, with a maximum of 1400 rpm.
Minimum load friction torque of 6 oz-in (0.05 N-m) plus customer input bearing torque.

Available Options

Direction: CW or CCW.
Bore: 6mm or 1/4 inch.
Voltage: 12 VDC or 24 VDC.
Electrical Connection: Molded connector or 8" leaded coil.

Applications
The EC15 is suitable for various applications including paper feed systems, copiers/printers, finishing equipment, collators/sorters, mailing equipment, ticket and receipt dispensers, revolving media displays, and packaging equipment.

Catalog excerpts

Technology Single Direction Relative High Shock Electromechanical wrap spring clutch. Operating Parameters Engagement Relative to Speed Wrap spring clutches provide torque only in the direction in which they wrap down. This allows for overrunning. Due to the EC15's rapid acceleration, system inertia effects can be significant. In some applications a slip device or coupler may beused as a shock absorber. Low Wattage EC15 performance is best within the following conditions: ҕ0- 40аC (32-104аF) 100-800 rpm typical, 1400 rpm max. ՕMinimum load friction torque 6 oz-in (0.05 N-m) plus customer input bearing torque. Rapid Acceleration The EC15 relies on relative motion between the input and output for engagement. Thus, the slower the speed, the longer the time until engagement. High Torque, Small Package Size Consistent Performance Power Source The EC15 requires only 2.5 watts of power for engagement. After spring wrap-down, the EC15 will accelerate loads from zero to full speed in less than 3 milliseconds. The EC15 provides 15 lb-in (1.7 N-m) of total load over a life of 1 million actuations with an outside diameter of about 1.2 inches (30mm), and a shaft length of about 1 inch (27mm). Engagement is made with virtually no slippage and disengagement is almost instantaneous. All Reell clutches operate on either filtered or unfiltered dc power. The use of filtered power is recommended for better life at high speed. Innovative Torque Solutionswww.reell.com >

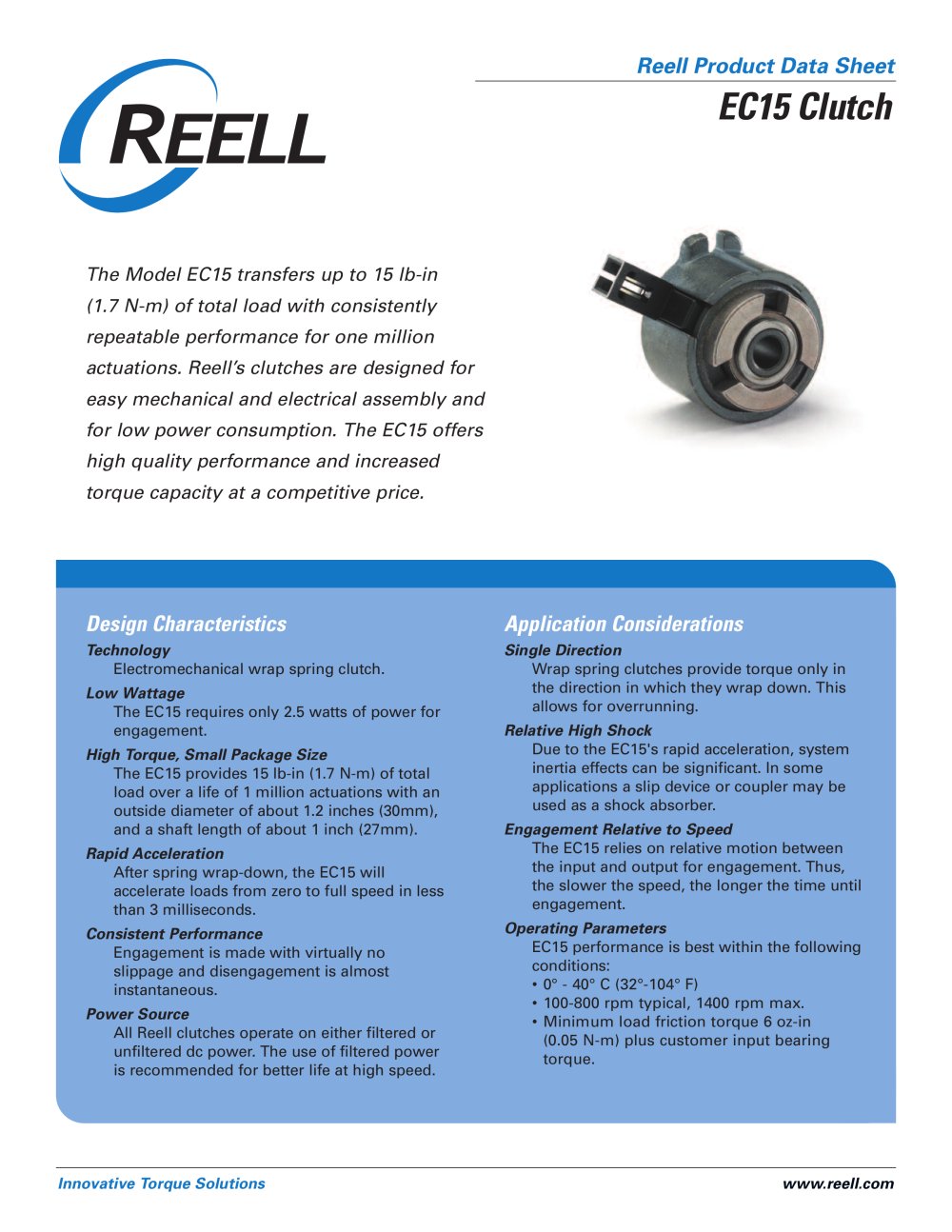

Open the catalog to page 1

Direction Paper Feed Systems ՕCopiers/Printers Finishing Equipment ՕCollators/Sorters Mailing Equipment ՕTicket and Receipt Dispensers Revolving Media Displays ՕPackaging Equipment CW, CCW Bore 6mm, 1/4 inch Voltage 12 VDC, 24 VDC Electrical Connection Molded Connector, 8" leaded coil > EC15 02.06 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com >
