Self-priming centrifugal pumps MEA

Product catalog summary

Overview: This document provides technical specifications for monobloc self-priming centrifugal pumps, specifically the MEA series by Rovatti. It includes detailed performance data across various models, focusing on flow rates and total manometric head.

Specifications:

Flow Rates: The document lists flow rates in liters per minute (l/min), cubic meters per hour (m3/h), and liters per second (l/s) for different pump models.
Total Manometric Head: The total manometric head is provided in meters for each pump model, indicating the maximum height the pump can lift water.
Pump Models: Various models such as MEA1-1"½K, MEA4-1"½R, MEA1,5-2"K, and others are detailed with their respective performance metrics.

Performance Data:

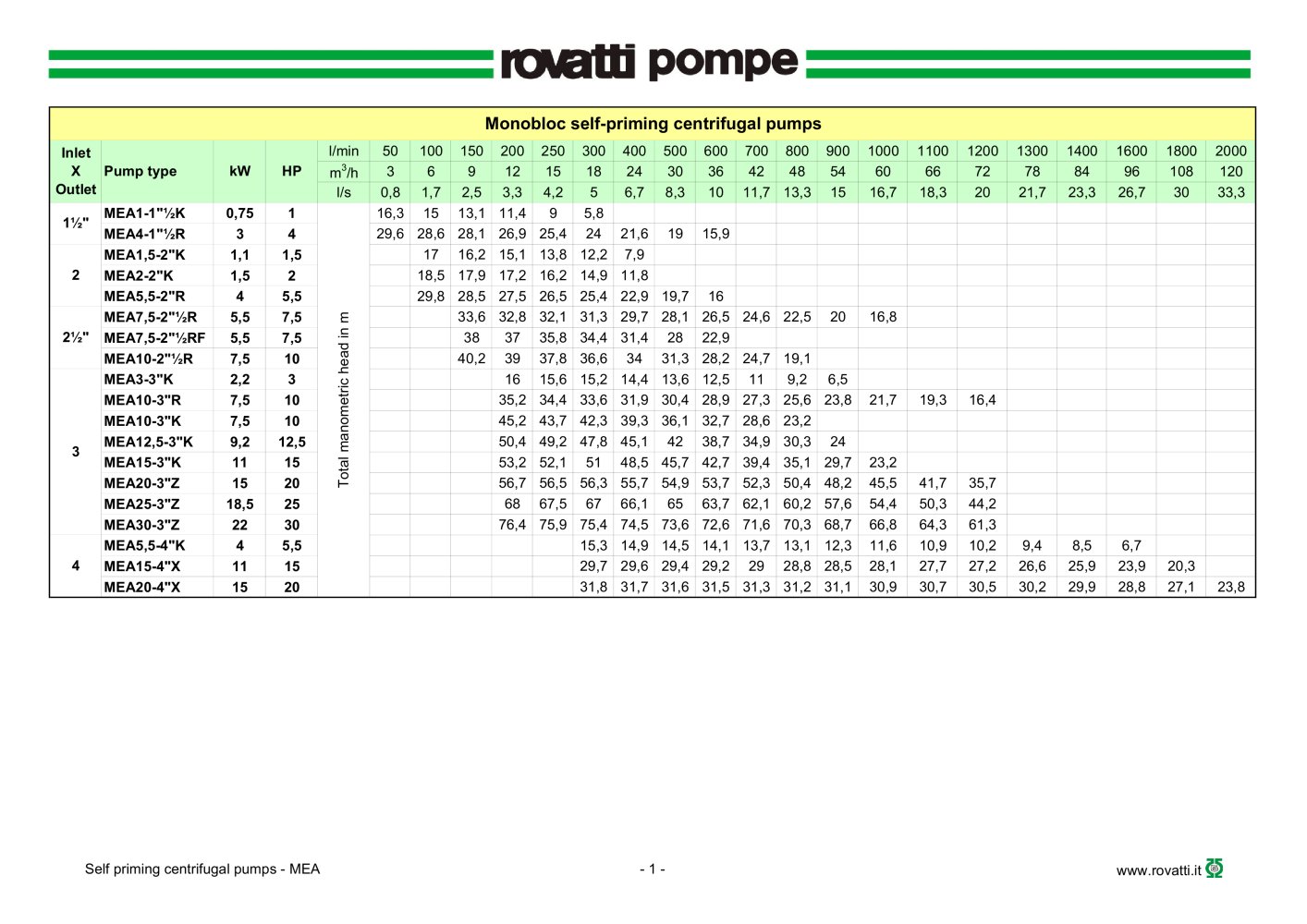

The document includes a table with performance data for each pump model, showing the relationship between flow rates and total manometric head.
Key models like MEA20-3"Z and MEA25-3"Z demonstrate higher performance with greater flow rates and head capabilities.

Recommendations:

Selection of a pump model should be based on the specific flow rate and head requirements of the application.
Consideration of inlet and outlet sizes is crucial for compatibility with existing systems.

Self-priming centrifugal pumps MEA

Self-priming centrifugal pumps MEA

All Rovatti Pompe catalogs and technical brochures
