Electric submersible pumps 3ER

Product catalog summary

Overview: This document provides technical specifications for electric submersible pumps, specifically focusing on 3-inch models. It includes data on flow rates, power consumption, and performance metrics.

Specifications:

Flow Rates: The pumps have flow rates ranging from 5 to 45 liters per minute (l/min), which correspond to 0.3 to 2.7 cubic meters per hour (m3/h).
Power Consumption: The absorbed power is detailed in kilowatts (kW) and horsepower (HP), with values provided for different models and configurations.
Motor Power: The document lists motor power requirements for both single-phase and three-phase configurations.
Intensity and Cosϕ: Electrical intensity and power factor (Cosϕ) are specified for each pump model.

Performance Metrics:

Total Manometric Head: The total manometric head is provided in meters for each pump model, indicating the maximum height the pump can achieve.

Models:

3ER/15 - 30,5MN: Offers a range of power and performance metrics suitable for various applications.
3ER/23 - 30,7MN: Provides higher power and efficiency, suitable for more demanding tasks.
3ER/30 - 31MN: The most powerful model, designed for high-performance requirements.

Recommendations: The document suggests selecting a pump model based on specific flow rate and power requirements, ensuring compatibility with the intended application.

Catalog excerpts

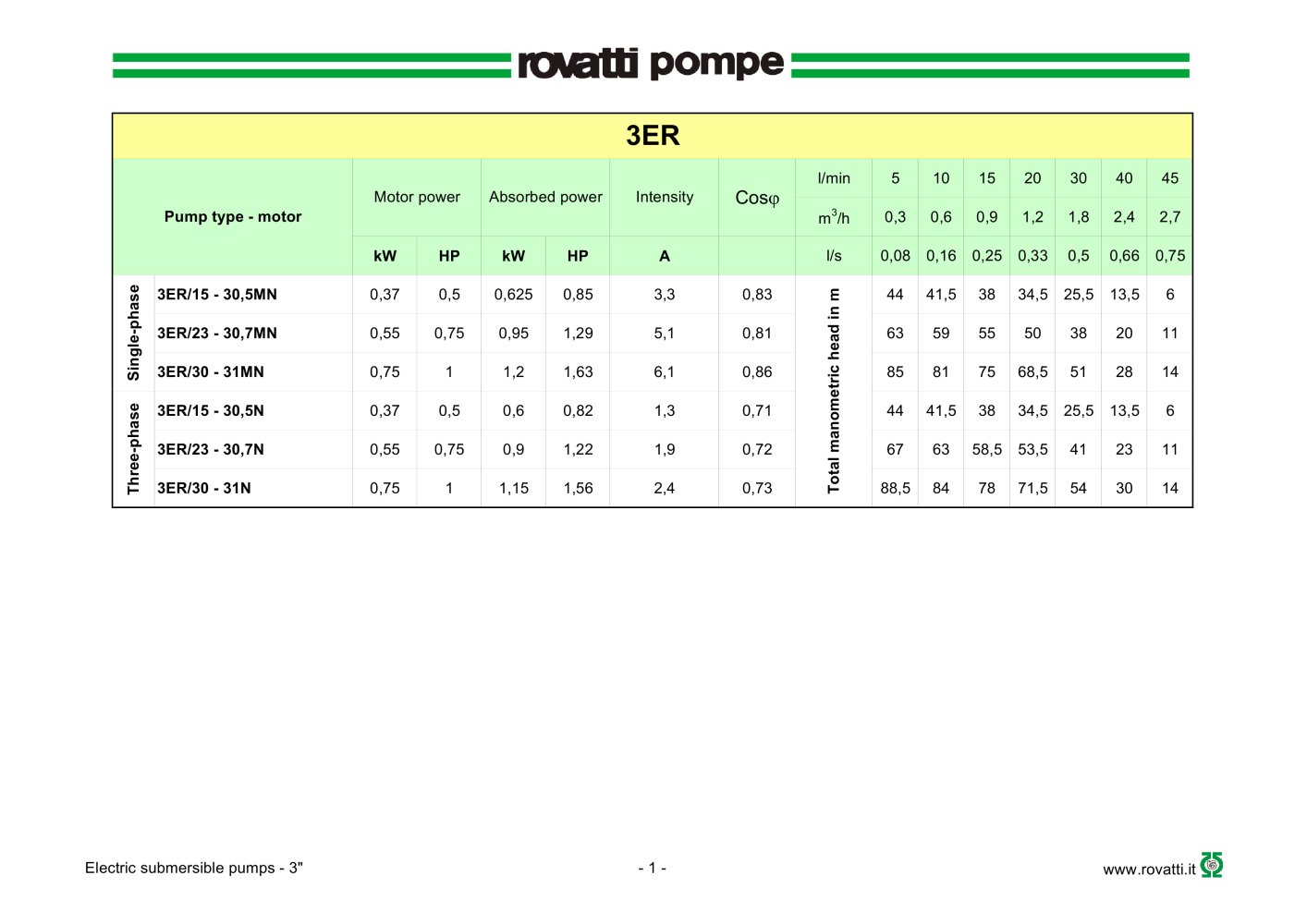

l/min5101520304045m Motor powerAbsorbed power Intensity >

Open the catalog to page 1

Electric submersible pumps 3ER

Electric submersible pumps 3ER
