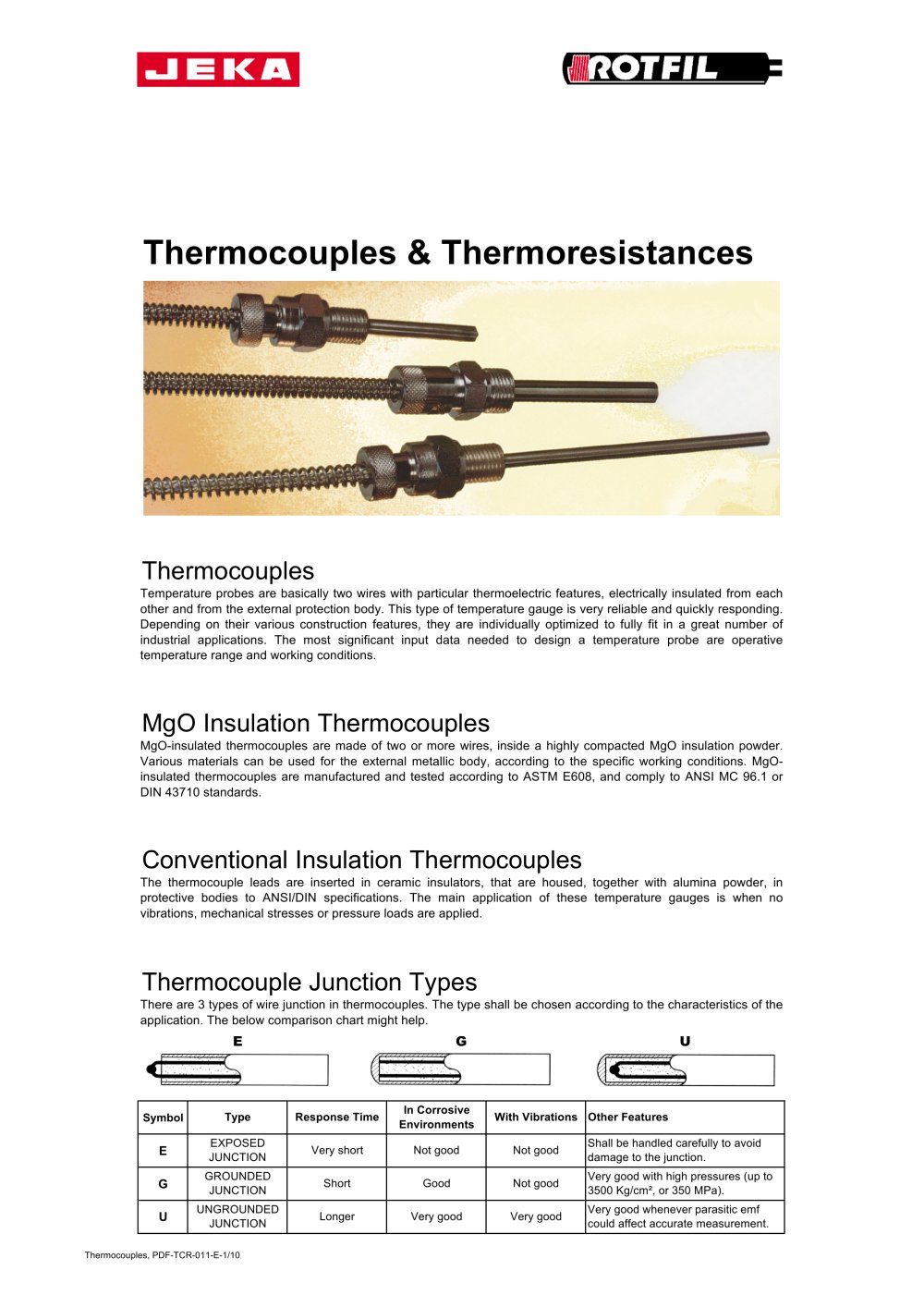

Thermocouples & Thermoresistances Temperature probes are basically two wires with particular thermoelectric features, electrically insulated from each other and from the external protection body. This type of temperature gauge is very reliable and quickly responding. Depending on their various construction features, they are individually optimized to fully fit in a great number of industrial applications. The most significant input data needed to design a temperature probe are operative temperature range and working conditions. MgO-insulated thermocouples are made of two or more wires, inside a highly compacted MgO insulation powder. Various materials can be used for the external metallic body, according to the specific working conditions. MgO- insulated thermocouples are manufactured and tested according to ASTM E608, and comply to ANSI MC 96.1 or Conventional Insulation Thermocouples The thermocouple leads are inserted in ceramic insulators, that are housed, together with alumina powder, in protective bodies to ANSI/DIN specifications. The main application of these temperature gauges is when no vibrations, mechanical stresses or pressure loads are applied. Thermocouple Junction Types There are 3 types of wire junction in thermocouples. The type shall be chosen according to the characteristics of the application. The below comparison chart might help.

Thermocouple Types Thermocouples are supplied in various types, depending on the materials of wires, according to ANSI MC96.1, DIN 43710 or other regulations. The different types have different physical and electrical characteristics, making each of them fit for a specific type of application. Types are defined by a letter. While ordering a thermocouple, the standard of reference (typically ANSI, DIN or IEC) shall be specified. Operational Range Electrical Signal Maximum temperature of standard cables: 400°C. PT 1000 thermoresistances are made of materials whose resistance depends from temperature....

Construction, manufacturing and acceptance tests according to ASTM E608. Sheath material is AISI 321 (DIN 1.4541) for J or T types, Inconel 600 for K type. R, S, B, E and N types also available upon request. Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinned-copper overbraid. Other cable types available upon The ordering key shall be built attaching together consequentially the digits listed in the chart, separated by hyphens (-). Meaning: TC002 series, J type, one couple, ANSI specs, ungrounded junction, diameter 2 Bayonet thermocouple with adjustable...

TC400, Conventional Insulation Thermocouple Sheath material is AISI 304 (DIN 1.4301). R, S, B, E and N thermocouple types are also available upon request. Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinned-copper overbraid. Other types of cable are available upon The ordering key shall be built attaching together consequentially the digits listed in the chart, separated by hyphens (-). Example: TC400-J-1-U-4-100-1000 Meaning: TC400 series, J type, one couple, ungrounded junction, diameter 4 mm, length 100 mm, cable 1000 TC402M, Conventional Insulation...

TC402F, Conventional Insulation Thermocouple Bayonet thermocouple with adjustable spring contact pressure and plunging length. Typical application is temperature probing within metallic plates. Sheath material is AISI 304 (DIN 1.4301). R, S, B, E and N thermocouple types are also available upon request. Standard F thread is BSP 1/4". Other sizes are available upon request. Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinned- copper overbraid. Other types of cable are available upon request. The ordering key shall be built attaching together consequentially...

TC404, Conventional Insulation Thermocouple Thermocouple with adjustable mounting band for fixing on pipes or similar. Sheath material is AISI 304 (DIN 1.4301). R, S, B, E and N thermocouple types are also available upon request. The mounting band is adjustable. Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinned- copper overbraid. Other types of cable are available upon request. The ordering key shall be built attaching together consequentially the digits listed in the chart, separated by hyphens (-). series, J type, ungrounded junction, cable 1000 TC405,...

TC600, Conventional Insulation Thermocouple Immersion thermocouple with protected connection head. Sheath material is AISI 304 (DIN 1.4301). R, S, B, E and N thermocouple types are also available upon request. Standard F thread is BSP 1/4". Other sizes are available upon Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinned-copper overbraid. Other types of cable are available upon request. The standard connection head is DIN-B (IP54). Other types, including explosion-proof construction (Eexd MB, IP67), are also available upon request. The ordering key shall...

TR800, Conventional Insulation Thermoresistance Sheath material is AISI 304 (DIN 1.4301). Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinned-copper overbraid. Other types of cable are available upon request. The ordering key shall be built attaching together consequentially the digits listed in the chart, separated by hyphens (-). Example: TC800-P-1-3-4-30-1000 Meaning: TC800 series, Pt100 type, one couple, 3-wires, diameter 4 mm, length 30 mm, cable TR801, Conventional Insulation Thermoresistance Bayonet thermoresistance with adjustable spring contact...

Special Constructions quite often a very customized product. application among those in this catalogue, please submit us your detailed specifications your application. Compensated Connectors and Cable Compensated connectors are available, with contacts of the same material of thermocouple wires. They can be supplied either loose or connected to the thermocouple cable. Thermocouple cable is also available, for all thermocouple types, and with various types of insulation and protection. Please, contact our sales engineers for assistance. Pane! cuf-out Female panel Female panel
