General Information: The document provides details about ELMAT heating elements, which are flexible heaters manufactured by inserting a resistive circuit between layers of dielectric insulating material. These circuits can be created using various technologies such as metal sheet incision, ink or paste deposition, or incorporation of resistive wires. The resulting elements are thin, flexible, and offer significant design possibilities.

Advantages: The key advantages of these heating elements include flexibility, lightness, secure attachment methods, customizable surface temperature and power, multi-circuit distribution, customized geometries, integrated sensors, and selection of adhesive supports based on application needs.

Technical Specifications: The document outlines the insulation materials used (Polyester, Silicon, Polyamide, Mica) and their respective maximum working temperatures, peak temperatures, typical thicknesses, and dimensions. It also specifies the bending radius and maximum load capacity. Final testing is conducted in accordance with EN 60335-1 and MIL 105 standards, and the products comply with the RoHS directive.

Product Application Methods: The document provides guidelines for the correct assembly of heating elements with adhesives, emphasizing the importance of a clean, dry surface and proper temperature conditions during assembly. It also advises against immediate use after assembly to allow adhesion to improve over 48-72 hours.

Product Storage: Optimal storage conditions include a temperature of around 20°C and relative humidity of 40-60%, storing in the original packaging, and avoiding direct sunlight exposure.

Technical Requirements: The document highlights the importance of selecting the appropriate adhesive and the need for temperature control, especially when increasing the specific load of the resistor.

Heater Selection Criteria: The document lists criteria for selecting the correct dimensions and functional system, including material to be heated, physical characteristics, type of heating, application methods, securing systems, thermal levels, electrical parameters, ambient conditions, and necessary approvals.

Drum Heaters: Specifications for drum heaters are provided, including dimensions, power ratings for different drum sizes, fixing methods, temperature controls, and connecting leads.

Catalog excerpts

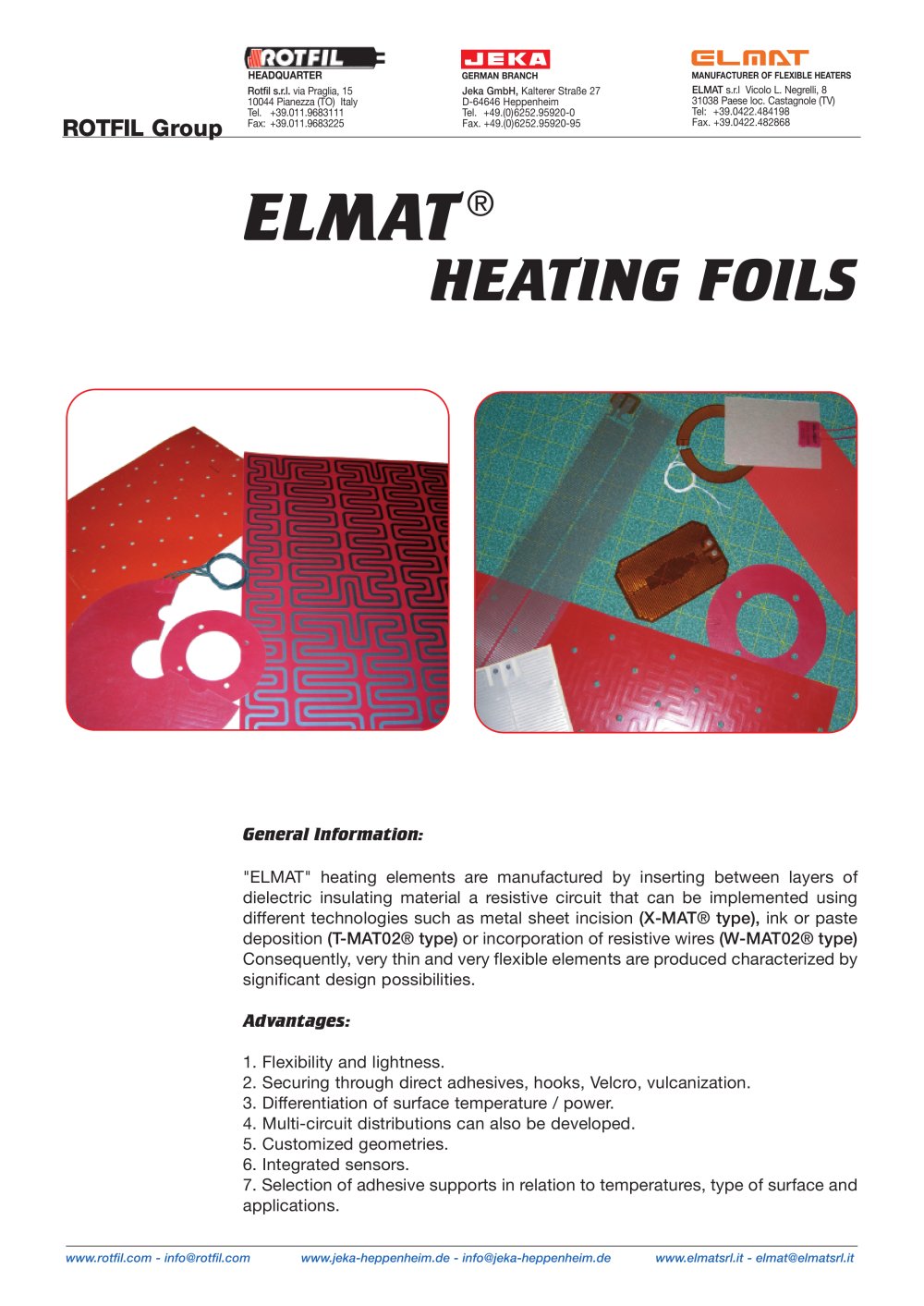

ROTFIL Group GERMAN BRANCH Jeka GmbH, Kalterer StraBe 27 MANUFACTURER OF FLEXIBLE HEATERS ELMAT s.r.l Vicolo L. Negrelli, 8 HEATING FOILS General Information: "ELMAT" heating elements are manufactured by inserting between layers of dielectric insulating material a resistive circuit that can be implemented using different technologies such as metal sheet incision (X-MAT® type), ink or paste deposition (T-MAT02® type) or incorporation of resistive wires (W-MAT02® type) Consequently, very thin and very flexible elements are produced characterized by significant design possibilities. 2. Securing through direct adhesives, hooks, Velcro, vulcanization. 3. Differentiation of surface temperature / power. 4. Multi-circuit distributions can also be developed. 7. Selection of adhesive supports in relation to temperatures, type of surface and www.rotfil.com - [email protected] www.jeka-heppenheim.de - [email protected] www.elmatsrl.it - [email protected]

Open the catalog to page 1

ROTFIL Group_ GERMAN BRANCH MANUFACTURER OF FLEXIBLE HEATERS Technical features ofX-MAT® elements Final testing In accordance with EN 60335-1 - MIL 105 standards Dir. 2002/95/CE (RoHS)_Completely harmonized with the directive www.rotfil.com - [email protected] www.jeka-heppenheim.de - [email protected] www.elmatsrl.it - [email protected]

Open the catalog to page 2

ROTFIL Group_ GERMAN BRANCH MANUFACTURER OF FLEXIBLE HEATERS Product application methods: Elements characterized by adhesives on one side require simple operating procedures to ensure correct assembly: - the surface must be clean and grease-free. Cleaning: use appropriate solvents and de-greasing agents such as heptane and isopropyl alcohol with reference to correct application instructions provided on respective - Holes, protruding screws and sharp edges must - The surface must be dry prior to application. - Assembly must be performed at temperatures - Avoid application in dusty environments....

Open the catalog to page 3

HEADQUARTER GERMAN BRANCH MANUFACTURER OF FLEXIBLE HEATERS ROTFIL Group_ DRUM HEATERS Fixing methods Standard Hooks and springs Options Mobile, flexible with hooks Temperature controls Fixed thermostat - Bi-metallic Thermal limiter Fixed thermostat and thermal limiter Connecting leads Standard Silicon cable 3x1 L = 1.5 meters Other measurements on request Cable with plug www.rotfil.com - [email protected] www.jeka-heppenheim.de - [email protected] www.elmatsrl.it - [email protected]

Open the catalog to page 4
