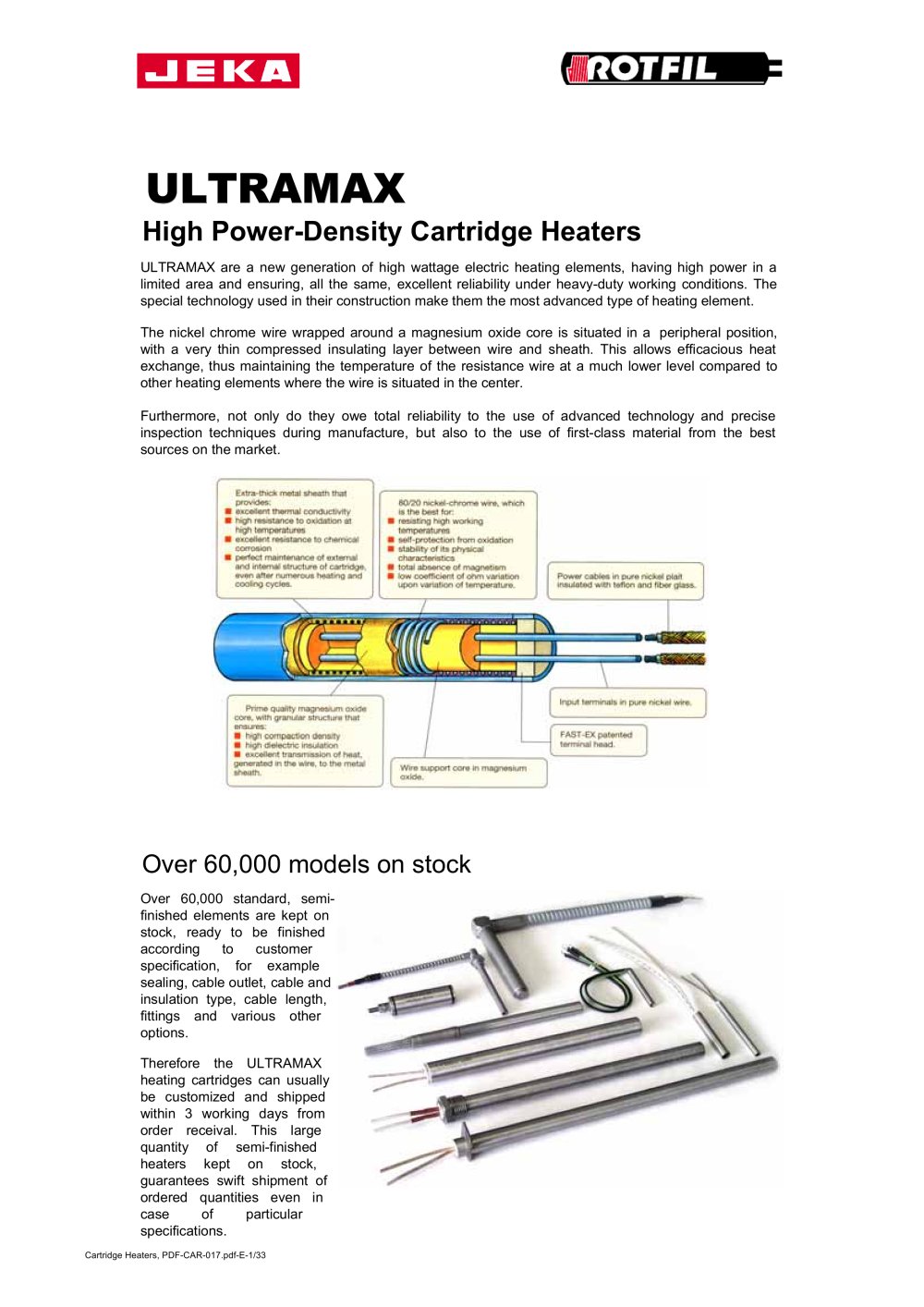

ULTRAMAX are a new generation of high wattage electric heating elements, having high power in a limited area and ensuring, all the same, excellent reliability under heavy-duty working conditions. The special technology used in their construction make them the most advanced type of heating element. The nickel chrome wire wrapped around a magnesium oxide core is situated in a peripheral position, with a very thin compressed insulating layer between wire and sheath. This allows efficacious heat exchange, thus maintaining the temperature of the resistance wire at a much lower level compared to other heating elements where the wire is situated in the center. Furthermore, not only do they owe total reliability to the use of advanced technology and precise inspection techniques during manufacture, but also to the use of first-class material from the best LA'ri1 l^"rfc T*1nl v*vt£tti Itvl NQpl ImpfraiLmi ■ lotal atimoc* of migmunt • low cuffioapj cd orwn wjpiAQCfi PTTS crudity mfi—ini uKid* jrm. wttfi orinUdr itrurtiini th»t Over 60,000 models on stock Over 60,000 standard, semi- finished elements are kept on stock, ready to be finished sealing, cable outlet, cable and insulation type, cable length, fittings and various other heating cartridges can usually within 3 working days from order receival. This large heaters kept on stock, guarantees swift shipment of ordered quantities even in

Standard ULTRAMAX, Metric Sizes Unheated length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down.

Standard ULTRAMAX, Metric Sizes Unheated length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down.

Standard ULTRAMAX, Metric Sizes Unheated length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down.

Standard ULTRAMAX, Metric Sizes Unheated length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down.

Standard ULTRAMAX, Metric Sizes Unheated length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down.

Standard ULTRAMAX, Metric Sizes Unheated length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down.

Standard ULTRAMAX, Metric Sizes Unheated length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down. Standard ULTRAMAX, Imperial Sizes Unheated length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down.

Standard ULTRAMAX, Imperial Sizes Unheated length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down.

Standard ULTRAMAX, Imperial Sizes Unheated length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down.

Standard ULTRAMAX, Imperial Sizes Unheated length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down.

Standard Tolerances DIAMETER: LENGTH: POWER: RESISTANCE: ARROW: See charts above. For length of up to 100 mm: +/- 2 mm. For length of over 100 mm: +/- 2% of the length. -10% / +5% -5% / +10% For length of up to 100 mm: 0,1 mm. For length of between 150 and 300 mm: 0,2 mm. For length of over 300 mm: Arrow (mm) = L2/250 000 (where L=length of the heater in mm) Technical Recommendations 2 Distribute the required load over the highest possible number of heaters in order to reduce the density in W/cm of each heater. Insert the ULTRAMAX cartridges in bored holes. Clearance between heater and hole reduces...

The compactness and high watt density of Ultramax heaters make it an excellent solution for the heating of liquids. Place the heater as far as possible from the tank walls to favour the highest circulation of liquid by convection. Make sure the heater is always covered with at least 20 mm of Avoid too frequent ON/OFF cycles using a proportional Make sure no powder, rust, lime deposit or other foreign substance pollutes the heater's sheath. To avoid emptying the tank when replacing the used heater, is advisable to use our additional sheaths. If there is risk of liquid's overflowing, or there is...

Operating Temperatures Density W/cmJ

Ultramax with Thermocouple Any type of ULTRAMAX heater can be manufactured with a built-in thermocouple, and a big stock of finished heaters is kept, ready for prompt shipment. Grounded to a special bottom disk. Guarantees excellent accuracy of the temperature and quick response. Widely used in injection systems for plastic materials. Insulated in proximity to the bottom disk. Suitable for avoiding disturbances to very sensitive equipment. This type is used for the models in stock (see sizes). Grounded to the metal sheath within a 12 mm cold section, located at the center of the heater. Guarantees...

Standard Ultramax with Thermocouple, Metric Sizes Standard version is with Fe-Co (Type J) thermocouple, position UTC Type 2, with 1000-mm cables. All the models listed below are normally kept in stock.

Standard Ultramax with Thermocouple, Metric Sizes Standard version is with Fe-Co (Type J) thermocouple, position UTC Type 2, with 1000-mm cables. All the models listed below are normally kept in stock. Standard Ultramax with Thermocouple, Imperial Sizes Standard version is with Fe-Co (Type J) thermocouple, position UTC Type 2, with 1000-mm cables. All the models listed below are normally kept in stock.

Cable Options ULTRAMAX heaters can be supplied with flexible cables coming directly out of the cartridge. These are suitable when a highly flexible cable is required also near the head. With this solution, the cartridge head must not exceed the temperature of 260 °C. For higher temperatures, contact our Customer Service. ULTRAMAX cartridges can be supplied with cables protected by a flexible tube of galvanized steel (standard version), or stainless steel (on request). This type of protection is advisable to avoid the cable being smashed, grazed or torn. ULTRAMAX cartridges can be supplied with...

ULTRAMAX cartridges can be built with curved cold sections. It is recommended to use them especially in 90° outlets into high temperature environments and for incorporation in fusions. Upon request, the cold and hot zone of the elements can be manufactured with any length. Input cables can have S 8 or S 9 ULTRAMAX cartridges can be built with a cubic-block head for hammering during insertion, plus a reinforced bottom for hammering during extraction. Flexible conduit Shrink sleeve TIG weld Exagonal crimping ULTRAMAX cartridges with a diameter of 12.5 or more can have threaded ends, with nuts and...
