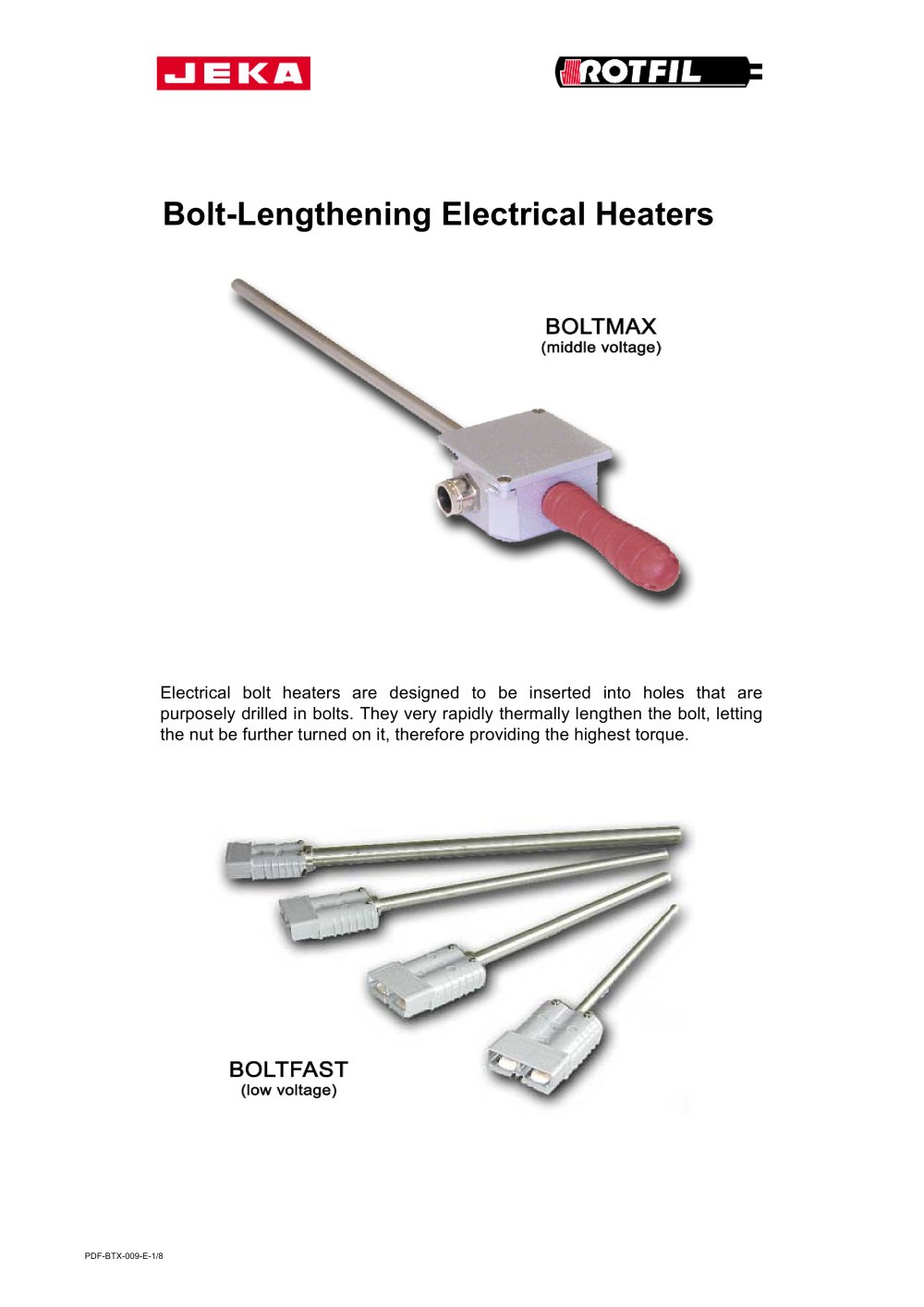

Bolt-Lengthening Electrical Heaters (middle voltage) Electrical bolt heaters are designed to be inserted into holes that are purposely drilled in bolts. They very rapidly thermally lengthen the bolt, letting the nut be further turned on it, therefore providing the highest torque.

BOLTMAX Middle-Voltage Bolt Heaters • Sturdy plastic-rubber handgrip with rough anti-slide surface. • Heavy aluminium fusion painted box for electrical connection. • Cable fastener especially designed to avoid tearing or cutting of the cable. • Feeding cable, optional, with silicone rubber sheath, length to be specified. • Internal insulation: compacted MgO. • Working temperature in free air: 800°C with 8 W/cm2. • Construction designed for keeping an excellent linearity in time. Turbines, motor heads, shipbuilding, pressure boilers, flanged pressure pipings, civil construction, mechanical...

BOLTMAX Technical Data (I) Note: ASK YOUR SALES CORRESPONDENT FOR OTHER DIAMETERS OR LENGTHS.

BOLTMAX Technical Data (II) Note: ASK YOUR SALES CORRESPONDENT FOR OTHER DIAMETERS OR LENGTHS.

BOLTFAST Low-Voltage Bolt Heaters BOLTFAST heaters are a practical and reliable tool and are mainly used for the extension of bolts and rods during the assembly of turbines, nuclear plants, presses, building construction, pressure boilers, etc. Due to their quick action the BOLTFAST heaters guarantee precision and high productivity. They are essential when fast action and a perfect thermodynamic action are required. Insulation by means of compressed borum nitrite raises the speed of heat transmission and allows excellent insulation even with temperatures above 1000 °C. The strong and...

BOLTFAST Technical Data Note: ASK YOUR SALES CORRESPONDENT FOR OTHER DIAMETERS OR LENGTHS.

Control Panel for Bolt Heaters Electrical supply: 380 V three-phase, output 24V - 48V, max. power 30 KVA. Size: 1200x1000 mm, 800 mm height, installed on a wheeled frame. The cabinet accommodates the following components: 1 door locking master switch 1 isolation transformer, power: 30 KVA, firm power: 380V, 50Hz, three-phase, interruptible power: two separate windings for 24 V 200 A (5000 W) phase 3 contactors 3 disconnecting switches 12 output terminals Serial or parallel coupling of phase windings allow the following supply selections: 6 24 V insulated elements, maximum rated power: 5 KW...
