Introduction
ROSS EUROPA GmbH introduces the Series W63 valves, designed according to the VDMA 24563 standard, which is proposed as the new ISO Size 0 standard. These valves offer a high flow coefficient of up to kv=1.0 in a compact 26 mm wide body, ensuring efficient performance with minimal dimensions.

Key Features

High Flow and Compact Size: Achieves a flow coefficient of 1.0 kv from a 26 mm wide valve.
Resilient Seal Spool: Ensures minimal breakaway friction and virtually leak-free operation.
Low-wattage Solenoids: Consumes only 1.9 watts of electrical power.
Viton® Seals: Provides robust performance across a wide temperature range and resistance to chemical attacks.
Non-Lube Service: Offers long life without additional lubrication systems.
DIN Rail Mounting: Allows easy manifold mounting in control panels.

Specifications

Solenoids: Rated for continuous duty with standard voltages of 24 volts DC, 115 volts, 50/60 Hz, and 230 volts, 50/60 Hz.
Power Consumption: 1.9 watts.
Temperature Range: -5° to 50° C for solenoid valves; -5° to 100° C for pressure control valves.
Flow Media: 5 micron filtered air.
Pressure: 2 to 10 bar.

Valve Models and Dimensions

Model W6376A1401: Dimensions A=132 mm, B=26 mm, C=68 mm, Avg. kv=1.0
Model W6376A1407: Dimensions A=152 mm, B=26 mm, C=68 mm, Avg. kv=0.8
Model W6377A1401: Dimensions A=152 mm, B=26 mm, C=68 mm, Avg. kv=0.8

Accessories and Response Times

Blocking Disks: Available for inlet/exhaust and control ports.
Blank Station Kit: Includes a metal plate, gasket, and mounting bolts.
DIN Rail Mounting Kit: Includes cam assemblies for manifold mounting.
Valve Response Time: Calculated using specific constants for each model.

Warranty and Cautions
Standard ROSS warranty and cautions apply. For further information, contact ROSS EUROPA or your nearest representative.

Contact Information
ROSS EUROPA GmbH, Robert-Bosch-Straße 2, D-63225 Langen, Germany. Tel: 06103-7597-0, Fax: 06103-74694.

Catalog excerpts

ROSS EUROPA GmbH 1 >

Open the catalog to page 1

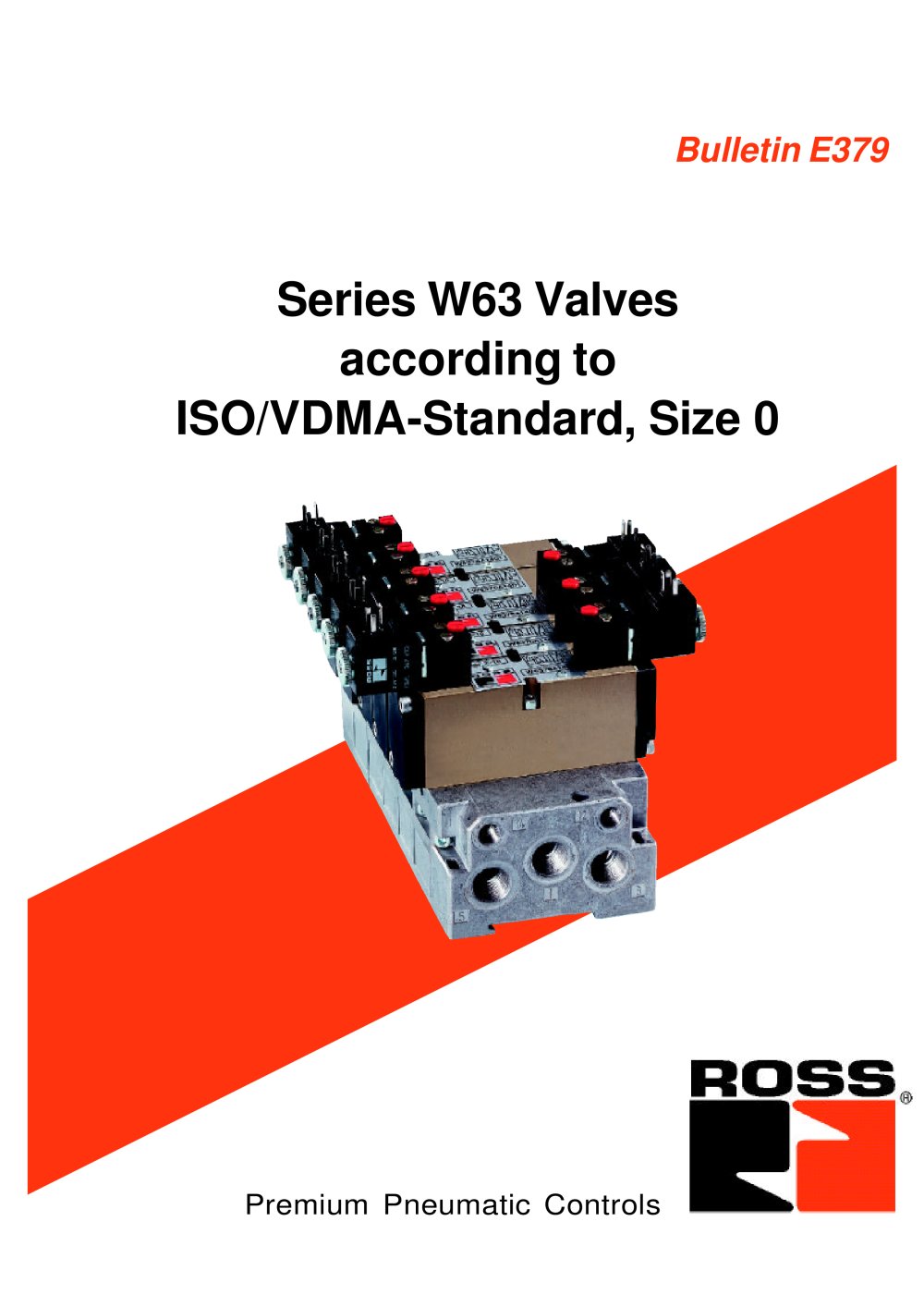

ROSS new Series W63 valve is manufactured to the global VDMA 24563 standard interface, whichis also proposed to be the new ISO Size 0 standard for valves in this flow and size range. The SeriesW63 design offers customers a globally-accepted pneumatic interface which is widely accepted throughout global industry. The goal of ROSSҒ design team was to maximize flow capability while minimizing thevalves physical dimensions as stated in the VDMA standard. The result is a valve with a flow coeffi-cient of up tok v =1,0in a valve body only26 mm wide. These features, coupled with long cycle lifeand virtually...

Open the catalog to page 2

Solenoids: Rated for continuous duty.Standard voltage 24 volts d.c.;115 volts,50/60Hz; 230 volts, 50/60 Hz. Avg.k ValveModel Number Dimensions - mmA Weig h Size > v B C kg Power Consumption: 1,9 watts. Ambient/MediaTemperature: -5 to 50а C. 1,0 W6376A1401 132 26 68 0,35 Flow Media: 5 micron filtered air. Pressure: 2 to 10 bar.Bases & manifolds sold separately (See page 5).See page 6 for valve response times and accessories. > Avg.k ValveModel Number Dimensions - mmA Wei g Solenoids: Rated for continuous duty.Standard voltage 24 volts d.c.;115 volts,50/60 Hz; 230 volts, 50/60 Hz. Size > v Function...

Open the catalog to page 3

Avg.k ValveModel Number Dimensions - mmA Weightkg Ambient/MediaTemperature: -5 to 100а C. Size Flow Media: 5 micron filtered air. > v B C Pressure: 2 to 10 bar. 1,0 W6356A1411 117 26 42 0,3 Pilot Pressure: Must be equal to or greaterthan inlet pressure.Bases & manifolds sold separately (See page 5).See page 6 for valve response times and accessories. Bases & manifolds sold separately (See page 5).See page 6 for valve response times and accessories. > AB C Ambient/MediaTemperature: -5 to 100а C. Avg.k ValveModel Number Dimensions - mmA Weightkg Flow Media: 5 micron filtered air. Size > v B C Pressure:...

Open the catalog to page 4

YXX AB CDEEFGHIMGJKKLLNOPQRR STUVW > DIN-Rail Access(2 places) 9010855100557839398272647 AB CDEFGHIJKLEF MNOPQRSTUVTQ ABCDEFGHIJKLM DIMENSIONS - mm NOPQRSTUVWXY 3123520251853911171012 ABCDEFGHIJK DIMENSIONS - mm 924221 141128 69512 1127 LMNOPQRSTUV 148181466126221810 > * an end station kit must be ordered separately for each manifold installation. >

Open the catalog to page 5
