ROSS EUROPA
Compact Valves

Compact Valves

Product catalog summary

Overview: The document outlines the specifications and features of ROSS compact valves, emphasizing their high flow capacity, short response times, and suitability for various applications. These valves are compact, rugged, and offer solenoid and pressure control options.

Key Features:

High flow capacity and short response times.
Compact, lightweight design with resilient seal spool.
Available in 3/2-, 5/2-, and 5/3-way configurations.
Operable with or without lubrication.
Easy mounting and manifold stacking capabilities.

Specifications:

Aluminium housing with NBR seals.
Standard voltages: 24 VDC, 220 V / 50/60 Hz.
Power consumption: 2.5 watts on DC, 4 VA on AC.
Media temperature range: +5° to +60° C.
Flow media: filtered air, with or without lubrication.
Response time: 20 ms for 5/2-way, 35 ms for 5/3-way models.

Valve Types and Models:

5/2-Way Valves: Single and double solenoid configurations with various port sizes (M 5, G 1/8, G 1/4, G 3/8).
5/3-Way Valves: Closed, open, and pressure center configurations.
3/2-Way Valves: Normally closed and normally open configurations.

Manifold Bases: Available for different port sizes, accommodating multiple stations for common air supply and exhaust.

Accessories:

Solenoid pilot valves for electrically operated valves.
Blank station kits for unused manifold stations.

Applications: Suitable for a wide range of industrial applications due to robust design and high performance.

Product Specifications: Lists various 3/2-way valves with part numbers for different sizes, including connectors with LED indicators and surge suppressors for solenoid-controlled valves.

Warranty Information: ROSS products are warranted against defects for one year from purchase, covering repair, replacement, or refund if returned freight prepaid and found defective. Warranty void if misused, improperly maintained, or modified.

Cautions and Safety Instructions:

Ensure systems are shut off before servicing.
Installation and servicing should be done by trained personnel.
Regular maintenance checks are necessary.
Use ROSS parts for repairs to ensure safety and performance.
Install filters to prevent contaminants.
Use compatible lubricants to avoid damage.
Avoid restricting air flow to prevent erratic operation.
Double valves in hazardous applications must have a monitoring system.

Contact Information: Provides contact details for ROSS offices in the UK, USA, Germany, China, India, Brazil, and Japan.

Catalog excerpts

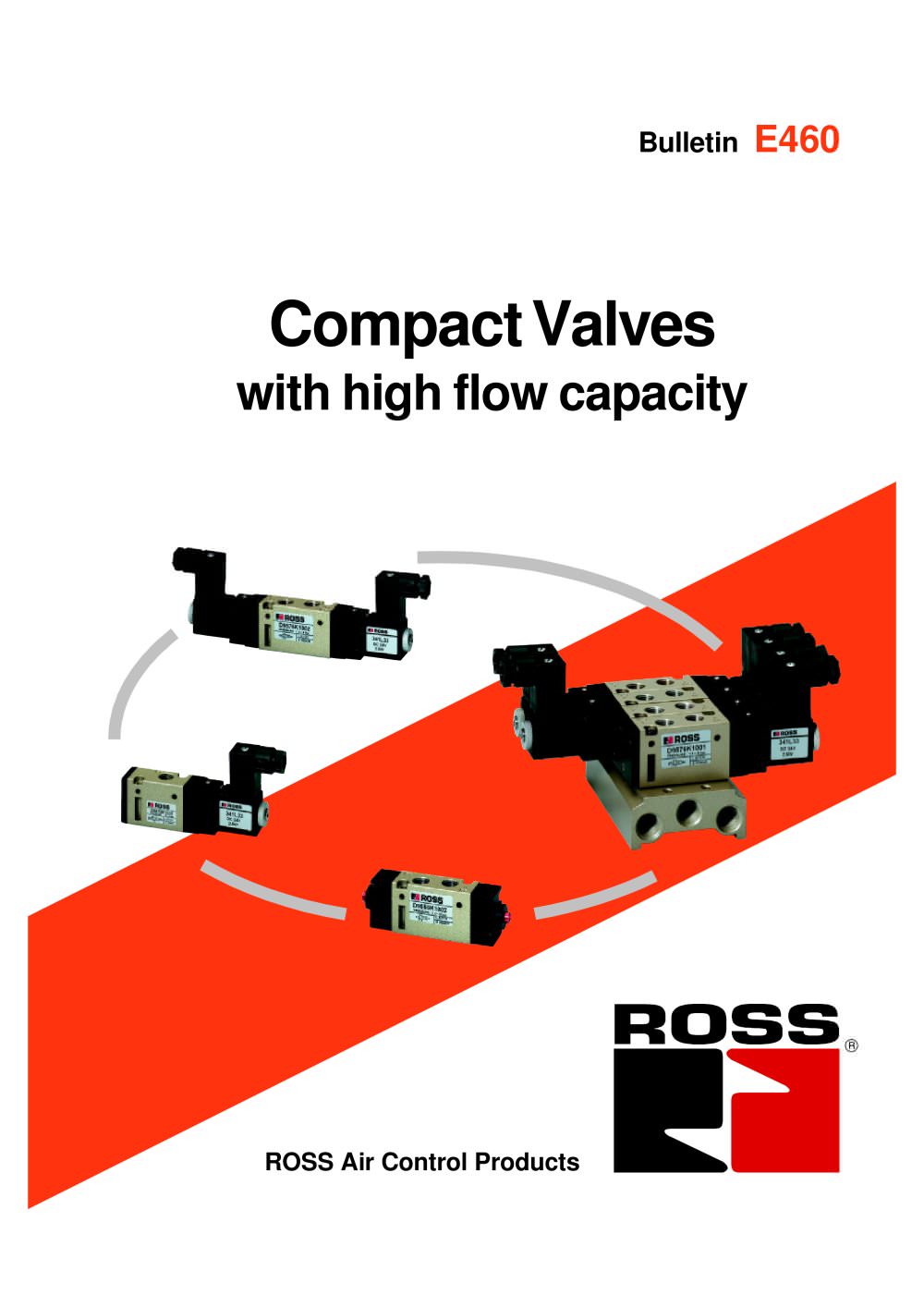

ROSS Air Control Products > 1 size="-1">

Open the catalog to page 1

STANDARD SPECIFICATIONSHousing: Aluminium. Seals: NBR. Standard voltages: 24 VDC, 220 V / 50/60 Hz(other voltages on request). Power consumption: 2.5 watts on d.c.,4 VA holding on 50 or 60 Hz. Media temperature: +5 to +60а C. Flow media: filtered air, with or without lubrication. Response time: 20 ms.< PortValveOperationOperatingAir Flow SizeModel No.Pressure > Std. litre/min. 2 M 5D9573K00013/2-way, normally closed, spring return1.5 to 8 bar200M 5D9574K00013/2-way, normally open, spring return1.5 to 8 bar200 > 31 2 31 Dimensions - mm M5(Port2)298.615.5ָ2.6-2x 2 82.9max.102.6-2x 71.83.597.5 M5(Ports1and3)...

Open the catalog to page 10

STANDARD SPECIFICATIONSHousing: Aluminium. Seals: NBR. Standard voltages: 24 VDC, 220 V / 50/60 Hz(other voltages on request). Power consumption: 2.5 watts on d.c.,4 VA holding on 50 or 60 Hz. Media temperature: +5 to +60а C. Flow media: filtered air, with or without lubrication. Response time: 20 ms.< PortValveOperationOperatingAir Flow SizeModel No.Pressure > Std. litre/min. 2 G 1/8D9573K10013/2-way, normally closed, spring return1.5 to 8 bar590G 1/8D9574K10013/2-way, normally open, spring return1.5 to 8 bar590 > 31 2 31 Dimensions - mm 11.523.5ָ3.2-2xG1/8(Port2)26 2 98.3max.1011.523.587.23.5...

Open the catalog to page 11

STANDARD SPECIFICATIONSHousing: Aluminium. Seals: NBR. Standard voltages: 24 VDC, 220 V / 50/60 Hz(other voltages on request). Power consumption: 2.5 watts on d.c.,4 VA holding on 50 or 60 Hz. Media temperature: +5 to +60а C. Flow media: filtered air, with or without lubrication. Response time: 20 ms.< PortValveOperationOperatingAir Flow SizeModel No.Pressure > Std. litre/min. 2 G 1/4D9573K20013/2-way, normally closed, spring return1.5 to 8 bar985G 1/4D9574K20013/2-way, normally open, spring return1.5 to 8 bar985 > 31 2 31 Dimensions - mm 16.119ָ4.3-2x23.6G1/4(Port2) 2 112max.1010.6304.3-2x98.77...

Open the catalog to page 12

STANDARD SPECIFICATIONSHousing: Aluminium. Seals: NBR. Media temperature: +5 to +60а C. Flow media: filtered air, with or without lubrication. PortValveOperationOperatingAir Flow SizeModel No.Pressure > Std. litre/min. 2 G 1/8D9553K10003/2-way, normally closed, spring return2 to 8 bar590G 1/8D9554K10003/2-way, normally open, spring return2 to 8 bar590 > 31 2 31 Dimensions - mm 11.523.53.2-2xM52649.7 2 G1/8(Port2) 11.523.53.2-2x58.73 G1/8(Ports1and3) 31 16.514.5 13 size="-1">

Open the catalog to page 13

STANDARD SPECIFICATIONSHousing: Aluminium. Seals: NBR. Media temperature: +5 to +60а C. Flow media: filtered air, with or without lubrication. PortValveOperationOperatingAir Flow SizeModel No.Pressure > Std. litre/min. 2 G 1/4D9553K20003/2-way, normally closed, spring return2 to 8 bar985G 1/4D9554K20003/2-way, normally open, spring return2 to 8 bar985 > 31 2 31 Dimensions - mm 16.1194.3-2xG1/823.664.2 2 G1/4(Port2) 3010.64.3-2x69.7 G1/4(Ports1and3) 13 1816.6 14 size="-1">

Open the catalog to page 14

SOLENOID PILOT VALVES CONNECTORS for electrically operated valves. with LED indicator lights and built-in surgesuppressors for solenoid controlled valves. Valve SizeVoltagePart No. Valve SizeVoltagePart No. M 5 &. G 1/824 VDC341L33 G 1/4 & G 3/824 VDC342L33M 5 & G 1/8220 V 50/60 Hz343L33 G 1/4 & G 3/8220 V 50/60 Hz344L33 M 5 & G 1/824 VDC1766L77 G 1/4 & G 3/824 VDC1767L77M 5 & G 1/8220 V 50/60 Hz1768L77 G 1/4 & G 3/8220 V 50/60 Hz1769L77 > Other voltages available. Other voltages available. BLANK STATION KITS A blank station plate is used to cover the topof a manifold station when a valve is...

Open the catalog to page 22

AVOID INTAKE/EXHAUST RESTRICTION DOUBLE VALVES ROSS expressly disclaims all war-ranties and responsibility for any unsatisfactory perform- ance or injuries caused by the use of the wrong type, wrong size, or inadequately maintained silencer installed with a ROSS product. 8. Do not restrict the air flow in the supply line. To do socould reduce the pressure of the supply air below the minimum requirements for the valve and thereby cause erratic action.9. Do not restrict a poppet valve's exhaust port as this canadversely affect its operation. Exhaust silencers must be resistant to clogging and have...

Open the catalog to page 23

ROSS EUROPA GmbH > Robert-Bosch-Strasse263225 Langen / Germany Phone: +49-6103-7597-0 Fax: +49-6103-74694 www.rosseuropa.com ROSS UK Ltd. > St. James Road, BrackleyNorthamptonshire NN13 7 XY United Kingdom Phone: +44-1-280-706668 Fax: +44-1-280-705630 www.rossuk.com ROSS CONTROLS > P.O. Box 7015,Troy, Michigan 48007 U.S.A. Phone: +1-248-764-1800 Fax: +1-248-764-1850www.rosscontrols.com ROSS ASIA K.K. > 10209-5Tana, Sagamihara-shiKanagawa-pref. 229-11, Japan Phone: +81-427-78-7251 Fax: +81-427-78-7256 ROSS SOUTH AMERICA Ltda. > Rua Olavo Goncalves, 43/47 - CentroSao Bernardo do Campo - Sao Paulo...
