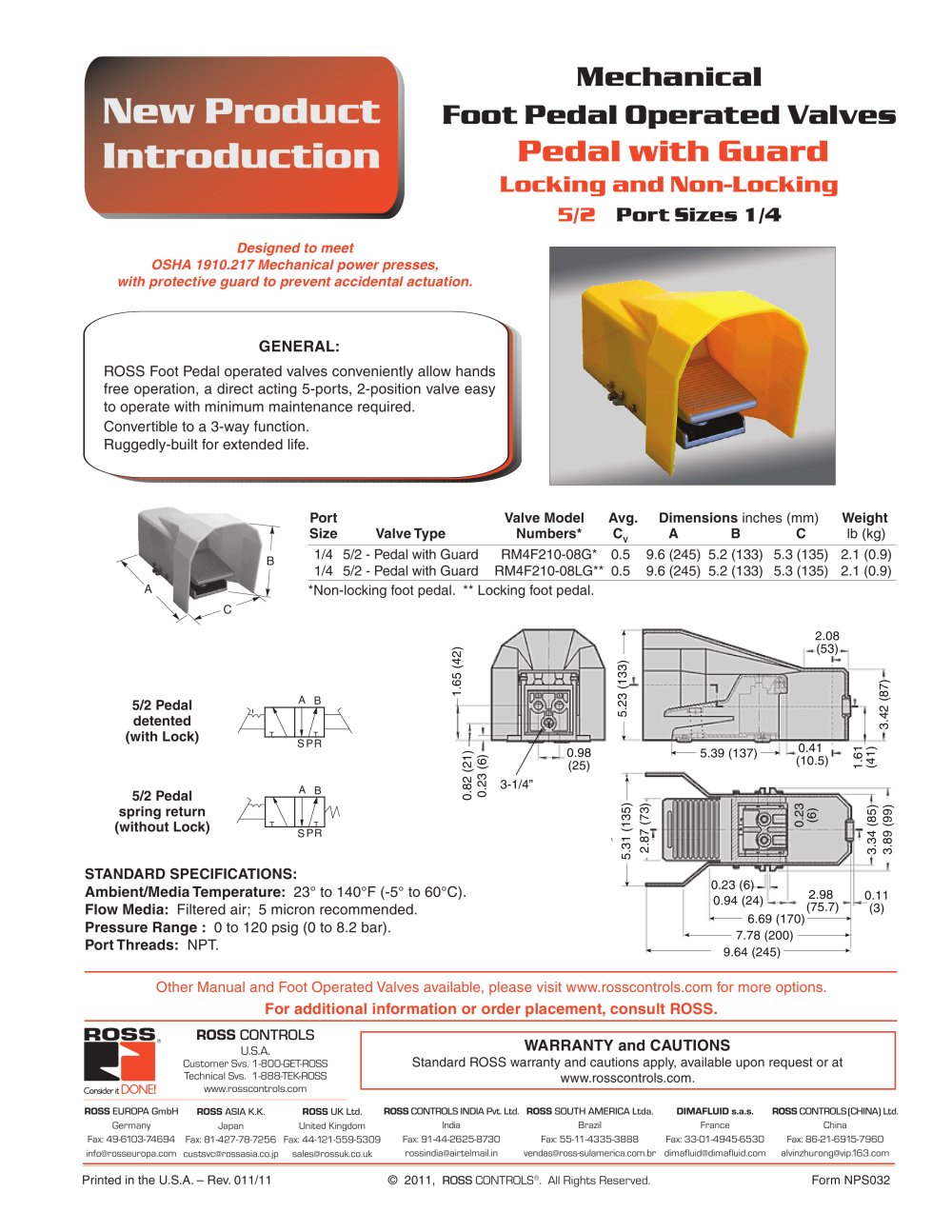

Introduction: The document introduces a new product line of mechanical foot pedal operated valves by ROSS CONTROLS, designed for hands-free operation. These are 5/2 port size valves with options for locking and non-locking mechanisms.

Standard Specifications: The valves operate within an ambient/media temperature range of 23° to 140°F (-5° to 60°C) and are suitable for filtered air with a 5-micron recommendation. The pressure range is 0 to 120 psig (0 to 8.2 bar), and the port threads are NPT.

General Features: The foot pedal valves are direct acting, easy to operate, and require minimal maintenance. They are ruggedly built for extended life and can be converted to a 3-way function. The design includes a protective guard to prevent accidental actuation, meeting OSHA 1910.217 standards for mechanical power presses.

Product Variants: Two models are available: RM4F210-08G (non-locking) and RM4F210-08LG (locking). Both models have a CV of 0.5 and dimensions of 9.6 x 5.2 x 5.3 inches (245 x 133 x 135 mm) with a weight of 2.1 lb (0.9 kg).

Warranty and Contact Information: The standard ROSS warranty and cautions apply. Contact information for ROSS offices worldwide is provided for further inquiries or order placements.
