Dale series poppet valves

Dale series poppet valves

Product catalog summary

Overview: The document provides technical specifications and information on the Dale Series CP and CX poppet valves by ROSS CONTROLS, available in 2-way and 3-way configurations for normally closed, normally open, and pressure-controlled operations. These valves are suitable for inline and stackable manifold applications.

Specifications:

Operation: Options include internal or external piloted, solenoid pilot, or pressure controlled.
Materials: Constructed with anodized aluminum alloy body and top plate, aluminum alloy poppet with Buna-N sealing surface, and nitrile rubber O-rings.
Power: AC or DC solenoid pilot, continuous duty rated, with standard voltages of 120 volts AC (50/60 Hz) and 24 volts DC.
Temperature Range: Ambient: 40° to 120°F (4° to 50°C); Media: 40° to 175°F (4° to 80°C).
Pressure: Solenoid pilot: Vacuum to 145 psig; Pressure controlled units up to 250 psig.

Features:

Cost-effective and compact design.
Robust construction with high flow capacity.
Leak-tight construction in Series CX.
Port pressure independent and non-lube service.

Applications: Suitable for industries such as pulp and paper, steel mills, packaging, power generation, industrial minerals, vacuum, and leak testing.

Model Variations:

Available in various port sizes from 1/2" to 2 1/2".
Models with external pilot supply and leak-tight construction are available.

Ordering Information: Manifolds can be ordered with up to ten stations, with specific configurations customizable by selecting appropriate valve model numbers.

Contact Information: ROSS CONTROLS provides global support with contact details for offices in the USA, Germany, Japan, UK, Brazil, India, France, and China.

General Specifications: Valves are designed for speed control, full port flow, dynamic sealing, and can be solenoid actuated. They are available in both internally and externally piloted configurations, with standard voltages of 120 volts AC and 24 volts DC.

Standard Specifications: Operate within an ambient temperature range of 40° to 120°F and a media temperature range of 40° to 175°F. Suitable for filtered air with a recommended 5-micron filter. Inlet pressure for solenoid pilots ranges from vacuum to 145 psig, while pressure-controlled units can handle up to 250 psig.

Materials and Construction: Constructed from anodized aluminum alloy with Buna-N sealing surfaces, offering robust construction and ease of maintenance. Designed to be cost-effective and compact, with leak-tight construction available in certain models.

Valve Models and Dimensions: Lists various valve models with corresponding dimensions and weights, including details on 2/2, 3/3, 4/4, and 5/4 valve configurations for specific applications such as pressure decay tests and flow control.

Features: Key features include high flow rates, bubble-tight sealing, integrated sensor ports, and the ability to eliminate tubing through manifold design. Designed for continuous duty and non-lube service.

Warranty and Contact Information: Concludes with warranty information and contact details for ROSS CONTROLS' global offices, emphasizing their commitment to quality and global support.

Catalog excerpts

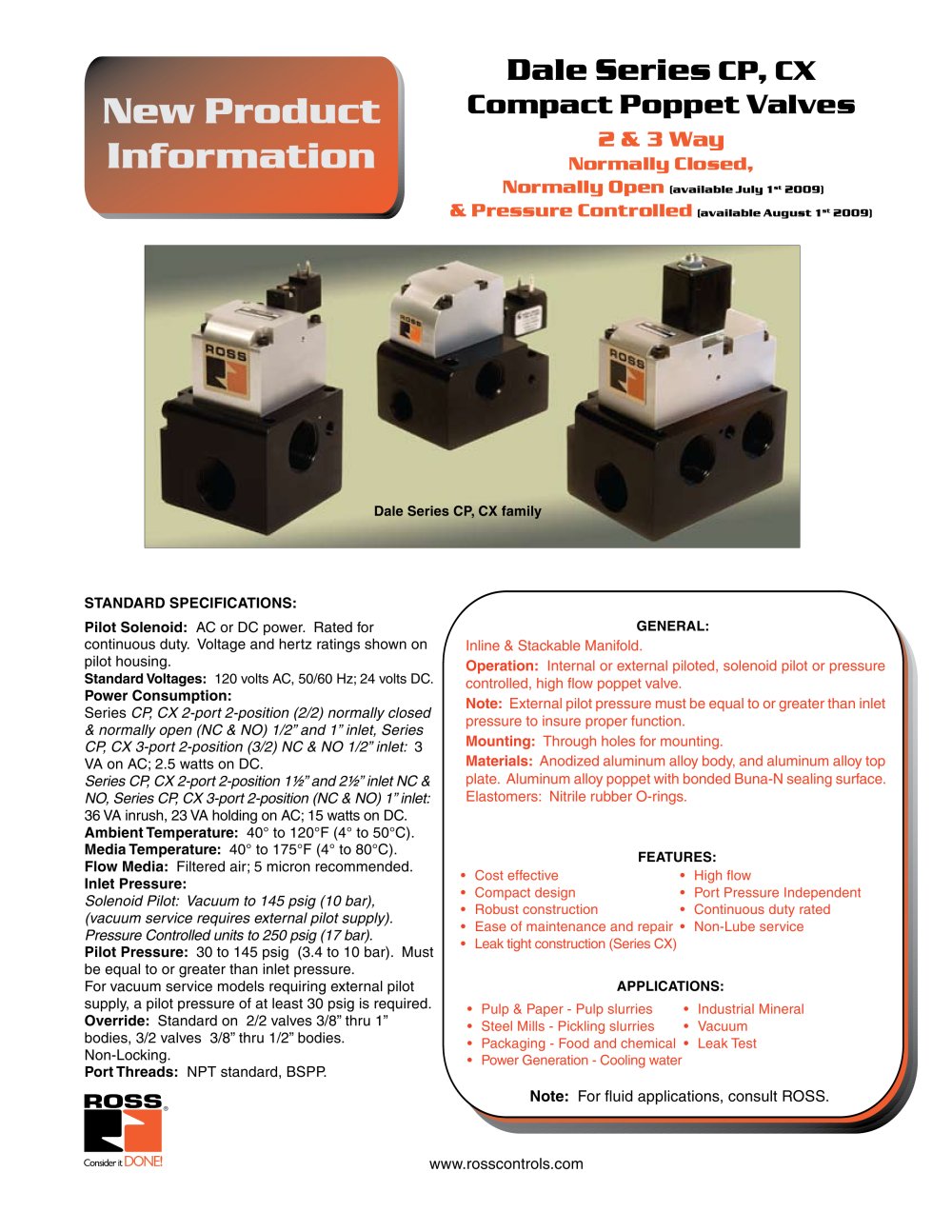

(available August 1 st 2009) Dale Series CP, CX family > Standard Voltages: 120 volts AC, 50/60 Hz; 24 volts DC. > s Cost effective s High flow s Compact design s Port Pressure Independent s Robust construction s Continuous duty rated s Ease of maintenance and repair s Non-Lube service s Leak tight construction (Series CX) APPLICATIONS: s Pulp & Paper - Pulp slurries s Industrial Mineral s Steel Mills - Pickling slurries s Vacuum s Packaging - Food and chemical s Leak Test s Power Generation - Cooling water >

Open the catalog to page 1

2/2 Normally Closed (NC) 3/2 Normally Closed (NC) Pressure Controlled Valves available August 1 st 12 , 2009. Pipe Size Valve Model Number* 1 2 NC 1/2 3/8 CP14NA35501 1/2 1/2 CP14NA45501 1 3/4 CP16NA55501 1 1 CP16NA65501 1 1 ݼ CP18NA75501 1 1 ݽ CP18NA85501 2 2 CP10NA95501 2 ݽ 2 CP10NA05501 > *For models with leak tight construction replace prefix ݓCP with ԓCX, e.g., CX14NA35501. NPT port threads, for BSPP threads, replace ԓN in the model number with a ԓD, e.g., CX14DA35501. 321 Pipe Size Valve Model Number* 1 2 NC 1/2 3/8 CP34NA35501 1/2 1/2 CP34NA45501 1 3/4 CP36NA55501 1 1 CP36NA65501 > * For...

Open the catalog to page 4

CP, CX Series 2/2 Valves Ports: 1 thru 1 ܽ FEATURES:APPLICATIONS: GENERAL: s Cost effective s High flow s Compact design s Leak tight (Series CX) s Robust construction s Port Pressure Independent s Continuous duty rated s Ease of maintenance and repair s Non-Lube service s Pulp & Paper - Pulp slurries s Industrial Mineral s Steel Mills - Pickling slurries s Vacuum s Packaging - Food and chemical s Leak Test > CP, CX Series 3/2 Valves s Power Generation - Cooling water > Ports: 1 thru 1 ܽ CP, CX Series 2/2 CP, CX Series 3/2 Ports: 1/2 thru 2 ݽ Ports: 1/2 thru 1

Open the catalog to page 5

(available August 1 st , 2009) Speed Control Solenoid ActuatedInternally or Externally Piloted Dynamic Sealing Port Plate Flexibility Full Port Flow > s Cost effective s Full flow > s Compact design s Speed Control - fast shift or > s Robust construction controlled shift in both ways, to eliminate hammering s Ease of maintenance and repair s Leak tight construction (Series LX) APPLICATIONS: s Pulp & Paper - Pulp slurries s s Steel Mills - Pickling slurries s Vacuum s Packaging - Food and chemical s Leak Test s Power Generation - Cooling waterIndustrial Mineral >

Open the catalog to page 9

2/2 Normally Closed (NC) Pressure ControlledValves available August 1 st , 2009. 12 Pipe Size Valve Model Number* 1 2 NC 3/8 3/8 LF13NA35501 1/2 1/2 LF14NA45501 3/4 3/4 LF15NA55501 1 1 LF16NA65501 1 ݼ 1 LF17NA75501 1 ܽ 1 LF18NA85501 2 2 LF19NA95501 2 ݽ 2 LF10NA05501 > *For models with leak tight construction replace preffix ݓLF with ԓLX, e.g., LX13NA35501.NPT port threads, for BSPP threads, replace ԓN in the model number with a ԓD, e.g., LX13DA35501. For more information on pressure controlled valves, consult ROSS. >

Open the catalog to page 11

Dale Series LT Ports: 1/4 thru 1/2 GENERAL: s Cost effective s Non-Lube service s Compact design s High flow > s Robust construction s Leak tight s Continuous duty rated s Ease of maintenance and repair > s Directional control s Isolation valve s Pressure isolation s Flow test s Pressure decay test s Differential pressure test s Bypass fill valve s Two channel pressure decay test >

Open the catalog to page 13

TEST PORTTEST PORT INLET 1INLET 2 ROSS EUROPA GmbH ROSS ASIA > K.K. ROSS UK Ltd. ROSS CONTROLS > ή INDIA Pvt. Ltd. ROSS SOUTH AMERICA Ltda. DIMAFLUID s.a.s. ROSS CONTROLS (CHINA) Ltd. GermanyFax: [email protected] JapanFax: [email protected] United KingdomFax: [email protected] IndiaFax: [email protected] BrazilFax: [email protected] FranceFax: [email protected] ChinaFax: [email protected] >
