ROLAND

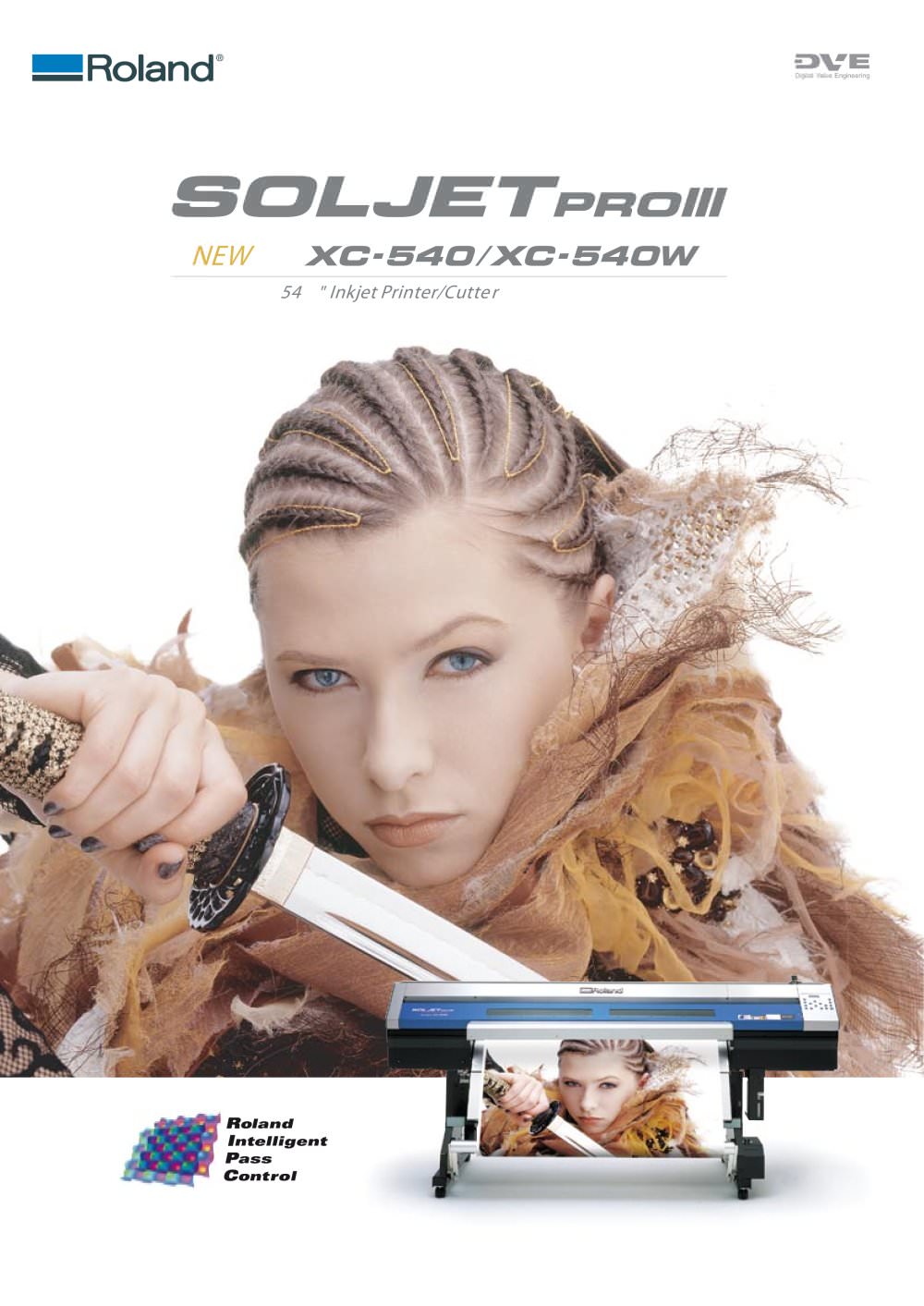

Brochure: XC-540W

Brochure: XC-540W

Product catalog summary

Specifications Overview:
The SOLJET PRO III XC Series is a 54-inch inkjet printer/cutter using piezoelectric inkjet technology. It supports media widths from 260 to 1,371 mm and thicknesses up to 1.0 mm for printing and 0.4 mm for cutting, with a maximum roll weight of 30 kg. It accommodates core diameters of 50.8 mm or 76.2 mm.

Ink and Printing:
The printer uses Roland ECO-SOL MAX INK in 220 cc or 440 cc cartridges. The XC-540 model supports six colors, while the XC-540W supports five colors including white. The maximum printing resolution is 1,440 dpi.

Cutting Specifications:
Cutting speed ranges from 10 to 600 mm/s, with a blade force of 30 to 300 gf. The software resolution for cutting is 0.025 mm/step.

Accuracy and Alignment:
Printing distance accuracy is within ±0.3% or ±0.3 mm, and cutting accuracy is within ±0.4% or ±0.3 mm. Enhanced accuracy is achievable with calibration settings.

Media Heating System:
The system includes a print heater/preheater and a dryer, with temperature settings ranging from 30 to 55°C.

Connectivity and Power:
The device features Ethernet connectivity and an automatic sleep function. It operates on AC 100 to 240 V, consuming approximately 1,600 W during operation.

Environmental Conditions:
Recommended operating temperatures are between 15 to 32ºC, with humidity levels from 35 to 80%.

Additional Features:
The XC-540 integrates Roland's Print&Cut Technology and supports a wide range of media for high-quality output. It includes a stand, power cord, blade, and other accessories.

White Ink Considerations:
White ink requires shaking before use and periodic maintenance to prevent nozzle clogs. It is less durable than CMYK inks and may cause color shifts.

Performance:
The printer offers various throughput speeds, with high-speed settings reaching up to 41 m²/h for billboards and 19.2 m²/h for banners.

Innovative Technology:
The XC-540 utilizes Roland's 3-Dimensional Intelligent Pass Control, enhancing print quality by controlling ink firing to eliminate banding and ensure optimal ink density.

Powerful Color Management:
The printer is equipped with advanced RIP software for superior color management. The Max Impact™ preset provides rich, saturated colors for impactful outdoor signage.

Versatile Print & Cut Technology:
Roland's integrated Print&Cut Technology allows for the production of custom graphics in various shapes, enhancing the value of printed materials.

Productive Heating System:
A tri-heater system accelerates production by increasing media receptiveness, ensuring maximum ink brightness and fastness.

Precision Media Handling:
The printer features a heavy-duty media feed and tracking system, supporting large media rolls up to 30 kg, ensuring precision and stability during long production runs.

Advanced Ink Technology:
The ECO-SOL MAX ink offers exceptional color density, fast drying, and scratch resistance, available in 220cc or 440cc cartridges.

Efficient Maintenance:
The XC-540 includes an automated maintenance system, reducing the need for daily manual procedures, saving time and ink.

System Requirements:
Roland VersaWorks requires Windows Vista™ Ultimate or Business (32-bit), Windows® XP Professional SP2, or Windows® 2000 SP4, with a Pentium 4, 2.0 GHz CPU or faster, 1 GB RAM, and 40 GB free hard-disk space.

Environmental and Quality Standards:
The product is ISO 14001:2004 and ISO 9001:2000 certified, emphasizing environmental protection and quality improvement.

Operational Guidelines:
The length of printing or cutting is limited by the program. Specific media and environmental conditions are required for optimal performance.

Catalog excerpts

Throughput on Banner Throughput on Vinyl > Billboard 41 m > 2 /h (441.39 sqft/hr) > High SpeedStandard 1Standard 2 19.2 m > 2 /h (206.70 sqft/hr) > 2 High Speed 28 m > 2 /h (301.44 sqft/hr) 14 m /h (150.72 sqft/hr) > 2 Standard 14 m > 2 /h (150.72 sqft/hr) 9.3 m /h (100.12 sqft/hr) > High Quality 7m > 2 /h (75.36 sqft/hr) > High Quality 7m > 2 /h (75.36 sqft/hr) > Artistic 2.8 m > 2 /h (30.14 sqft/hr) > *Optionally available DU-540 blower and heater unit is required. * The take-up system does not support contour cutting or white ink printing applications.

Open the catalog to page 2

Roland֒s own advanced RIP software is packed with features for the ultimate in color management, ease of use and productivity. Select the Max Impact preset for the rich saturated colors and photorealistic images you need to create high-impact outdoor signs and banners. Rely on the Roland Color system for precision spot color matching with powerful reference tools that make communication with your clients easy. With VersaWorks, you are always up to date thanks to Roland@NET which oers more than 150 ICC proles and automatically updates your system with the latest software version. Roland Intelligent...

Open the catalog to page 4

A built-in tri-heater system increases media receptiveness for maximum ink brightness and fastness. An optionally available heater and blower set immediately bonds ink to media, at even the highest speeds. ECO-SOL MAX is Rolands most advanced eco-solvent ink, oering exceptional color density and gamut. ECO-SOL MAX ink is highly durable, fast drying, scratch resistant, easy to handle and virtually odor free. Choose from 220cc or 440cc cartridges. > Pre-heaterPrint-heaterOptional blower (DU-540)Optional heater (DU-540)Post-heater Rolands automated intelligent maintenance system comes standard on...

Open the catalog to page 5
