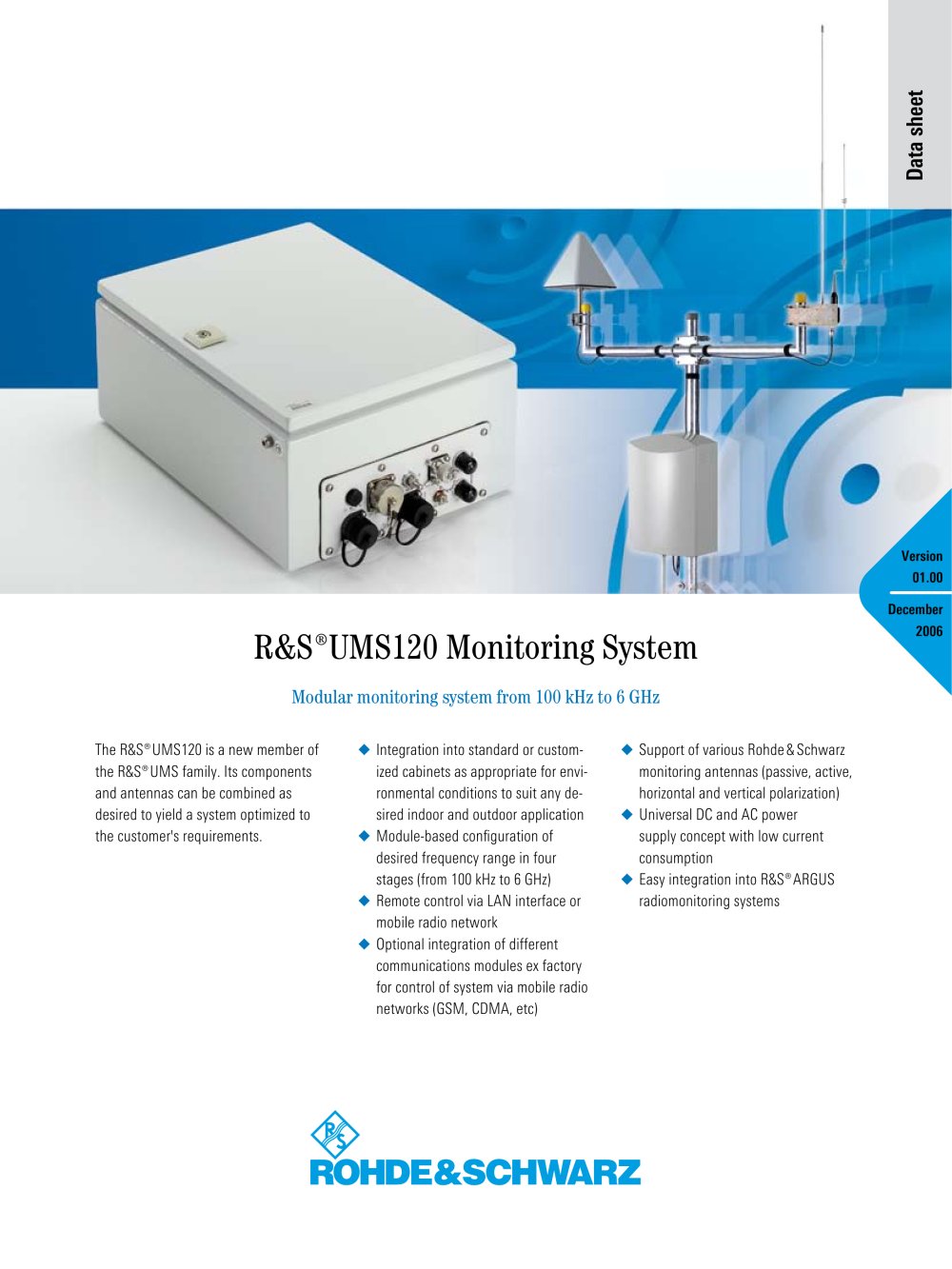

UMS120 Monitoring Syste

UMS120 Monitoring Syste

Product catalog summary

Overview: The UMS120 Monitoring System is a versatile and modular system designed for monitoring frequencies ranging from 100 kHz to 6 GHz. It is customizable for specific customer needs and suitable for both indoor and outdoor use.

Specifications: The system operates across four frequency stages and can be controlled remotely via LAN or mobile networks. It is compatible with Rohde & Schwarz antennas and features a universal power supply for AC and DC inputs.

Applications: The UMS120 is used for radiomonitoring large areas, detecting illegal signals, monitoring licensed transmitters, and conducting mobile signal searches. It can be integrated into vehicles for mobile operations.

Design and Installation: Components are housed in a secure, lockable box and can be installed in protective cabinets to endure temperatures from -40°C to +55°C. Various mounting accessories allow for custom configurations.

Functional Description: The system includes an RF frontend and a processor module with an embedded OS. It supports remote control via ARGUS-UMS software for efficient measurement and alarm handling.

Power Supply: The UMS120 operates on AC (100-240 V) and DC (10-30 V) power supplies, with low power consumption and additional heating for cold environments.

System Configuration: The system can use single or multiple antennas to cover the full frequency range, supporting both passive and active antennas with various polarization options.

Operation: Controlled remotely using ARGUS-UMS software, the system offers a user-friendly interface for complex measurement tasks, supporting both automatic and manual modes.

Specifications: Detailed specifications include frequency ranges, tuning resolution, RF input, sensitivity, and data transmission bandwidth. The system is robust, featuring IP54 protection and compliance with EMC and electrical safety standards.

Ordering Information: A comprehensive list of system components, software options, antennas, and accessories is provided, along with their order numbers.
