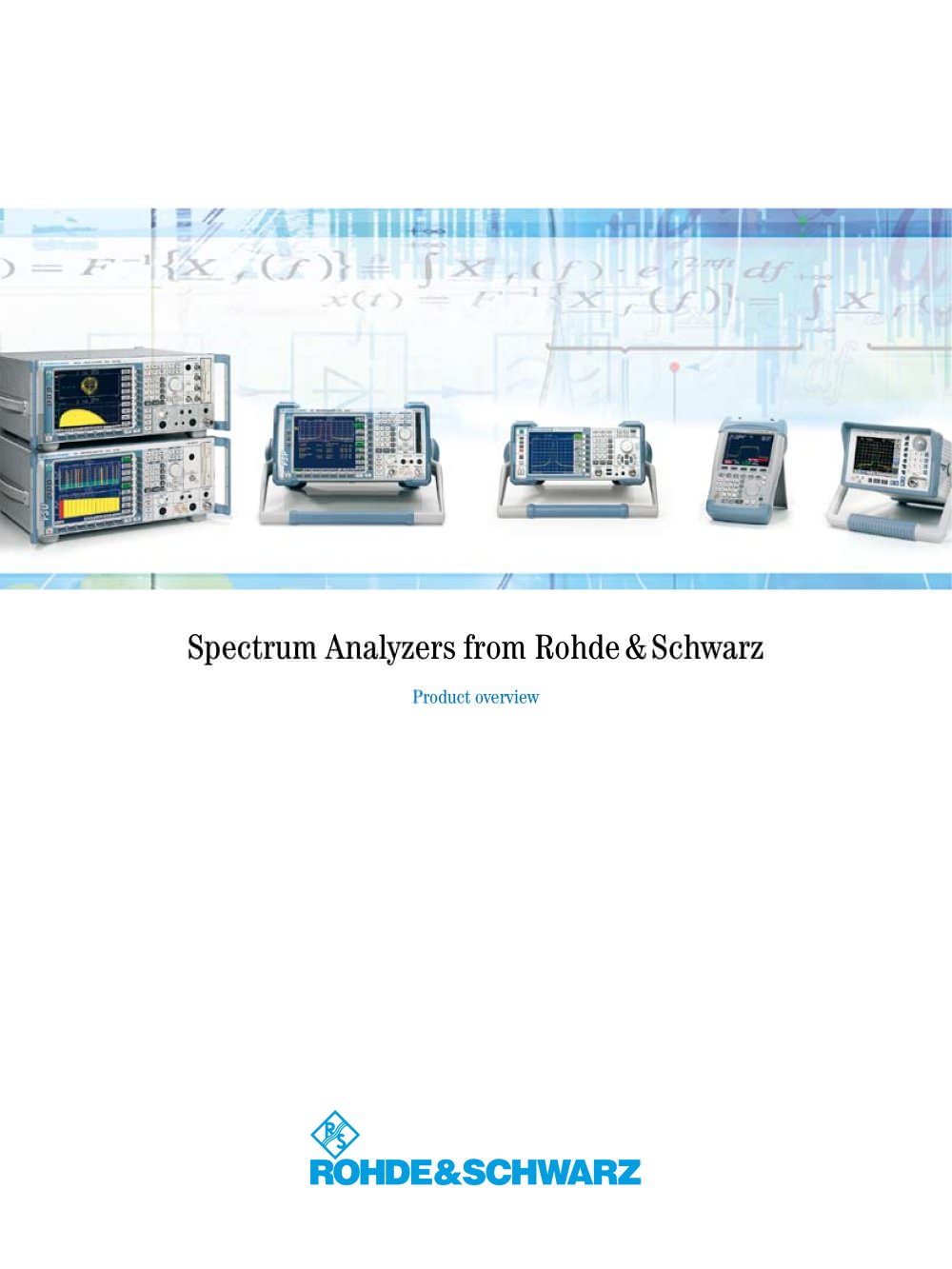

Spectrum Analyzers from Rohde & Schwarz Product overview
Open the catalog to page 1Common features Numerous shared functions The R&S®FSP, R&S®FSU and R&S^FSQ all feature the same user interface and remote control commands. This means that important, complex measurement routines are the same in all three fami- lies. Once you learn one instrument, you know them all. Programs, too, can in most cases be used unchanged. The functions supplied with the R&S^FSP, R&S®FSU and R&S^FSQ ♦ Fast ACP mode and List mode ♦ 23 predefined standards for adjacent channel power measurements ♦ Versatile measurement functions for channel power and adjacent chan- nel power, including for...
Open the catalog to page 2Smart spectrum analysis Spectrum Analyzer ¸FS300 The ¸FS300 is a compact and universal spectrum analyzer. At an affordable price, it offers properties previously found only in more expensive instruments. ◆ Frequency range up to 3 GHz ◆ Resolution bandwidths 200 Hz to 1 MHz ◆ Maximum input level +33 dBm (2 W) ◆ Remote control via USB ◆ Frequency counter with 1 Hz r esolution ◆ Phase noise –90 dBc (1 Hz) ◆ Compact case taking up only half a 19“ slot ◆ ¸FS 315: built-in tracking generator, also suitable for generating fixedfrequency signals Condensed data ¸FS300 Frequency range ¸FS315 9 kHz...
Open the catalog to page 3Handy spectrum analysis Spectrum Analyzer ¸FSH The ¸FSH is a robust, handheld spectrum analyzer designed for measurement tasks in the field. The 6 GHz model covers the WLAN frequency range. The functionality of the ¸FSH matches that of conventional lab instruments. ◆ Frequency ranges up to 3 GHz and 6 GHz ◆ Easy operation, low weight and s turdy design for field use ◆ Channel power measurements, burst power measurements in time domain ◆ RMS detector ◆ Quasi-peak detector ◆ AM/FM audio demodulator ◆ Tracking generator ◆ Distance-to-fault (DTF) measurements on cables ◆ VSWR measurements and...
Open the catalog to page 4Compact spectrum analysis Spectrum Analyzer R&S®FSL The R&S®FSL spectrum analyzer is ideal for a wide variety of applications in R&D, service and production where budget has priority over RF performance. The R&S®FSL's scope of applications in- cludes simple spectrum measurements as well as modulation analysis of WLAN signals. Its compact size, low weight and optional battery operation make the R&S®FSL ideal for portable and mobile use. Owing to its speed, wear-free elec- tronic attenuator and fast analysis rou- tines, the R&S®FSL excels in production Condensed data Frequency range Phase...
Open the catalog to page 5Spectrum analyzers from medium class ... Spectrum Analyzer R&SeFSP The R&S®FSP is far more than just the right analyzer for general applications in development, service and in the field if an extremely high dynamic range is not required. It is also the fastest RF spec- trum analyzer currently available, which makes it of particular interest for use in Integrated complex measurement and analysis routines such as the List mode (measurement on frequency lists) and the Fast ACP routine (ACP measure- ments in the time domain with channel filters) significantly speed up measure- ments. By using...
Open the catalog to page 6… to high-end Spectrum Analyzer ¸FSU The high-end Spectrum Analyzer ¸FSU differs from the ¸FSP primarily in that the ¸FSU offers a maximally expanded dynamic range and RF performance. This is evident in the phase noise data, the intermodulation characteristics and the 1 dB compression point. With a 1 dB compression point of +13 dBm, the ¸FSU can measure signals with a power of up to +5 dBm at an RF attenuation setting of 0 dB. If operated together with the application firmware packages for GSM/EDGE, 3GPP or CDMA2000®, the ¸FSU is the ideal analyzer for base station tests in development and...
Open the catalog to page 7Calibration of signal generators Measuring Receiver ¸FSMR The Measuring Receiver ¸FSMR has been specially designed to handle the measurement tasks involved in the calibration of signal generators and fixed or adjustable attenuators. The ¸FSMR combines the functionality of several instruments in one: ◆ Highly accurate level calibrator ◆ Modulation analyzer ◆ Audio analyzer with THD and SINAD measurement functionality ◆ Power meter for connection of ¸NRP power sensors ◆ High-performance spectrum analyzer Highlights ◆ Frequency range from 20 Hz to 3/26.5/50 GHz ◆ High level linearity of 0.005...
Open the catalog to page 8High-end signal analysis Signal Analyzer R&S®FSQ The Signal Analyzer R&S®FSQ is based R&S®FSU's excellent RF characteris- tics with the versatility of a broadband signal analyzer. The main difference is the digital signal analysis, which was developed for the large demodulation spectively, and provides additional DSP power as well as a 16 Msample l/Q Its large demodulation bandwidth makes the R&S®FSQ precisely the right WCDMA multicarrier signals, whether for determining the amplitude statistics by means of the CCDF measurement function or for measuring the code domain power. ♦ Spectrum...
Open the catalog to page 9Signal source analysis R&SeFSUP - phase noise tes- The R&S®FSUP is the only signal source analyzer covering the frequencies up to the microwave range in a single box. It combines the functionality of the high- end Spectrum Analyzer R&S®FSU with the advantages of a pure phase noise tester with very low-noise DC sources, thus enabling you to perform a wide range of measurements. For example, phase noise measurements of VCOs, DROs or XCOs, plus the determination of harmonics and spurious emissions are without external downconverter ♦ Up to 110 GHz with external mixers ♦ Maximum flexibility in...
Open the catalog to page 10Analysis in frequency range above 50 GHz Frequencies in the high GHz range still require the use of external harmonics mixers even today. Such mixers can provided that these are equipped with the option LO/IF Ports for External Mixers. Mixers available from Rohde&Schwarz cover the frequency range up to 110 GHz. If other suitable mixers are used, a range of up to 1.1 THz is possible. The use of external mixers results in unwanted intermodulation products that have to be determined and suppressed, which normally takes a lot of time. The analyzers of the Fi&S®FSP and Fi&S®FSU/FSQ families do...
