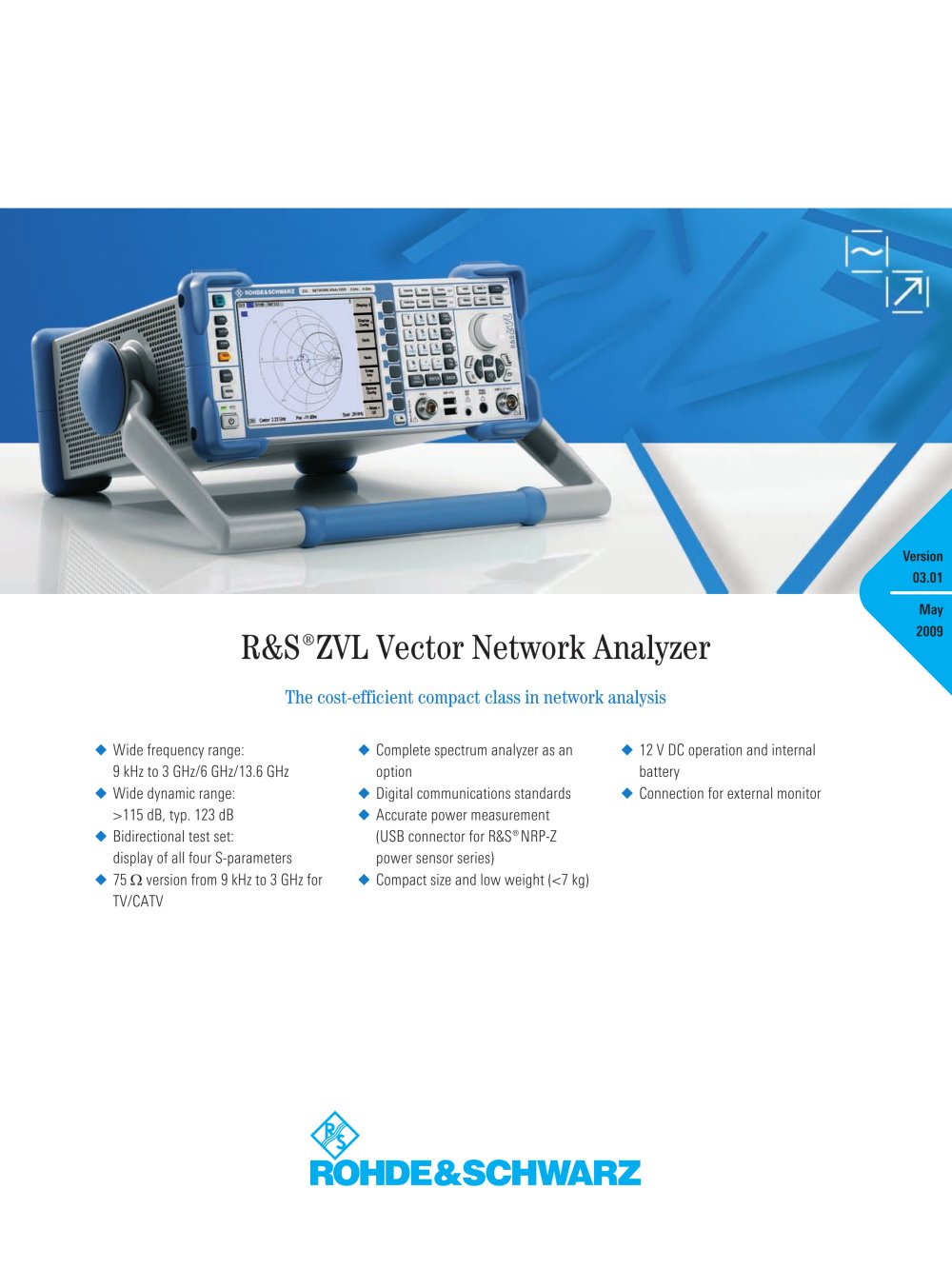

R&S@ZVL Vector Network Analyzer The cost-efficient compact class in network analysis ♦ Wide frequency range: ♦ Complete spectrum analyzer as an ♦ 12 V DC operation and internal ♦ Wide dynamic range: ♦ Digital communications standards ♦ Connection for external monitor >115 dB, typ. 123 dB ♦ Accurate power measurement ♦ Bidirectional test set: (USB connector for R&S®NRP-Z display of all four S-parameters power sensor series) ♦ 75 Q version from 9 kHz to 3 GHz for ♦ Compact size and low weight (<7 kg)

Versatile – compact – future-proof 2 ¸ZVL Vector Network Analyzer ZVL_bro_en_5213_8150_12_v0301.indd 2 11.05.2009 15:46:43

◆ Network and spectrum analysis in a single instrument ◆ Digital communications standards ◆ Bidirectional test set for displaying all four S-parameters ◆ ¸ZVL3-75: 75 W vector network analyzer for TV and CATV measurements ◆ Multitrace display for displaying all relevant parameters ◆ Distance-to-fault measurement for detecting cable faults ◆ Time domain analysis ◆ Operation with mouse or hardkeys/softkeys – convenient user interface with wizards and context menus ◆ Online help – context-sensitive with remote-control commands ◆ Undo/Redo softkey for reversing up to six preceding operating steps...

Versatile solution and future-proof network analyzer, and is therefore ideal for use in devel- opment, production, and service. It is the only instrument to combine the functions of a network analyzer, spectrum analyzer, and power meter in a single box, and will thus tremen- dously increase your work efficiency. The R&S®ZVL is ideal for lab applications where the measurement tasks vary frequently; it can be used to measure S-parameters as well as the output spectrum, ACP, and TOI without having to reconnect the device under test (DUT). With the R&S®ZVL, production lines can now be run even more...

All-in-one solution Wide scope of functions Offering excellent specifications and a wide range of functions at a favorable price, the ¸ZVL is every development engineer's ideal network analyzer. ◆ Wide dynamic range for characterizing filters of high rejection ◆ High power-handling capability of its receivers for analyzing active devices ◆ Integrated step attenuator for measurements on devices with up to 27 dBm output power ◆ Compact size for optimal utilization of the work space ◆ Simultaneous display of all relevant DUT parameters for fast tuning ◆ Possible connection of an ¸NRP-Z power sensor...

High throughput in production Dynamic range and speed for complex DUTs Large measurement bandwidths up to 500 kHz and fast synthesizers make for short measurement times and thus high throughput in manual tuning and automated production sequences. Due to the analyzer's wide dynamic range at large measurement bandwidths, this advantage in speed does not affect mea- surement accuracy. The R&S®ZVL is thus the ideal tool for measuring and tuning selective DUTs such as duplex filters for base stations. Sweep modes adapted to the task reduce measurement time Using different sweep modes, the R&S®ZVL...

Easy and intuitive operation User-friendly and error-tolerant even for complex measurement tasks The R&S®ZVL features the tried- and-tested operating concept of the R&S^ZVAand R&S^ZVB high-end network analyzers. ♦ Control by mouse or hardkeys/ softkeys (whichever you prefer) ♦ Dialogs and wizards for complex functions quickly guide you step by step to the required measurement ♦ Undo/Redo function for canceling up to six operating steps - including a preset, for reversing operating errors, and for fast switching between two ♦ Context-sensitive help including detailed description of the active...

option makes the R&S®ZVL a full-fea- tured spectrum analyzer by adding the R&S®FSL's scope of functions, including channel and adjacent channel power, oc- cupied bandwidth, CCDF measurement, detection of cable faults and connectors, which is important for antenna installa- All common cable types can be selected and are predefined with velocity factor R&S° ZVL-K3 time domain analysis The R&S®ZVL-K3 option displays discon- tinuities, reflection factors or impedance versus delay/length. It contains step and impulse response, lowpass/bandpass frequency spacing and gated S-param- The R&S®FSL-B6 option...

Network analysis R&S»ZVL Vector Network Analyzer 9

Spectrum analysis Full selection of detectors Harmonic distortion Noise measurement (noise marker) Phase noise measurement Channel and adjacent channel power measurement Fast adjacent channel power measurement Burst power measurement (time domain power) Frequency counter RMS, quasi peak, average, auto peak, pos. peak, neg. peak, sample Determination of third-order intercept point (IP3), automatic recognition of data carriers and determination of intermodulation sidebands Automatic determination of harmonic distortion Noise measurement in dBm (1 Hz) using the noise marker, taking into account...

Network analysis Spectrum analysis R&S'ZVL Vector Network Analyzer

Ordering information R&S»ZVL Vector Network Analyzer 12

2] Requires R&S®ZVL-K1 spectrum analysis option ' Requires R&S"NRP-Z power sensor with R&S"NRP-Z3/4orR&S"FSt-R5. 41 Requires R&S®FSf-R5 additional interfaces option 51 Video out, IF out, noise source control, AUX port, connector for R&S®NRP-Zxx power sensors R&S»ZVL Vector Network Analyzer
