R&S®RF Step Attenuators

R&S®RF Step Attenuators

Product catalog summary

Product Overview: The document is a technical flyer for the R&S®RSG RF Step Attenuator, a product by Rohde & Schwarz GmbH & Co. KG. It provides detailed specifications and operational guidelines for the device.

Specifications: The RF Step Attenuator operates with an impedance of 50 Ω and supports a frequency range from DC to 5.2 GHz. It offers an attenuation range from 0 dB to 139 dB in 1 dB steps. The VSWR is specified as <1.1 + 0.2 × frequency in GHz for DC to 3.5 GHz and <1.8 for 3.5 GHz to 5.2 GHz. Attenuation uncertainty varies with frequency, with specific values provided for different ranges.

Performance: The device can handle a maximum continuous wave power of 1 W and a pulse power of 200 W for pulses <10 µs. It supports a maximum voltage of 150 V for pulses <10 µs and has a life expectancy of over 5 million switching cycles. Switching time is less than 25 ms.

Environmental and Power Requirements: The operating and permissible temperature range is 0 °C to +55 °C, with a storage temperature range of –40 °C to +70 °C. The power supply requirements are 100/120/220/240 V ±10 %, 47 Hz to 440 Hz, consuming 20 W. The device complies with various safety and electromagnetic compatibility standards.

Mechanical Specifications: The device is designed to withstand shocks of 30 g for 11 ms and vibrations of 2 g from 5 Hz to 55 Hz. It measures 435 mm × 103 mm × 359 mm and weighs 5.5 kg.

Ordering Information: The RF Step Attenuator is designated as R&S®RSG with order number 1009.4505.02. A matching pad, R&S®RAM, is also available with order number 358.5414.02.

Additional Notes: Specifications are valid under specific conditions, including a 30-minute warm-up time and adherence to calibration cycles. Typical and nominal values are provided, with typical values verified during final testing.

Catalog excerpts

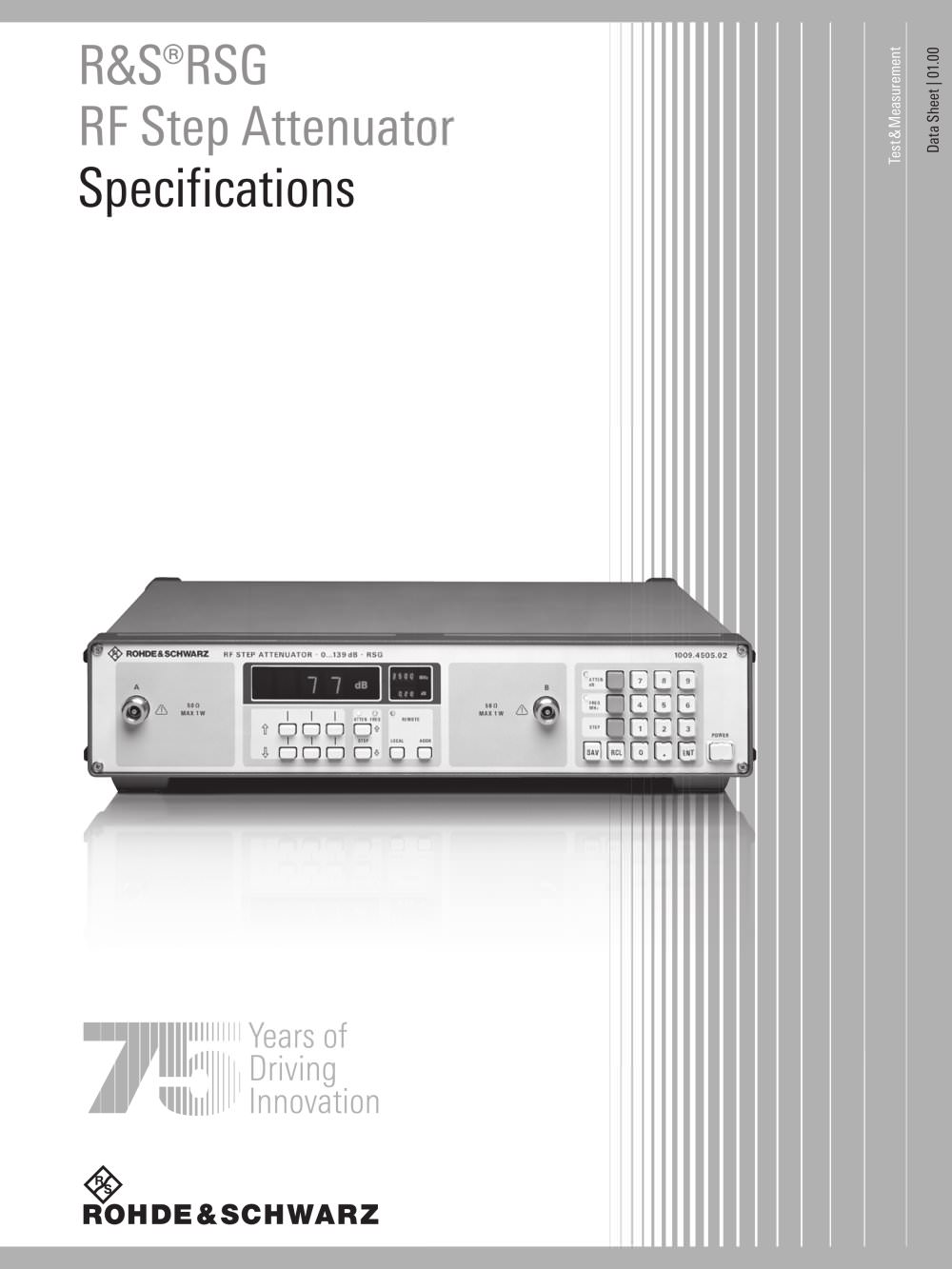

Product Flyer||01.00 Data Sheet 01.00 Test & Measurement Test & Measurement Test & Measurement R&S®RSG Blindtext schwarz RF Step Attenuator Headline 34 Punkt Specifications SubHead Blindtext 13 Pt mit Zeilenabstand 5,4 mm die erste Zeile ist immer am Grundlinienraster ausgerichtet. SubHead Blindtext 13 Pt mit Zeilenabstand Blindtext Molore Blindtext Molore feui exercil utatem dolobortio eummod modolut adit ing ercillutate feu faciliquat. Ut veraessisl euismod olortio commodi amconsenis at. Erat. Ut la faccum in volor augue dolore consequ ametuer iure doloreet venibh ex exero odiat. Duissed min ex er sequiscil inciliquatum ilit wis et, conse con volore min er sisl ullamet ummolor perat, sed eugait iriure venit amconsecte miniam, venim velit luptatis ex elestis nos et do dolut dolendiam, sissim zzrit nit aute delis non hent dunt nulpute exeriustie te faci bla feu feugait digna consequ amcommy nostrud et, si. Modolut adit ing ercillutate feu faciliquat. Ut veraessisl euismod olortio commodi amconsenis at. Erat. Ut la faccum in volor augue dolore consequ ametuer iure doloreet venibh ex exero odiat. Duissed min ex er sequiscil inciliquatum ilit wis et, conse con volore min er sisl ullamet ummolor perat, sed eugait iriure venit amconsecte miniam, venim velit luptatis ex elestis nos et do dolut dolendiam, sissim zzrit nit aute delis non hent dunt nulpute exeriustie te faci bla feu feugait digna consequ amcommy nostrud et, si. RSG_dat-sw_en_5213-9786-22_v0102.indd 1 17.06.2008 17:03:15

Open the catalog to page 1

Ordering information Specifications apply under the following conditions: 30 minutes warm-up time at ambient temperature, specified environmental conditions met, calibra- tion cycle adhered to, and all internal automatic adjustments performed. "Typical values" are designated with the abbreviation "typ." These values are verified during the final test but are not assured by Rohde & Schwarz. "Nominal values" are design parameters that are not assured by Rohde & Schwarz. These values are verified during product development but are not specifically tested during production Rohde & Schwarz equipment...
