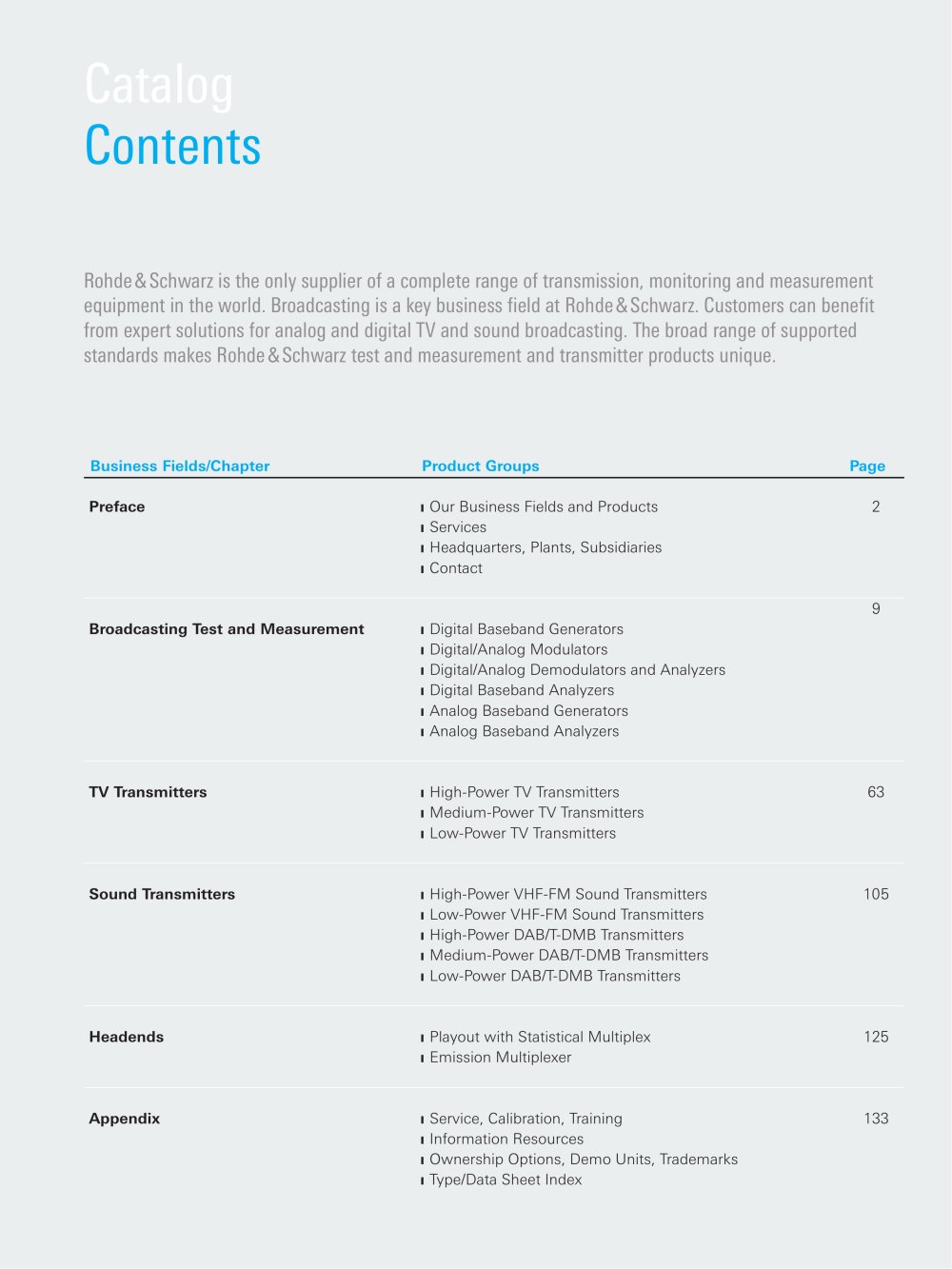

More information H www.rohde-schwarz.com 1 Company Profile Catalog. Contents Business Fields/Chapter Product Groups Page Preface Our Business Fields and ProductsJJ ServicesJJ Headquarters, Plants, SubsidiariesJJ ContactJJ 2 Broadcasting Test and Measurement Digital Baseband GeneratorsJJ Digital/Analog ModulatorsJJ Digital/Analog Demodulators and AnalyzersJJ Digital Baseband AnalyzersJJ Analog Baseband GeneratorsJJ Analog Baseband Analyzers JJ 9 TV Transmitters High-Power TV TransmittersJJ Medium-Power TV TransmittersJJ Low-Power TV Transmitters JJ 63 Sound Transmitters High-Power VHF-FM Sound TransmittersJJ Low-Power VHF-FM Sound TransmittersJJ High-Power DAB/T-DMB TransmittersJJ Medium-Power DAB/T-DMB TransmittersJJ Low-Power DAB/T-DMB Transmitters JJ 105 Headends Playout JJwith Statistical Multiplex Emission Multiplexer JJ 125 Appendix Service, Calibration, TrainingJJ Information ResourcesJJ Ownership Options, Demo Units, TrademarksJJ Type/Data Sheet IndexJJ 133 Rohde & Schwarz is the only supplier of a complete range of transmission, monitoring and measurement equipment in the world. Broadcasting is a key business field at Rohde & Schwarz. Customers can benefit from expert solutions for analog and digital TV and sound broadcasting. The broad range of supported standards makes Rohde & Schwarz test and measurement and transmitter products unique.

2 Rohde & Schwarz Test & Measurement H Catalog 2009/2010 Company Profile For 75 years, Rohde & Schwarz has stood for quality, precision and innovation in all fields of wireless communications. Test and JJmeasurement Secure communicationsJJ Radiomonitoring and radiolocationJJ BroadcastingJJ Present in over 70 countriesJJ Net revenue of € 1.4 billionJJ 7500 employeesJJ The privately owned company group has a global presence. It develops, produces and markets a wide range of electronic capital goods for industry, infrastructure operators and government agencies. Rohde & Schwarz numbers among the...

More information H www.rohde-schwarz.com 3 Company Profile Radiocommunications systems Security organizations and armed forces must be able to exchange information efficiently and securely – also in multinational operations. To ensure the rapid coordination of civil, governmental and military forces in times of crisis, Rohde & Schwarz supplies powerful, interoperable communications systems. Due to their modern encryption methods, the company‘s solutions fulfill the highest requirements of national and international security standards. Software-defined radios ensure the greatest possible flexibility...

4 Rohde & Schwarz Test & Measurement H Catalog 2009/2010 Company Profile Broadcasting TV viewers and radio listeners in more than 80 countries receive their programs via transmitters from Rohde & Schwarz. Our unique product portfolio including both broadcasting and measuring equipment acts as a catalyst for the worldwide development of digital broadcasting. The company’s market leadership in terrestrial TV transmitters, including for mobile TV, was further enhanced in the past year by the installation of Rohde & Schwarz equipment in all regions of the world. One of the primary success factors...

More information H www.rohde-schwarz.com 5 Company Profile Headquarters At company headquarters in Munich, around 2000 employees work in research and development, central sales and service, marketing and administration. Rohde & Schwarz GmbH & Co. KG Mühldorfstraße 15 D-81671 München Phone +49 89 41 29 0 Fax +49 89 41 29 121 64 [email protected] www.rohde-schwarz.com Plants Memmingen plant The plant in Memmingen is responsible for electronic module assembly, microwave engineering, final production, final inspection and delivery of most Rohde & Schwarz products. The plant‘s extensive know-how...

6 Rohde & Schwarz Test & Measurement H Catalog 2009/2010 Company Profile Vimperk plant The Vimperk plant is the only one of Rohde & Schwarz production facilities located outside Germany. The plant produces mechanical and electronic modules ranging from individual parts to complete systems. Rohde & Schwarz závod Vimperk, s.r.o. Location Spidrova 49 CZ-38501 Vimperk Phone +420 388 45 21 09 Fax +420 388 45 21 13 Subsidiaries Rohde & Schwarz Professional Mobile Radio GmbH Rohde & Schwarz Professional Mobile Radio GmbH, formerly R&S Bick Mobilfunk GmbH, specializes in the development and implementation...

More information H www.rohde-schwarz.com 7 Company Profile R&S Systems GmbH Graf-Zeppelin-Straße 18 D-51147 Köln Phone +49 2203 495 23 25 Fax +49 2203 495 23 36 [email protected] Arpège SAS The French company works closely with Munich headquarters to develop and implement customer-specific systems in the areas of satellite monitoring and lawful interception for government security agencies. Arpège SAS 309, avenue des Paluds ZI les Paluds II F-13685 Aubagne Cedex Phone +33 442 84 47 95 Fax +33 442 84 47 96 [email protected] Contact Corporate Communications Rohde & Schwarz GmbH...

. 8 Rohde & Schwarz Broadcasting H Catalog 2009

1 More information H www.rohde-schwarz.com 9 Broadcasting Test and Measurement Content Chapter 1 . Broadcasting Test and Measurement Type Designation Description Page Digital Baseband Generators R&S®DVSG Digital Video Signal Generator Wide variety of interfaces, test patterns and test signals 10 R&S®DV-ASC Advanced Stream Combiner™ Generating transport streams for replay on transport stream generators 13 R&S®DV-DVBH DVB-H Stream Library Testing of entire DVB-H signal processing chain (signaling, FEC, MPE, time slicing) 14 R&S®DV-H264 H.264 Stream Library Testing of H.264 SDTV and HDTV signal...

R&S®DVSG Digital Video Signal Generator The R&S®DVSG digital video signal generator is a universal platform for generating and playing compressed and uncompressed video and audio signals. It features transport stream (TS) interfaces as well as all common audio/video (AV) interfaces for the latest TV display technology. The R&S®DVSG is modular in design. Two functional units are available for generating uncompressed analog and digital audio and video signals with a wide variety of characteristics. The AV signal generator option enables the R&S®DVSG to generate video signals synthetically. This...
