Floorplan RXP 800

Floorplan RXP 800
1 / 1 PageView full catalog

Floorplan RXP 800

Product catalog summary

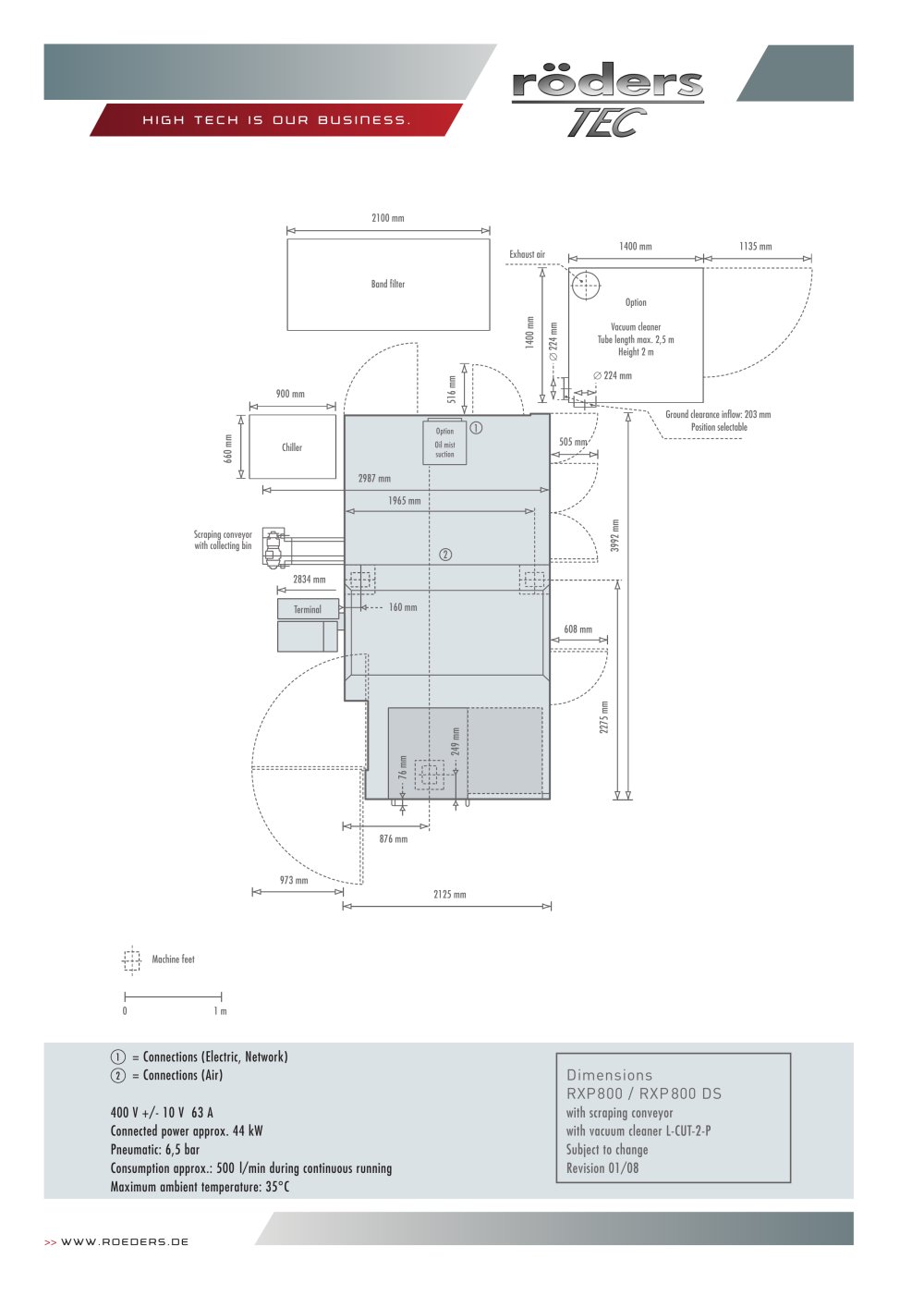

Machine Dimensions and Layout

The document provides detailed measurements for the RXP800 / RXP 800 DS machine equipped with a scraping conveyor and vacuum cleaner L-CUT-2-P. Key dimensions include lengths and diameters such as 2100 mm, 2275 mm, 249 mm, 3992 mm, and 516 mm, with specific component sizes like a tube length max of 2.5 m and a height of 2 m. Ground clearance for inflow is specified at 203 mm, and selectable positions are noted at 1400 mm and 1135 mm.

Components and Options

  • Band filter (optional)
  • Vacuum cleaner with a maximum tube length of 2.5 m
  • Scraping conveyor with collecting bin
  • Terminal (optional)
  • Oil mist suction system
  • Chiller unit

Connections and Power Requirements

The machine requires electrical and pneumatic connections:

  • Electrical: 400 V ± 10 V, 63 A, with connected power approximately 44 kW
  • Pneumatic: 6.5 bar pressure, with air consumption around 500 l/min during continuous operation

Operating Conditions and Limitations

  • Maximum ambient temperature: 35°C
  • Machine feet and layout dimensions are provided for installation planning

Additional Notes

The document mentions that the specifications are subject to change and references a revision date of 01/08. The company slogan "HIGH TECH IS OUR BUSINESS" is included, emphasizing the technological focus of the equipment.

See more

Catalog excerpts

Floorplan RXP 800-1

2100 mm 1400 mm1135 mm > Band filterOptionVacuum cleanerTube length max. 2,5 mHeight 2 mExhaust air Scraping conveyorwith collecting binTerminal 1400 mm2275 mm 249 mm76 mm 3992 mm 516 mm 224 mm ∅ ∅ 224 mm 900 mm > Ground clearance inflow: 203 mmPosition selectable OptionOil mistsuction Chiller 505 mm > 660 mm 2 2125 mm 608 mm 876 mm973 mm 2834 mm160 mm1965 mm2987 mm1 Machine feet01 m > 1
