Machine Dimensions and Components

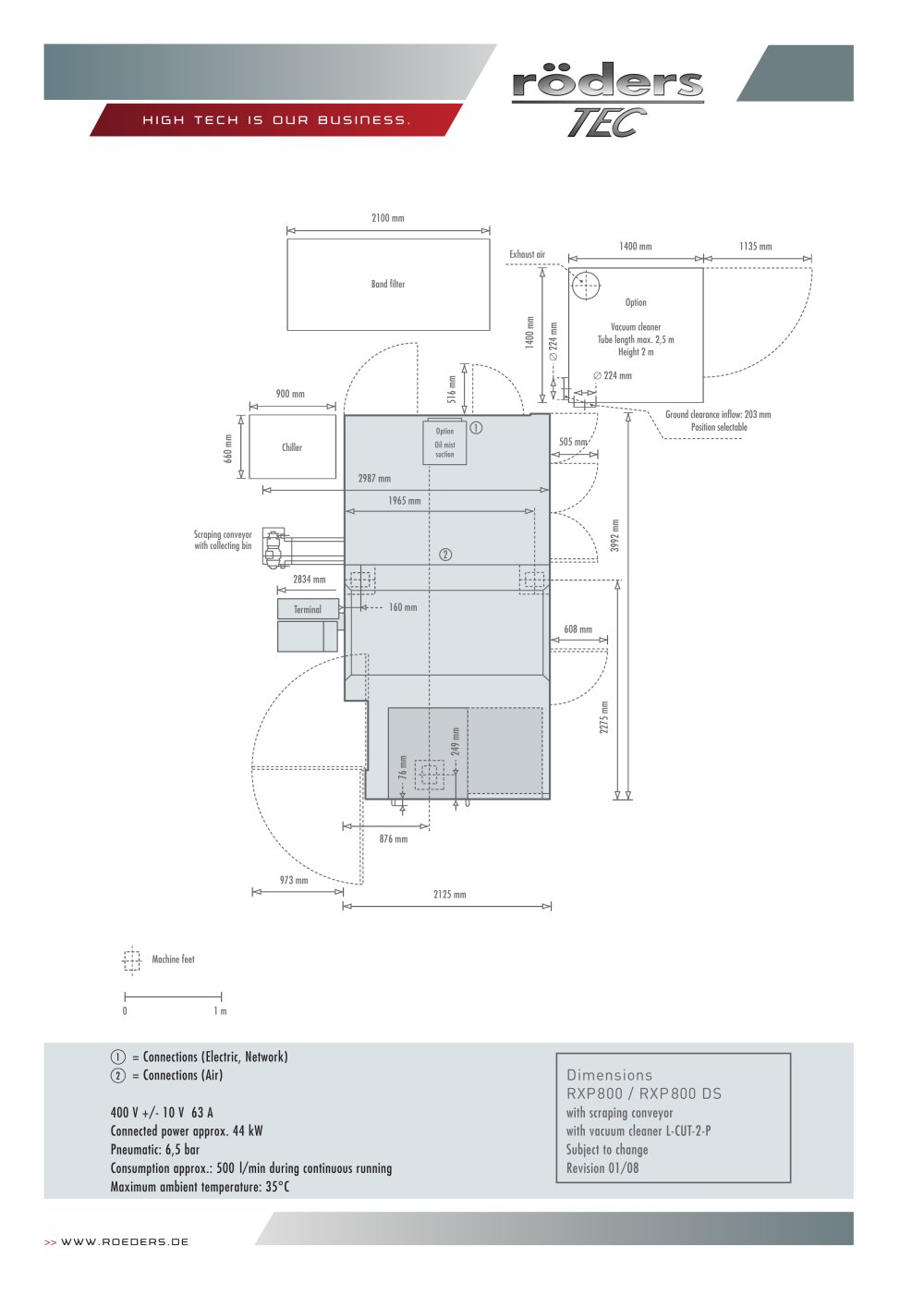

The document provides detailed measurements for the RXP800 / RXP 800 DS machine equipped with a scraping conveyor and vacuum cleaner L-CUT-2-P. Key dimensions include lengths and diameters such as 2100 mm, 2275 mm, 249 mm, 3992 mm, and 516 mm, with specific parts like the ground clearance inflow at 203 mm and selectable positions at 1400 mm and 1135 mm. Additional components include a band filter, scraping conveyor with collecting bin, terminal, oil mist suction, and chiller.

Connections and Power Specifications

The machine requires electrical and pneumatic connections: 400 V ± 10 V at 63 A, with a connected power of approximately 44 kW. Pneumatic supply needs to be at 6.5 bar with an air consumption of about 500 liters per minute during continuous operation. The maximum ambient temperature for operation is 35°C.

Operational Features and Options

Options include a vacuum cleaner with a maximum tube length of 2.5 meters and a height of 2 meters. The machine feet and other structural elements are indicated, with a focus on high-tech design and functionality. The document notes that specifications are subject to change and references revision 01/08.

Summary of Critical Parameters

• Electrical: 400 V ± 10 V, 63 A, approx. 44 kW power consumption
• Pneumatic: 6.5 bar pressure, 500 l/min air consumption continuous
• Maximum ambient temperature: 35°C
• Vacuum cleaner tube max length: 2.5 m, height: 2 m
• Ground clearance inflow: 203 mm
• Machine dimensions vary, with key lengths around 2 to 4 meters

The document emphasizes the integration of various components and connections necessary for the machine's operation, highlighting the importance of adhering to specified power and pneumatic requirements for optimal performance.
