Technical Specifications

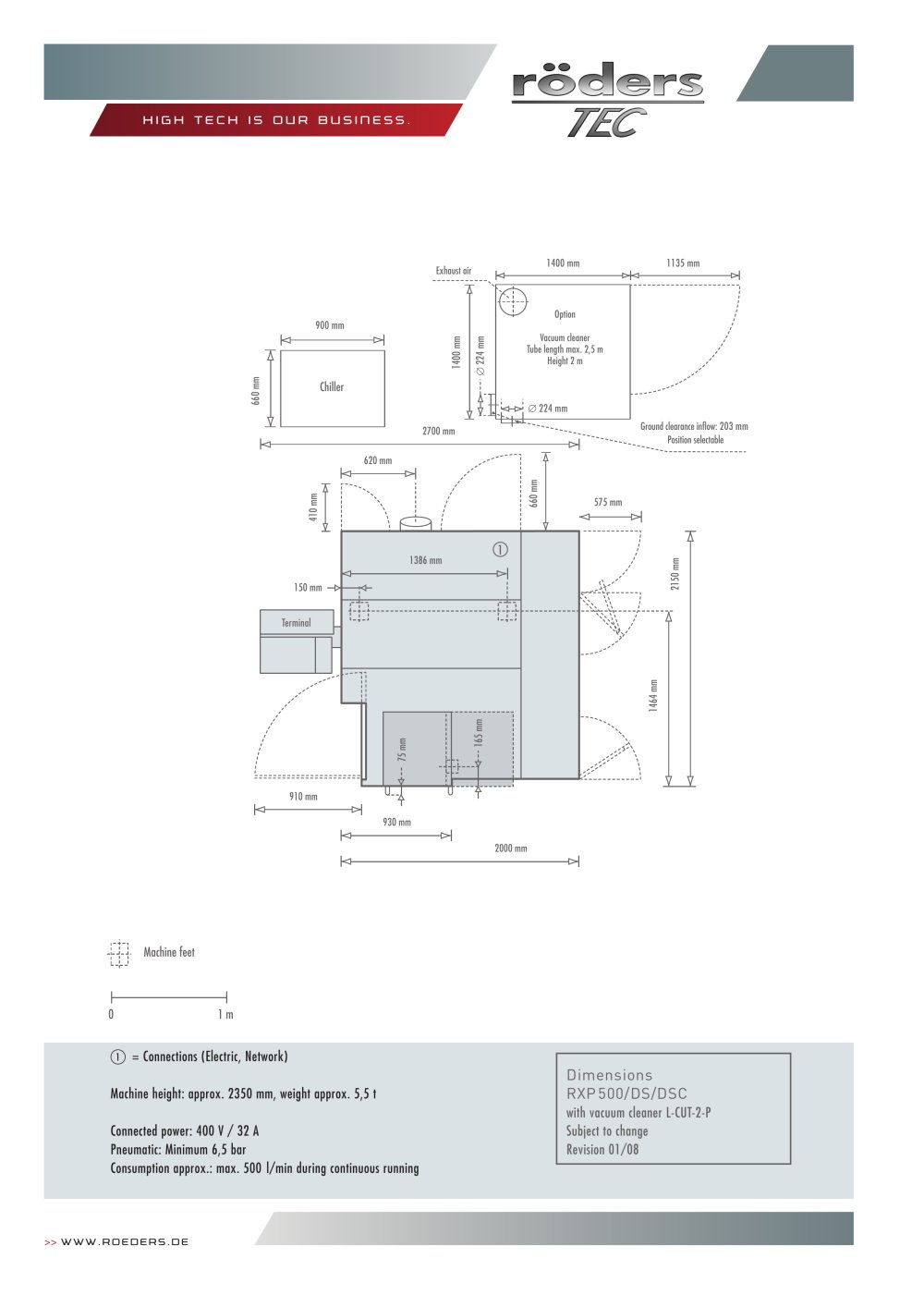

The document provides detailed dimensional and operational specifications for the RXP 500/DS/DSC terminal machine equipped with a vacuum cleaner L-CUT-2-P. Key dimensions include machine height approximately 2350 mm and weight around 5.5 tons. Various component measurements are given, such as terminal lengths and diameters (e.g., 75 mm, 165 mm, 410 mm, 660 mm, 1464 mm, 2150 mm, 575 mm, 910 mm, 1200 mm, 2700 mm, 930 mm, 1386 mm, 150 mm, 620 mm), and chiller dimensions (660 mm, 900 mm, 1400 mm, 1135 mm, 1400 mm). Ground clearance for inflow is specified at 203 mm.

Operational Parameters

• Connected power supply: 400 V / 32 A
• Pneumatic requirements: Minimum 6.5 bar pressure
• Air consumption: Approximately 500 liters per minute during continuous operation
• Vacuum cleaner tube length: Maximum 2.5 meters
• Vacuum cleaner height: 2 meters

Installation and Options

The position of the vacuum cleaner is selectable, allowing flexibility in installation. The machine is equipped with machine feet for stability. Connections include electric and network interfaces. The document notes that specifications are subject to change and references revision 01/08.

Summary

This technical sheet outlines the physical dimensions, power and pneumatic requirements, and optional equipment details for the RXP 500/DS/DSC terminal machine with vacuum cleaner. It emphasizes the importance of correct installation parameters such as ground clearance and connection specifications to ensure optimal operation.
