Technical Specifications

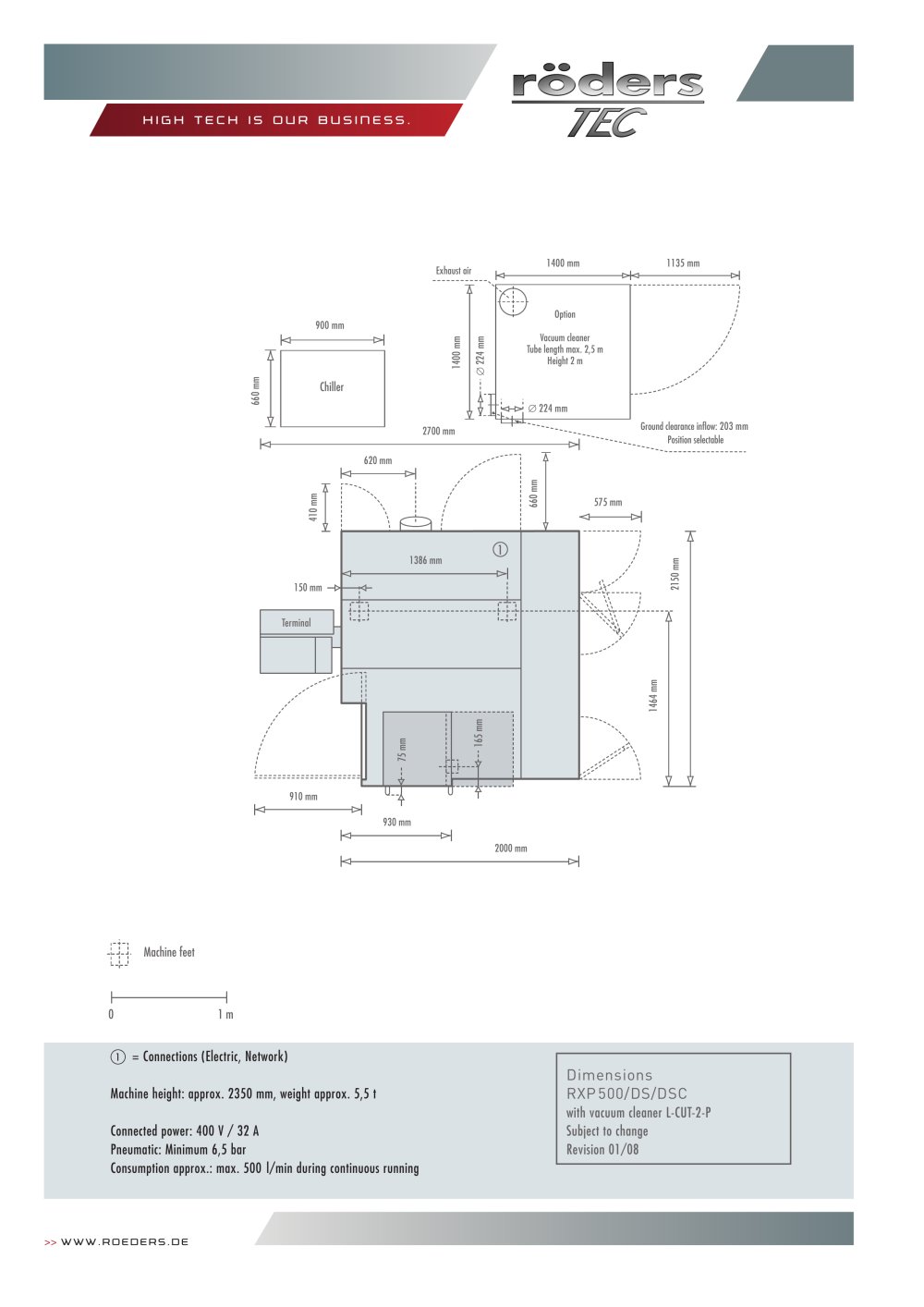

The document provides detailed dimensions and technical parameters for the RXP 500/DS/DSC terminal machine equipped with a vacuum cleaner L-CUT-2-P. Key measurements include various machine dimensions such as heights, widths, and depths ranging from 150 mm to 2750 mm, with specific parts like the chiller and exhaust air connections also dimensioned.

Machine Dimensions and Components

• Machine height: approximately 2350 mm
• Weight: approximately 5.5 tons
• Ground clearance inflow: 203 mm (position selectable)
• Vacuum cleaner tube length: maximum 2.5 m, height 2 m
• Chiller dimensions: 660 mm height, 900 mm width, 1400 mm length
• Exhaust air connection diameter: 224 mm

Power and Pneumatic Requirements

• Connected power supply: 400 V / 32 A
• Pneumatic pressure: minimum 6.5 bar
• Air consumption: approximately 500 liters per minute during continuous operation

Additional Notes

The document mentions that the machine feet height is 0.1 m and that connections include electric and network interfaces. The data is subject to change and the revision date is January 2008.

Summary

This technical sheet outlines the physical dimensions, power, pneumatic requirements, and optional equipment for the RXP 500/DS/DSC terminal machine. It emphasizes the importance of correct installation parameters such as ground clearance and connection specifications to ensure optimal operation.
