Technical Specifications

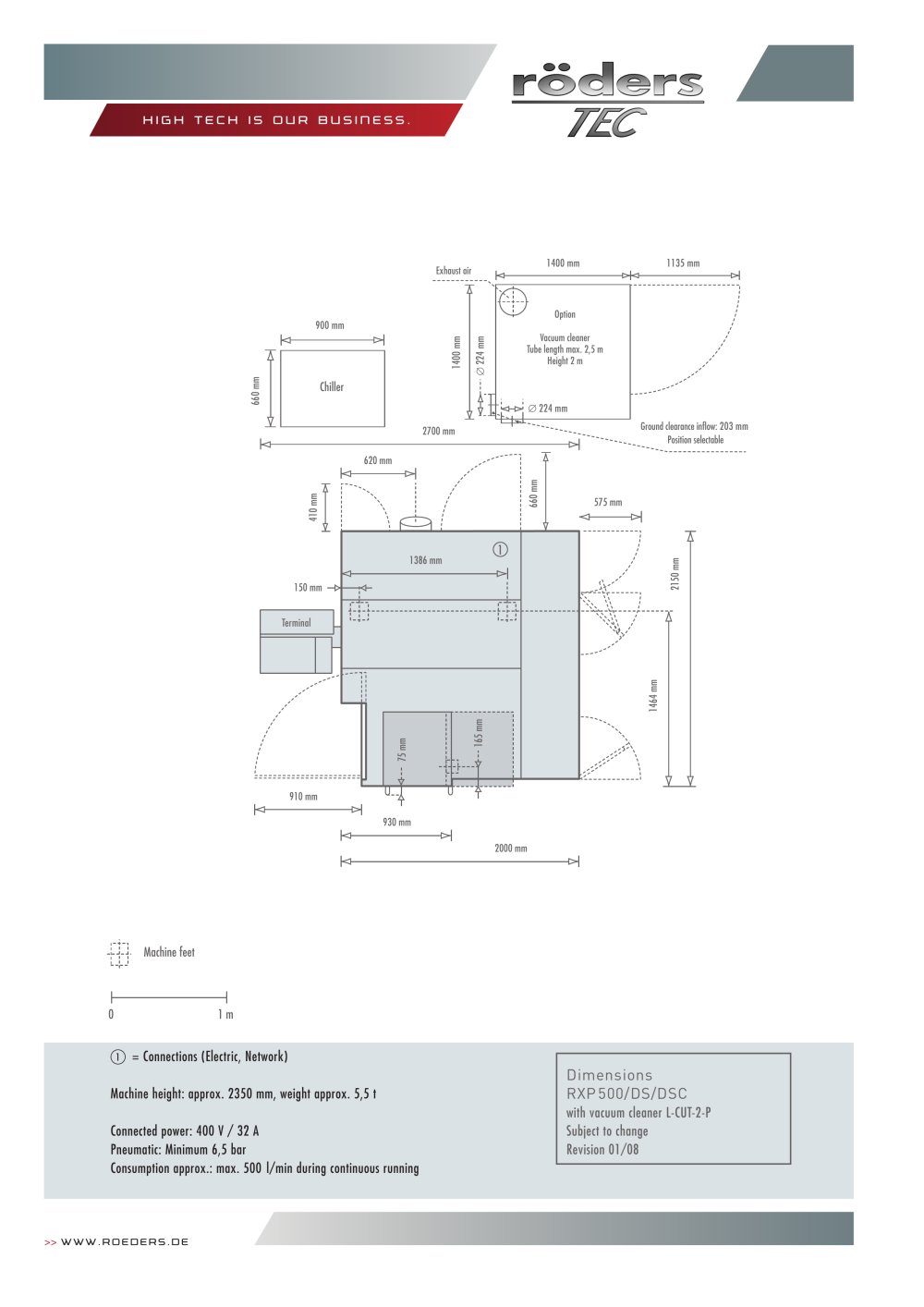

The document provides detailed dimensions and technical parameters for the RXP 500/DS/DSC terminal machine equipped with a vacuum cleaner L-CUT-2-P. Key dimensions include machine height approximately 2350 mm and weight around 5.5 tons. Various component measurements are given, such as terminal lengths and diameters (e.g., 75 mm, 165 mm, 410 mm, 660 mm, 1464 mm, 2150 mm, 575 mm, 910 mm, 1200 mm, 2700 mm, 930 mm, 1386 mm, 150 mm, 620 mm), and chiller dimensions (660 mm, 900 mm, 1400 mm, 1135 mm, 1400 mm). The ground clearance for inflow is specified as 203 mm, with position selectable options.

Power and Pneumatic Requirements

The machine requires a connected power supply of 400 V / 32 A. Pneumatic supply must be at least 6.5 bar, with an air consumption of approximately 500 liters per minute during continuous operation.

Vacuum Cleaner Specifications

The vacuum cleaner option includes a maximum tube length of 2.5 meters and a height of 2 meters. Exhaust air connections and other interfaces are indicated but not detailed.

Additional Notes

The document mentions machine feet and connection points for electric and network interfaces. It also notes that the specifications are subject to change and references a revision date of 01/08.

Summary of Critical Parameters

• Machine height: ~2350 mm
• Weight: ~5.5 tons
• Power supply: 400 V / 32 A
• Pneumatic pressure: minimum 6.5 bar
• Air consumption: max 500 l/min continuous
• Vacuum cleaner tube max length: 2.5 m
• Ground clearance inflow: 203 mm

This information is essential for installation, operation, and maintenance planning of the RXP 500/DS/DSC terminal machine with vacuum cleaner option.
